Portable Core Drill Rig
◼ Canadian Christensen through-hole chuck power head with advanced performance, powerful torque, and convenient handling of 3m drill rods.
◼ Advanced hydraulic pilot control system (internationally advanced, industry-exclusive) enables intelligent constant-pressure drilling with precise control and flexible operation for effortless hole-making.
◼ Sliding feed beam rapidly contacts the working surface, enhancing operational stability.

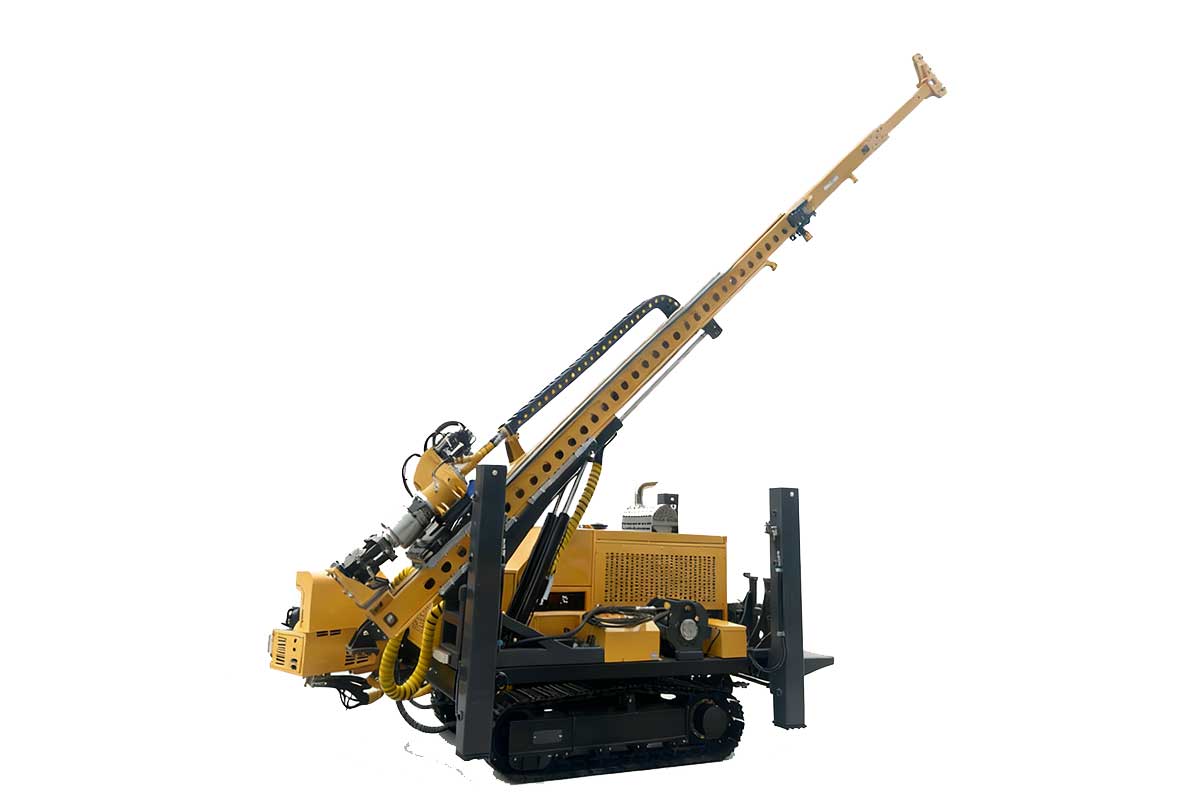

◼ Telescopic mast facilitates easy erection and flexible handling of long drill pipes and core drilling tools; hydraulic
leveling outriggers facilitate precise positioning adjustments.
◼ Nitrogen spring drill pipe clamps enable rapid pipe clamping, enhancing reliability and simplifying operations.
◼ Powerful drive system ensures high-efficiency drilling across diverse environments.
◼ Wireless remote control (optional) enhances driller mobility and flexibility.
Product Introduction

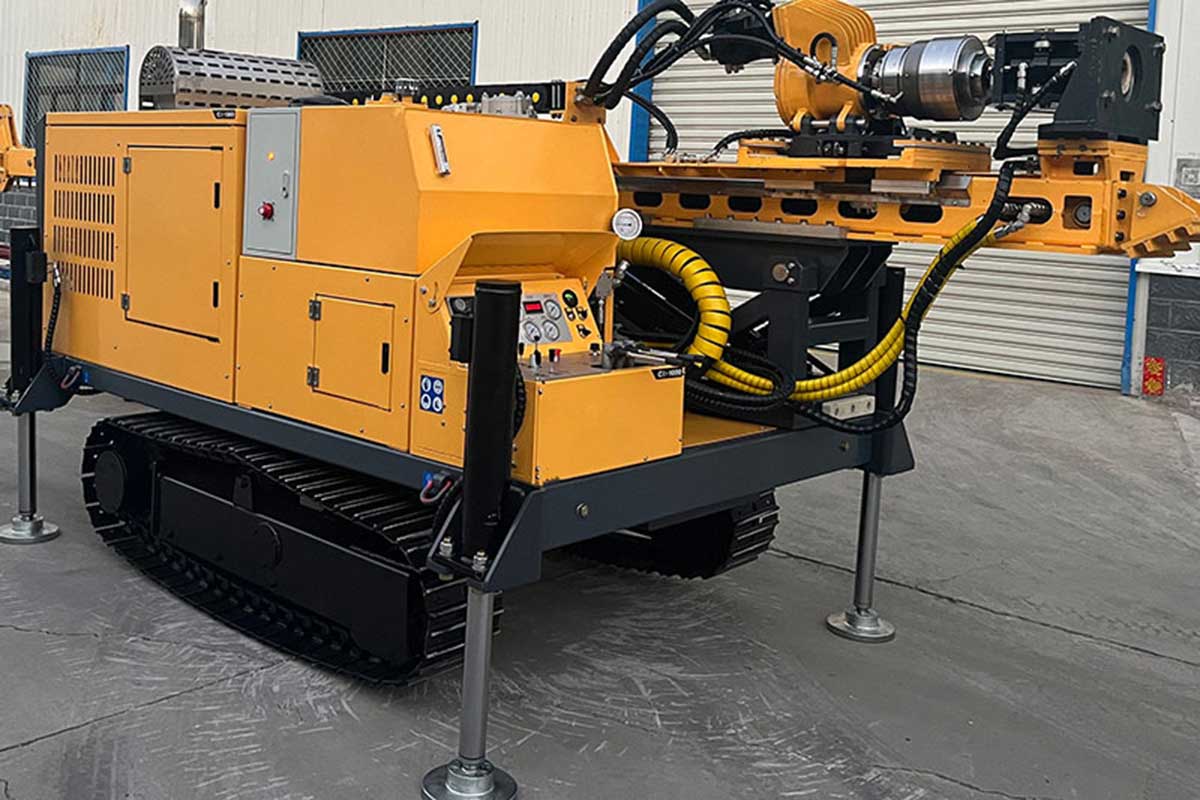

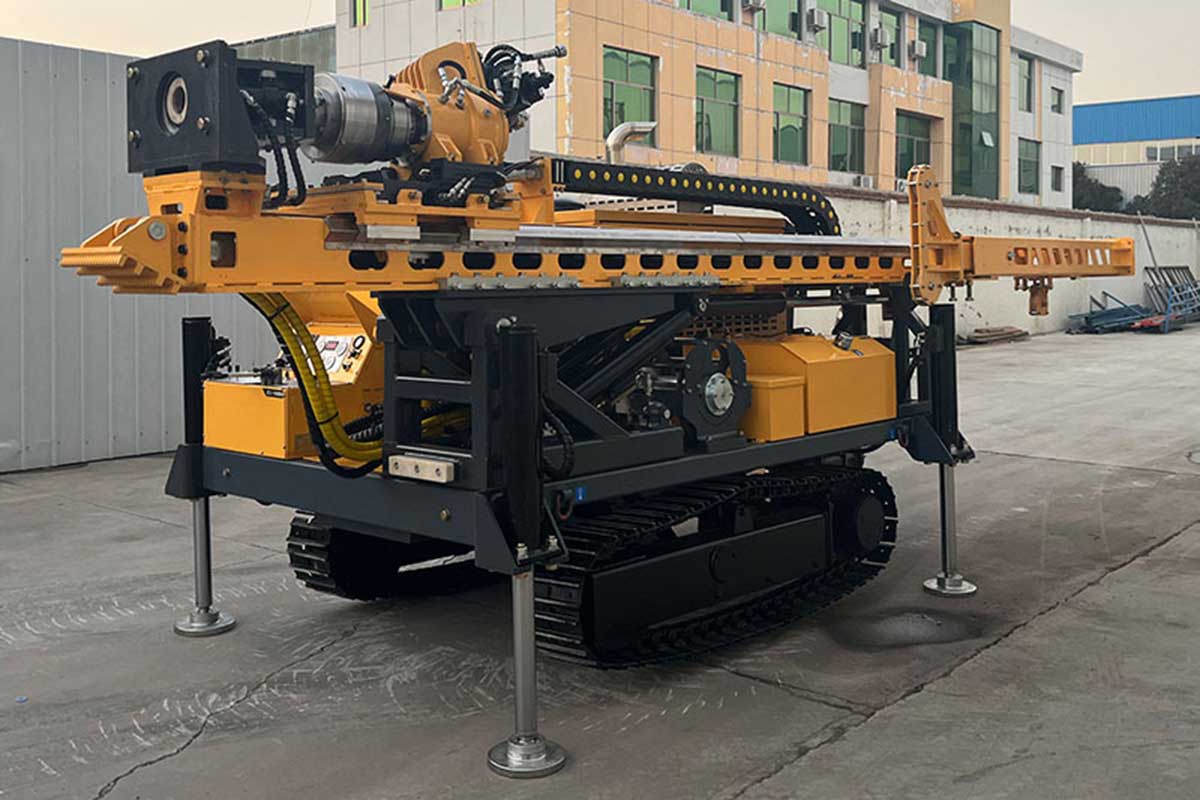

The CX1000 Crawler-Type Core Drilling Rig series drilling rigs integrate a high-precision hydraulic control system, ideally suited for surface core drilling of medium and deep holes. They offer convenient and flexible operation, deliver exceptional productivity, and boast a broad range of applications.
For medium-shallow hole configurations, the rigs come with custom-engineered top drive power heads, ensuring superior flexibility and ease of use. Meanwhile, the medium and deep hole models incorporate Christensen chuck powerheads, Funk gearboxes, and cutting-edge nitrogen spring grippers—guaranteeing precise control and dependable performance.

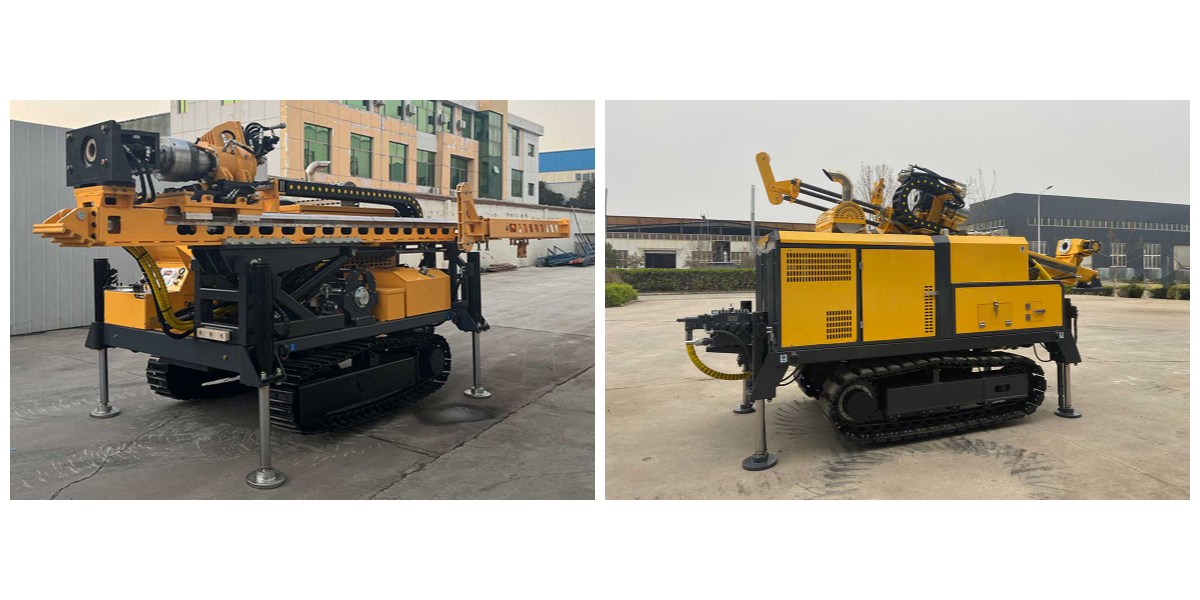

All models are available with either crawler tracks or wheeled chassis, making them well-suited for mobility and transportation across diverse terrain environments.
Product Details

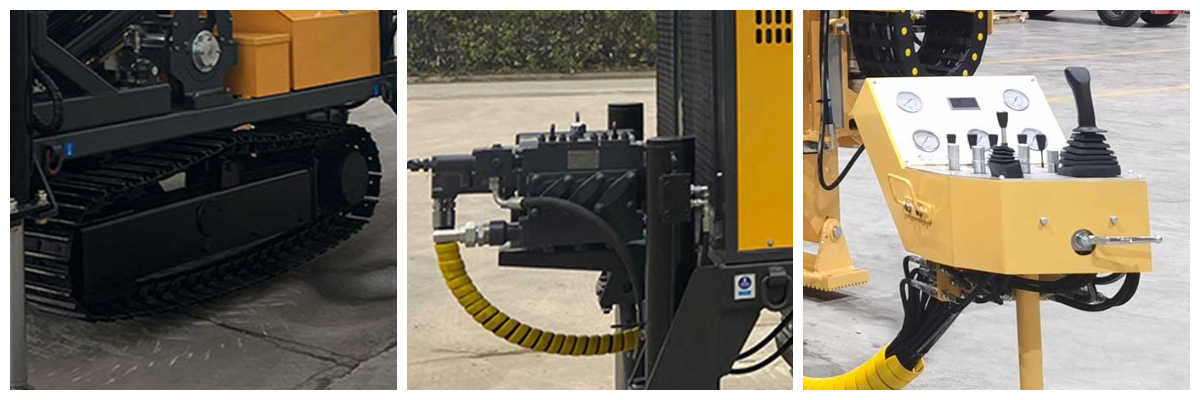

01. Centralized Console
The instrument panel, indicator lights, control levers, and buttons are consolidated into a centralized console, which significantly enhances operational efficiency and safety.
02. Flexible Variable Motor
By adjusting its own displacement, the variable motor enables stepless regulation of output speed while maintaining stable output torque within a specific range—allowing optimal power matching for the hydraulic system.
03. Superior Heat Dissipation & Enhanced Stability
Equipped with an independently developed high-efficiency radiator featuring a finned heat dissipation design, the system achieves rapid heat dissipation through expanded heat dissipation surface area and integrated forced air cooling, water cooling, and oil cooling technologies.
Product Specifications
| Drill Type | Top Drive |
| Depth Capacity（N） | 1000 m |
| Diesel Engine Power | 140 KW |
| Feed Stroke | 2.5 m |
| Maximum Torque | 2400 Nm |
| Hoisting Force | 115 KN |
| Max Rod Diameter | 117 mm |
| Suitable Rod Sizes | 1.5m /2 m |
| Overall Weight | 8500 Kg |
