Crawler Type Core Drilling Rig
• Telescopic mast - Enables rapid transition from transport to operational mode.
• Hydraulic support cylinders - Facilitate swift rig setup and precise positioning for multi-angle drilling operations.
• Top drive power head - Compact design delivers superior mechanical transmission efficiency and operational reliability.
• Hydraulic clamp - Fast-acting with responsive operation, equipped with pressure loss protection for enhanced safety.
• Remote-controlled crawler tracks - Deliver high maneuverability, ensuring operator safety and comfortable control.
Product Introduction
CX1600 High Quality Crawler-Type Core Drilling Rig A full hydraulic drilling rig stands as a high-efficiency, versatile drilling equipment, primarily used for drilling water wells, irrigation wells, ground-source heat pump wells, and boreholes for other applications—with particular suitability for well projects in mountainous areas and rock formations. Capable of drilling through various geological layers, the rig boasts a maximum hole diameter of up to 1200mm.
1.The rig incorporates advanced hydraulic technology, fitted with high-torque hydraulic motors and a large-diameter hydraulic cylinder for propulsion, while branded engines provide power for the hydraulic system.
2.A dual air filter configuration and optimized air intake design extends the engine’s service life. Its unique pump design simplifies maintenance processes and lowers maintenance costs.
3.Equipped with a centralized hydraulic control panel, it offers intuitive and easy operation.
4.Adopting an independent modular design, the high cylinder-leg rig can be effortlessly mounted on a truck, significantly enhancing its mobility.
Product Details
01. Hydraulic Chuck with High Work Efficiency
Enables continuous power transmission, effectively boosting operational efficiency.
02. Operation Console
Equipped with centralized control levers for operator ease of use, while the pressure gauge provides clear insights into downhole conditions.

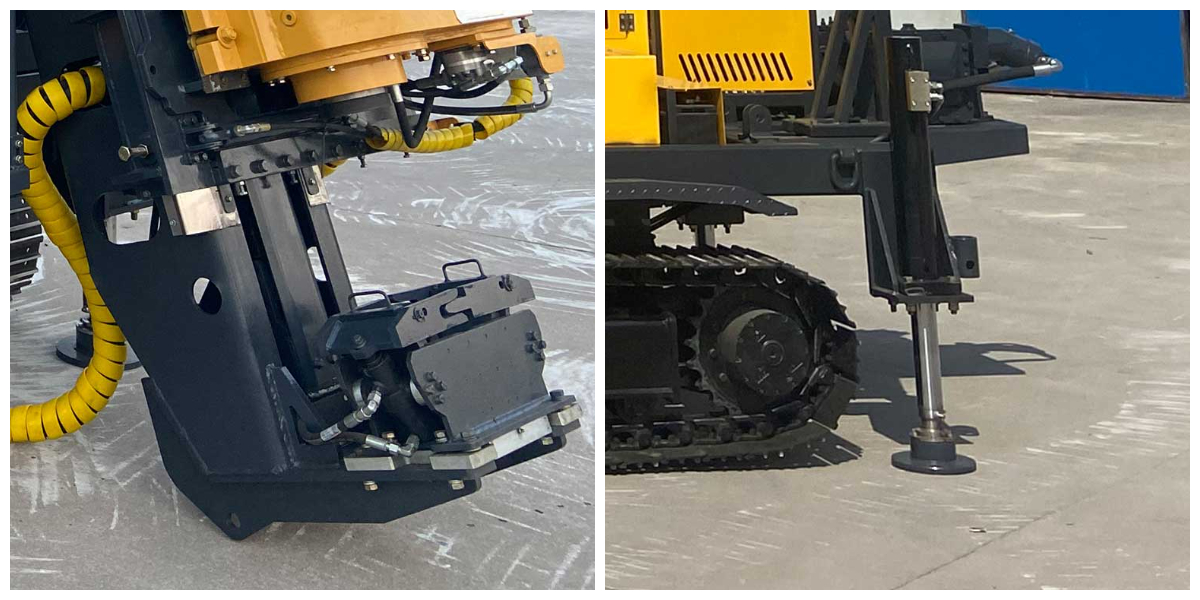

03. Hydraulic Support Leg
Facilitates precise leveling and stable positioning of the drilling rig body.
04. Winch
Regulates the hoisting and lowering of drilling tools through the integrated control console.
05. ENGINE
Powered by high-quality branded engines, it delivers robust performance—maintaining stable operation under heavy loads, extending service life, and achieving an optimal balance between environmental friendliness and power output.
Product Specifications
| Drill Type | Chuck |
| Depth Capacity（N） | 1350 m |
| Diesel Engine Power | 153 KW |
| Feed Stroke | 3.5 m |
| Maximum Torque | 6800 Nm |
| Hoisting Force | 140 KN |
| Max Rod Diameter | 142 mm |
| Suitable Rod Sizes | 3m /6 m |
| Overall Weight | 13000 Kg |
· Exceptional Drilling Efficiency: Boasting a high-torque engine and state-of-the-art hydraulic system, the CX1600 achieves outstanding drilling speed and precision, cutting down on operating hours and enhancing overall productivity.
· Wide-Ranging Versatility: Suitable for drilling across diverse formations—such as hard rock and loose sediment—it proves ideal for a broad spectrum of projects, spanning mining operations to geotechnical investigations.
· Compact & Easy to Transport: Engineered for convenient transport and rapid deployment, the CX1600 can be utilized in remote and hard-to-reach locations without sacrificing operational performance.
· Intuitive Operation: Equipped with an easy-to-use control panel and automated capabilities, the CX1600 reduces operator fatigue and maximizes work efficiency, guaranteeing seamless and consistent drilling performance.
· Advanced Safety Capabilities: The drilling rig is fitted with cutting-edge safety features including overload protection devices and emergency shutdown systems, securing a safe working environment for personnel.
