Core Drilling Rig Cheap Price
Full hydraulic drilling rig is an efficient multi-functional drilling equipment, which is mainly applied in drilling wells, irrigation wells, ground source heating pump wells and boreholes for other purposes, especially for mountain and rock formation well projects. The rig can be drill in different layers, and the maximum hole diameter is up to 1200mm.
1, The rig adopts new hydraulic technology, equipped with high torque hydraulic motors and a large-diameter hydraulic cylinder for propulsion, And branded engines supply power the hydraulic system;
2, The connection of two air filter and air intake design prolongs the engine’s life. Unique pump design facilitate maintenanceand reduce maintenance costs.
3,Centralized hydraulic control console, easy to operate.
4, Independent module design, high cylinder leg rig can be easily mounted on a truck, increase its mobility.
Product Introduction

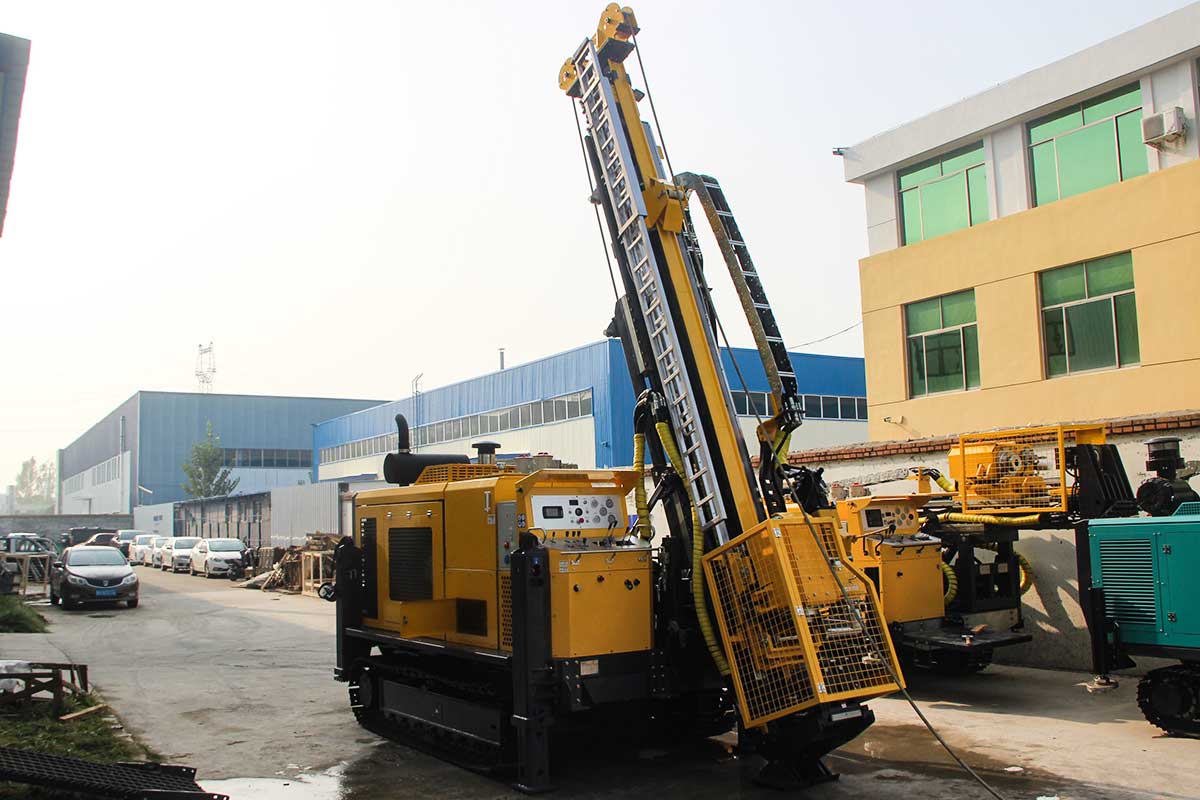

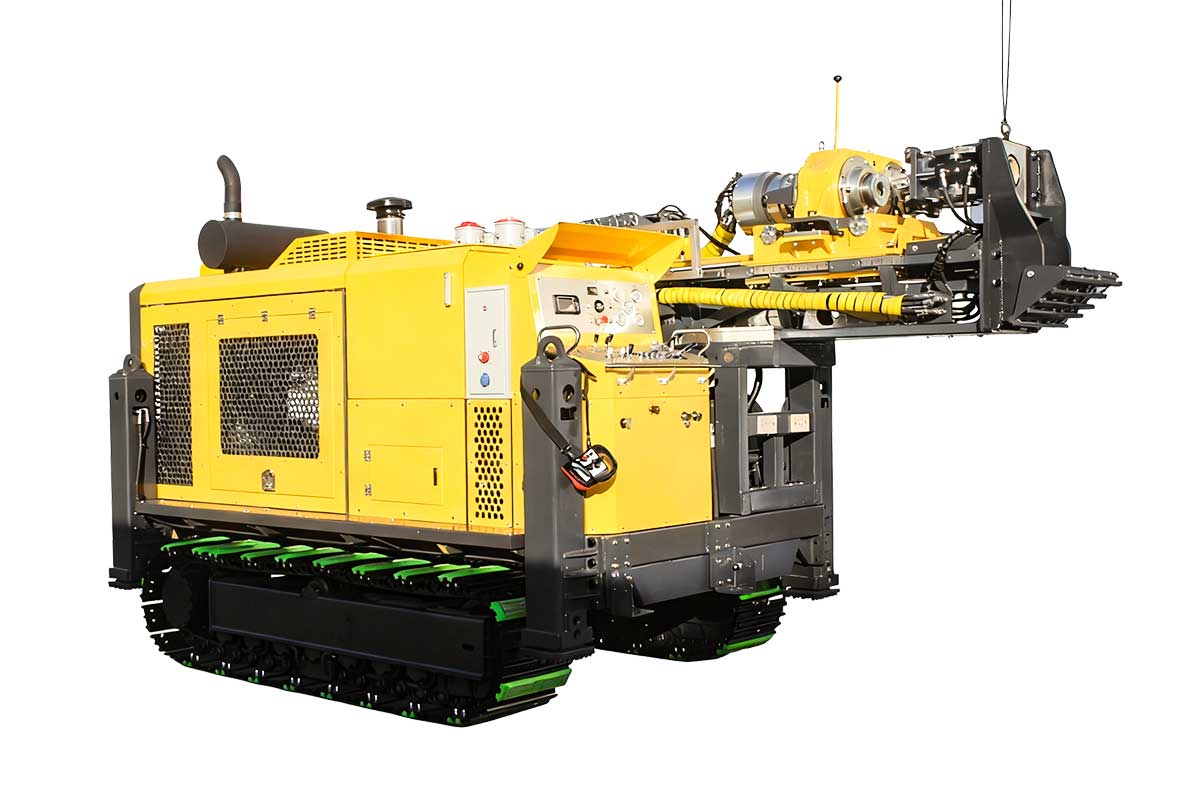

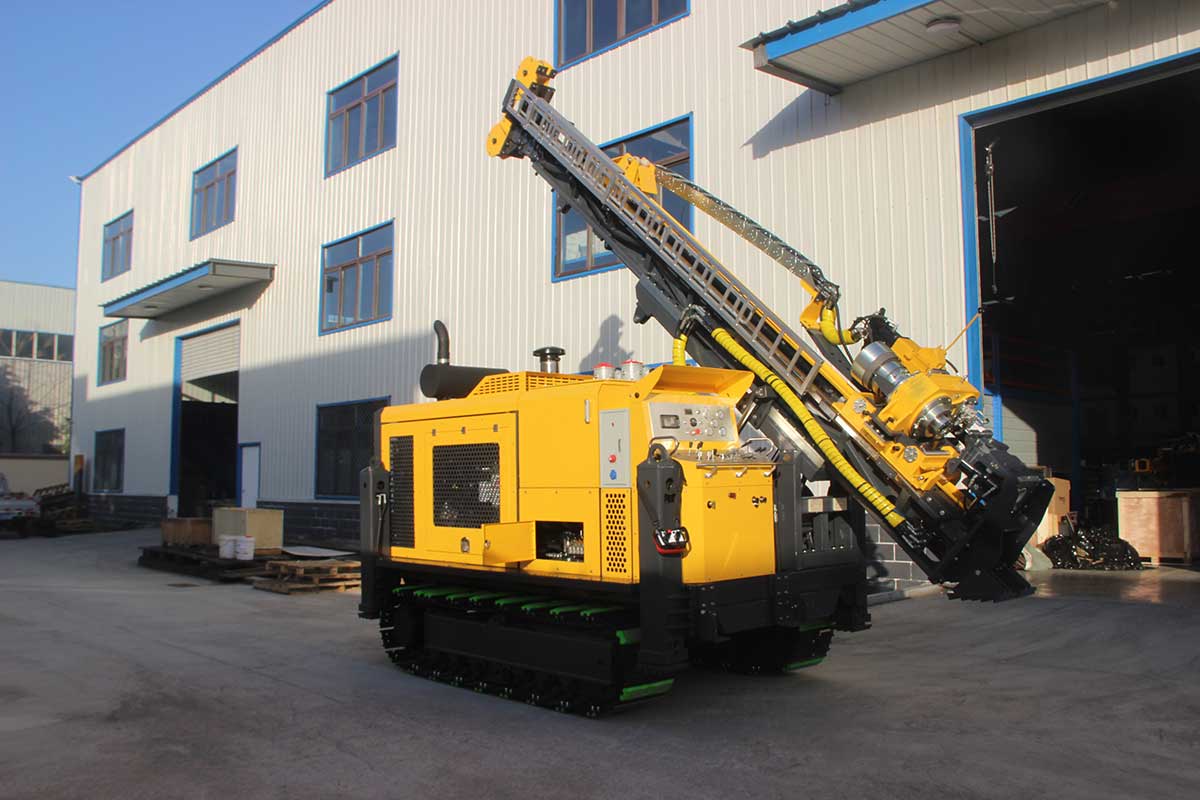

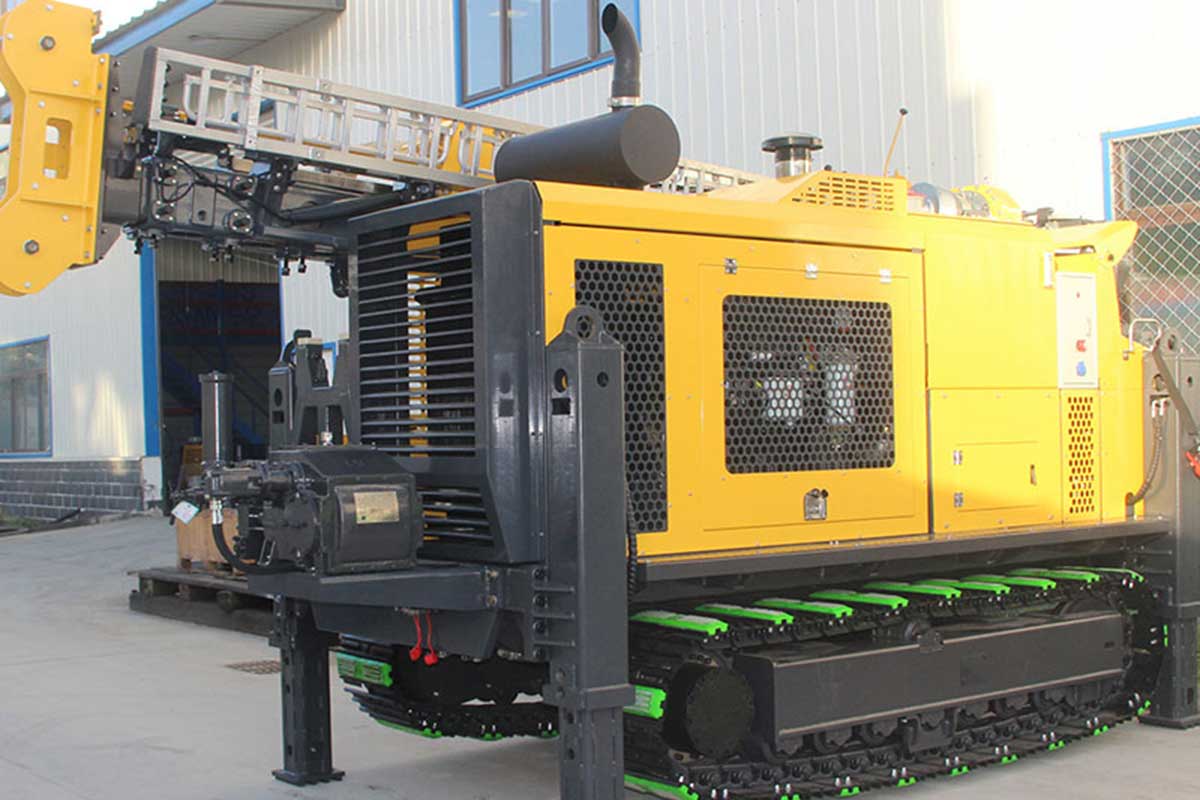

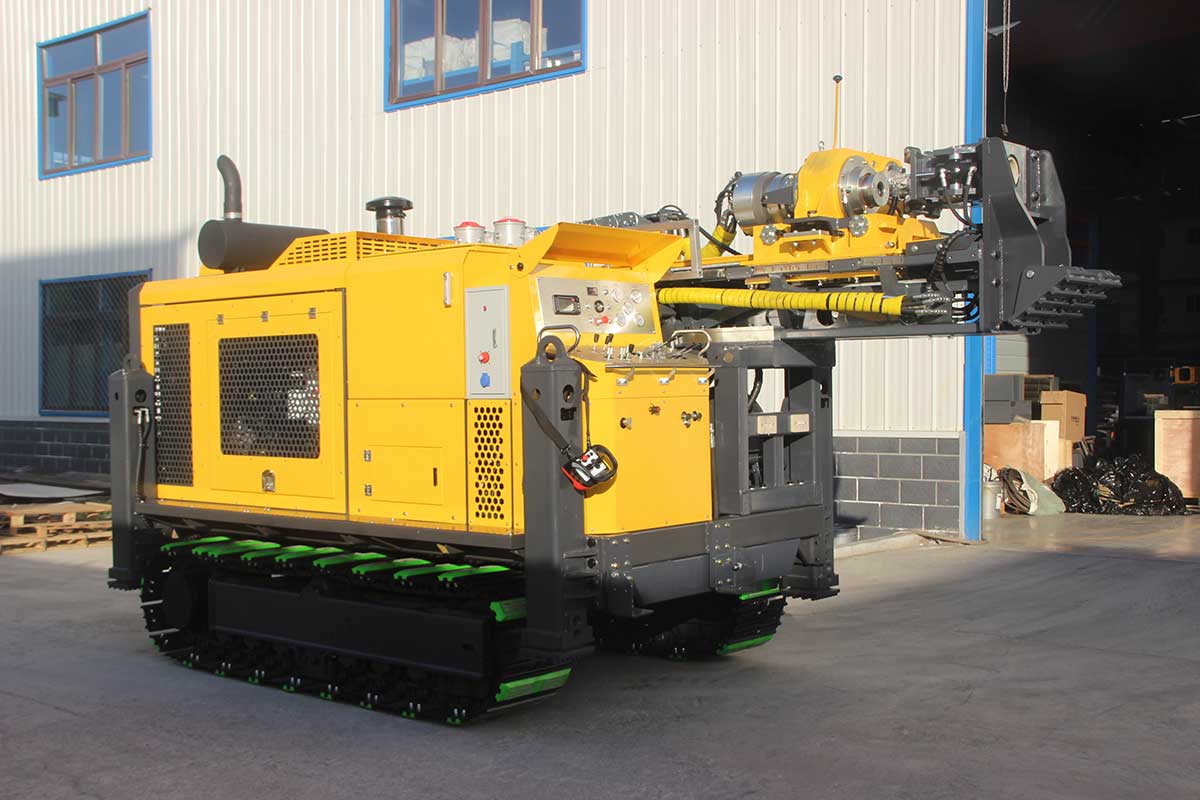

The CX2000 fully hydraulic exploration rig is well-suited for a broad range of drilling scenarios. Equipped with a low-emission electronically controlled engine, world-class hydraulic control technology, and a long-cylinder driven feed system, it is recognized as one of the most versatile exploration rigs in its category—offering outstanding reliability and productivity.
Functions such as mast ground contact, hydraulic leg leveling, and a foldable mast enable quick positioning of the CX2000. Wireless remote control for crawler movement improves on-site maneuverability while allowing safe distance operation of the rig’s crawling function, effectively avoiding potential hazards.
Product Details

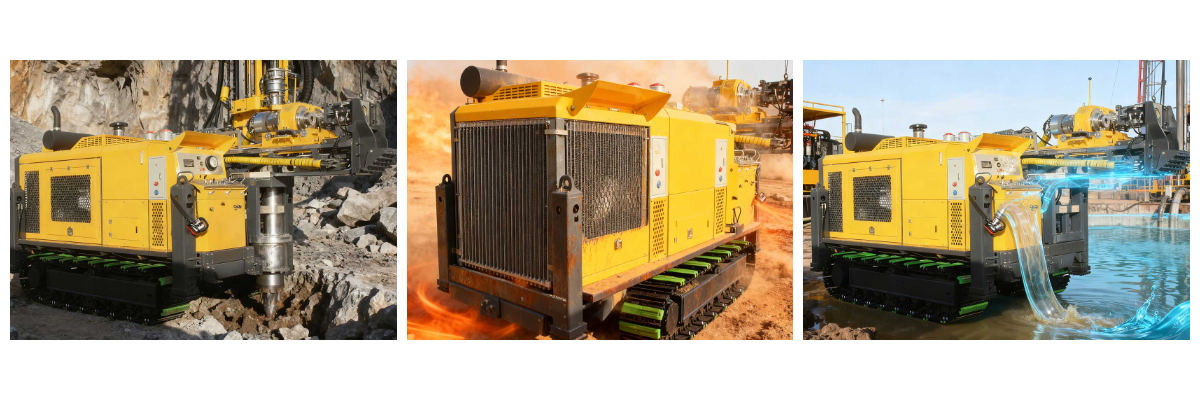

01. POWER HEAD
With high torque, accurate speed control, and strong durability, it enables efficient drilling in harsh formations—intelligent adjustment and anti-vibration structure ensure consistent reliability.
02. HEAT SINK
With high-efficiency heat dissipation, corrosion resistance, and dust resistance, it maintains the stable operation of engines and hydraulic systems under extreme conditions, thus extending the equipment’s service life.
03. RECIPROCATING PUMP
Providing stable high-pressure output and superior self-priming capability, it is perfectly suitable for deep drilling and complex formations, effectively handling viscous and abrasive fluids.
| Depth Capacity（N） | 1800 m (2000 m) |
| Diesel Engine Power | 180 KW (210 KW） |
| Feed Stroke | 3.5 m |
| Maximum Torque | 7600 Nm |
| Hoisting Force | 155 KN |
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
