Cheap Price hole drilling rig
It is suitable for drilling medium-deep blasting holes in open-pit engineering projects such as mining, quarrying, railways, transportation, water conservancy, building materials, and military, enabling high-efficiency rock drilling operations. It is also widely used for drilling operations in anchor bolt support, channel excavation, and sewer engineering.
Product Introduction

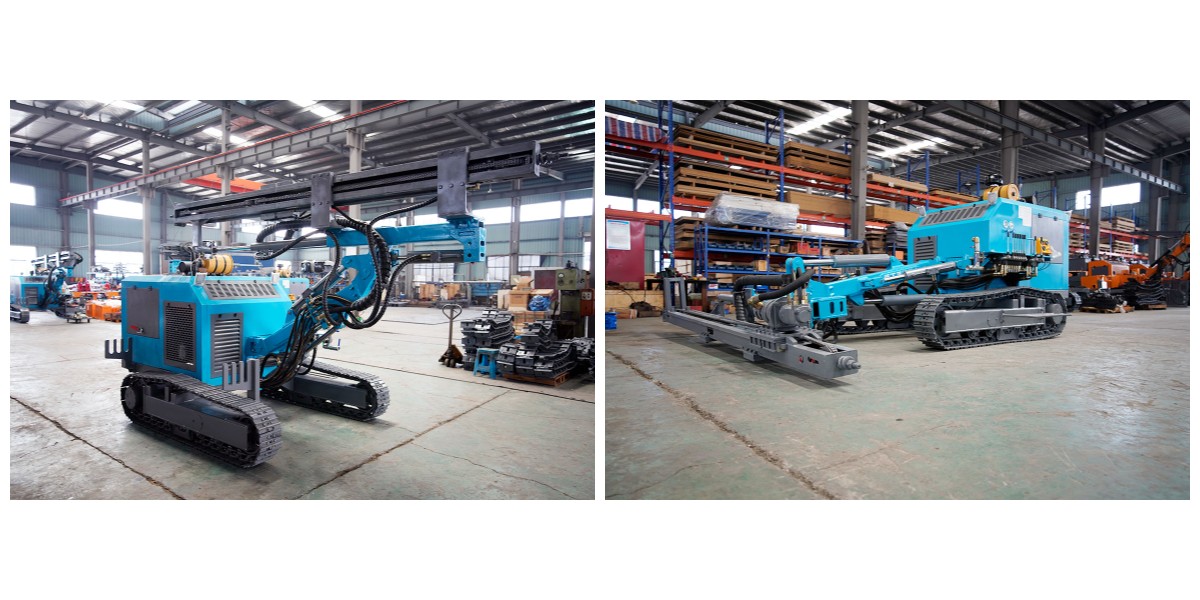

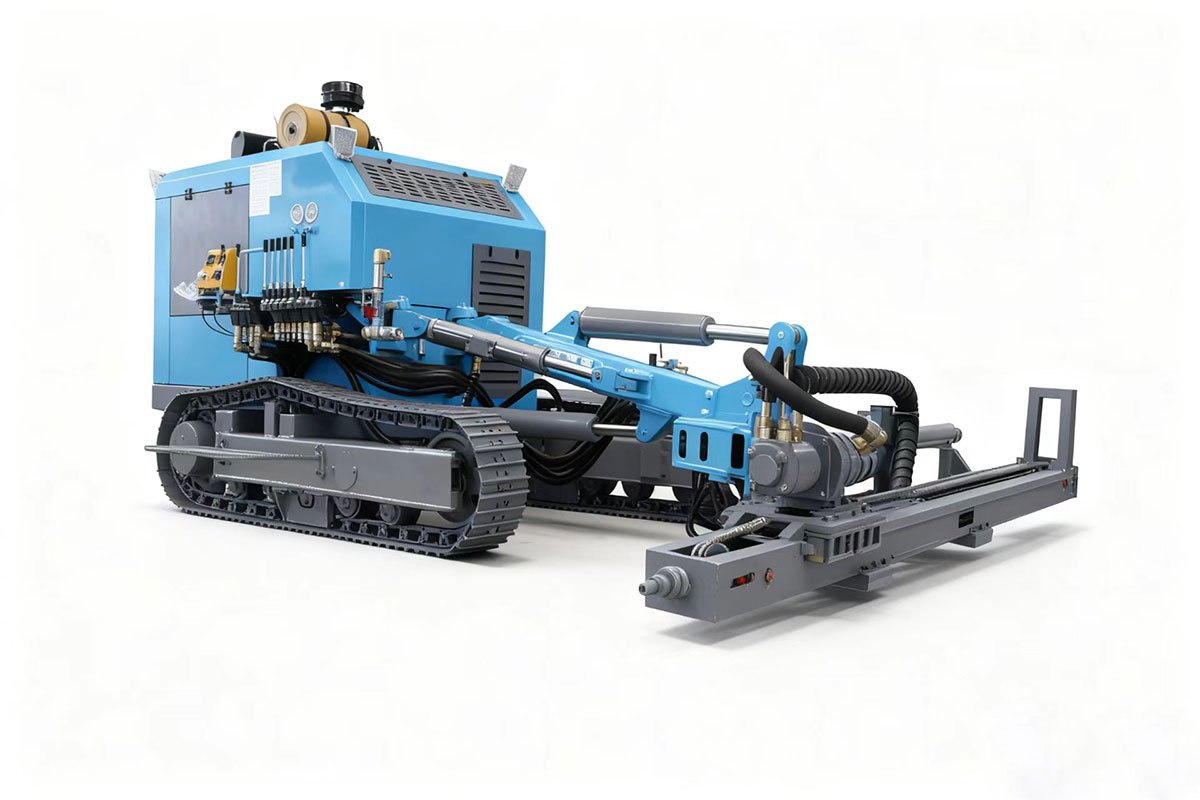

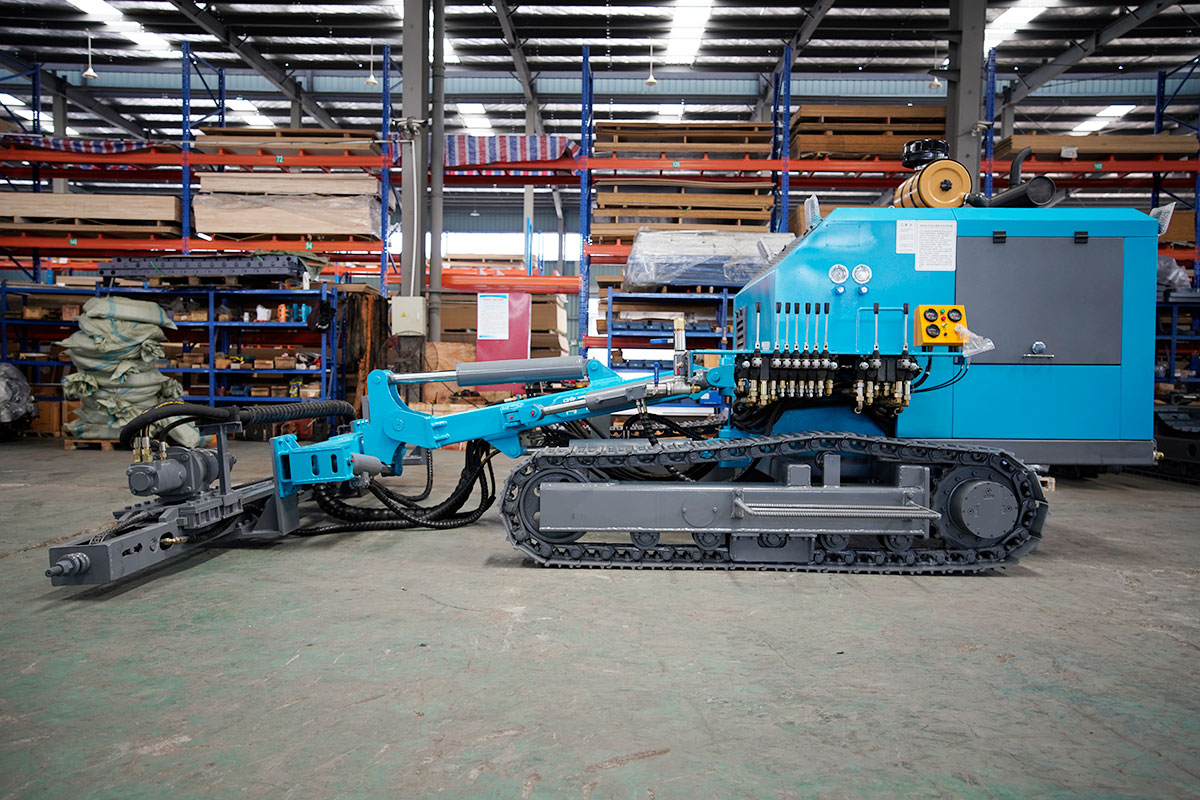

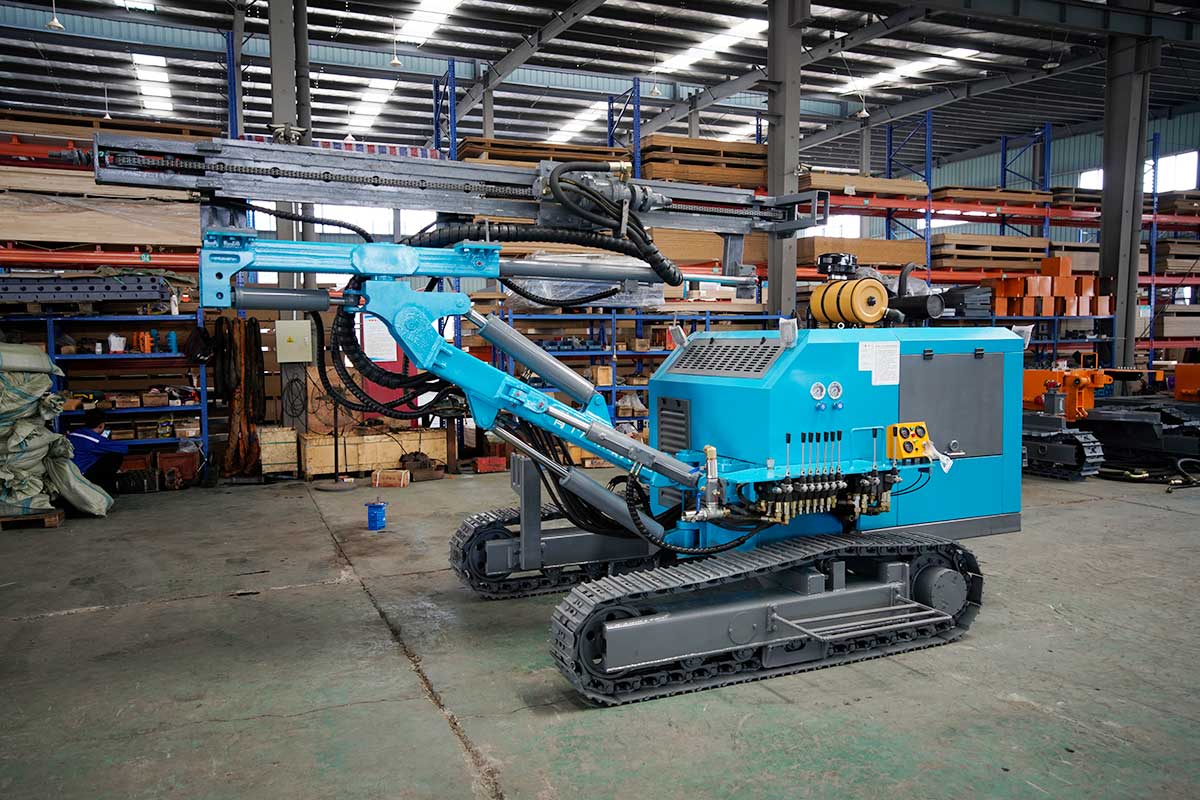

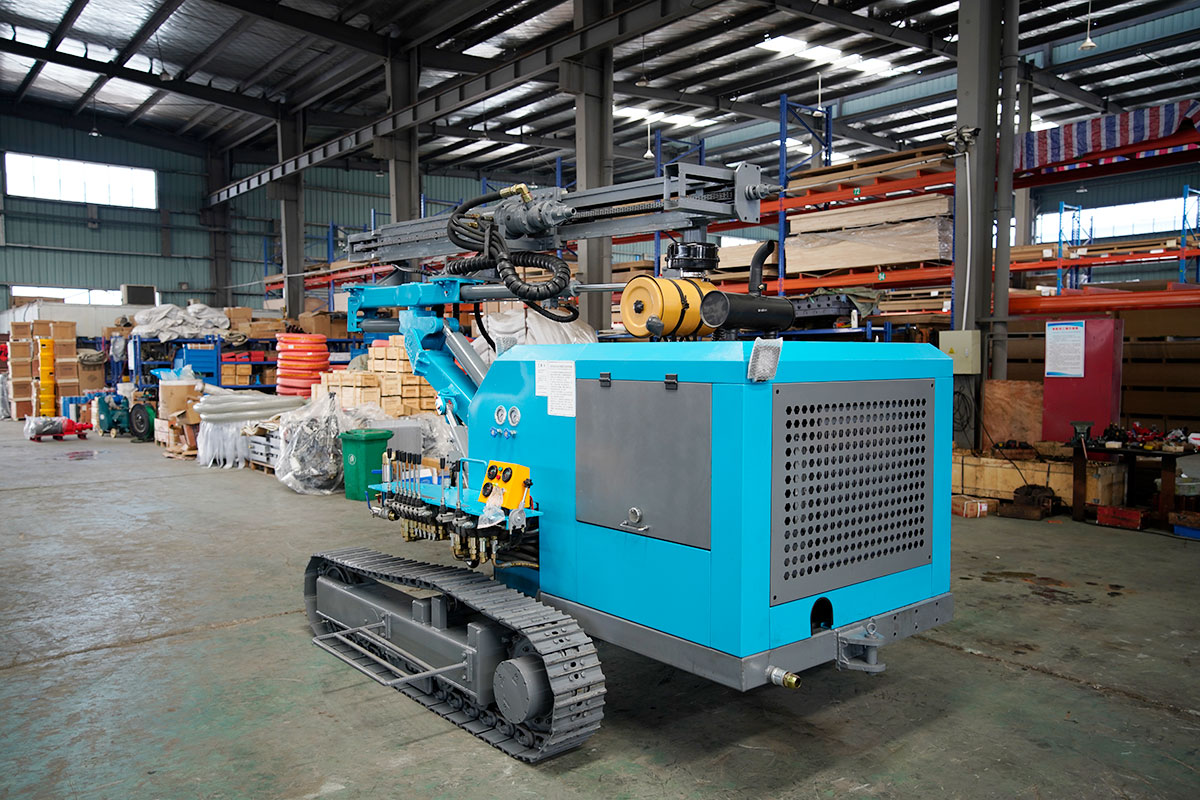

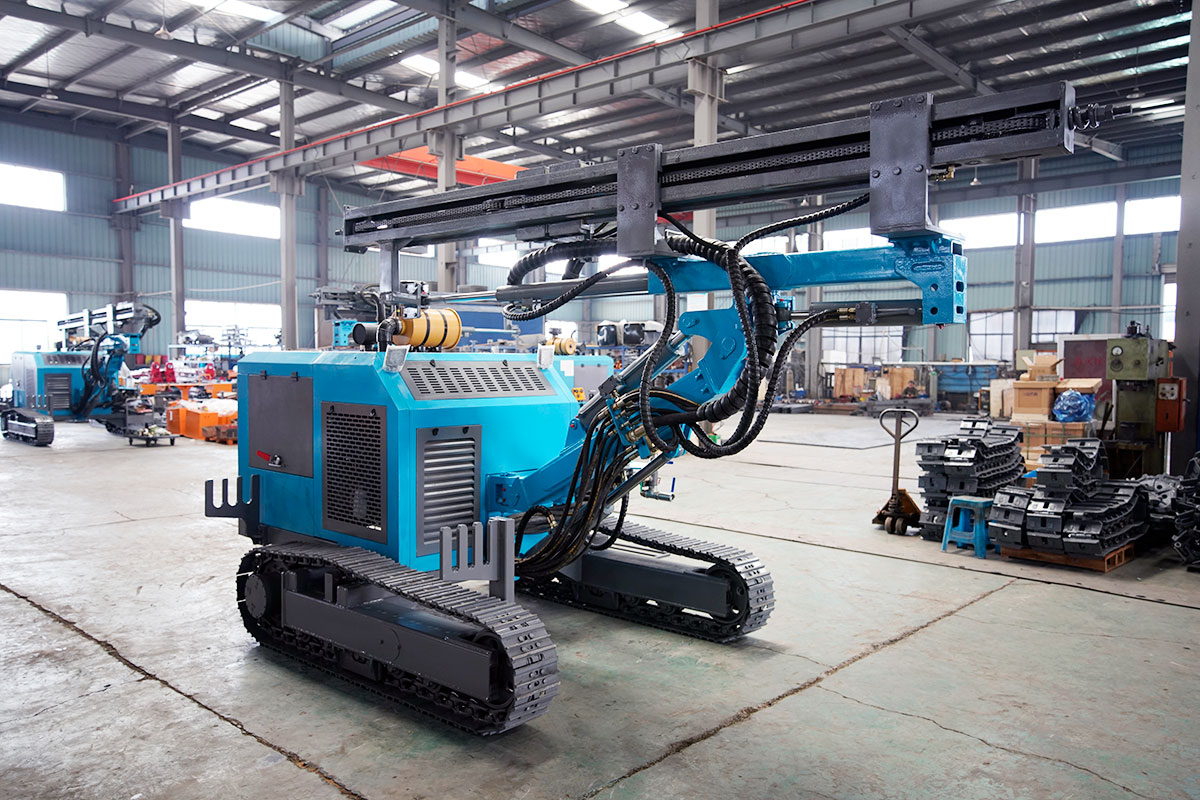

The PH516 series tracked open-pit down-the-hole drill rig is a new type of down-the-hole drill rig developed to meet market demands. This product boasts excellent performance, flexible operation, comprehensive functions, wider adaptability, and a high cost-performance ratio.Suitable for rock drilling operations in a broad spectrum of engineering projects (e.g., open-pit mining, foundation excavation, water conservancy, power plant development, transportation networks, and national defense construction), this equipment further excels at drilling specialized rock bores including anchor holes, geopressure testing holes, and drainage holes.
Product Details

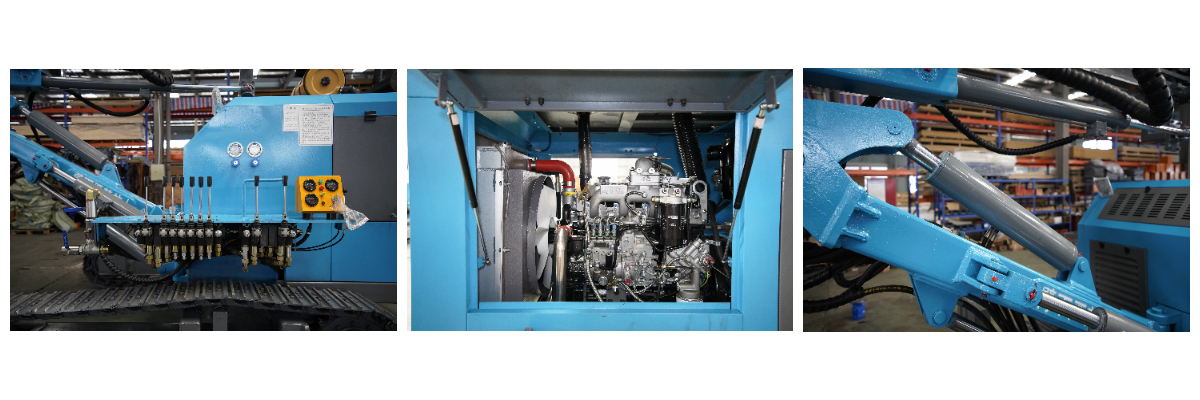

01. Control Console
Features a new hydraulic system with fast/slow advance gears, reducing auxiliary operation time and meeting diverse working conditions.
02. Engine
Offers multiple specifications of diesel engines and electric motors to adapt to varying working environments and customer requirements, all meeting national emission standards.
03. Drill Arm
Features an innovative design with convenient adjustment, significantly expanding the drilling operation range.
Product Specifications
| Drill Rod Type | φ64x3,000mm |
| Drilling Diameter | φ90-127mm |
| Maximum Working Torque | 1,950 N·m |
| Rotation Speed | 0-150 rpm |
| Thrust Force | 15 kN |
| Lifting Capacity | 25 kN |
| Propulsion Method | Hydraulic cylinder chain |
| Travel Speed | 2.5 km/h |
| Gradeability | 25° |
| Total Weight | 4,500 kg/4,250 kg |
