1.Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.
2.Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.
3.dvanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
4.Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.
5.Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.
6.Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.
7.Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.
Product Introduction

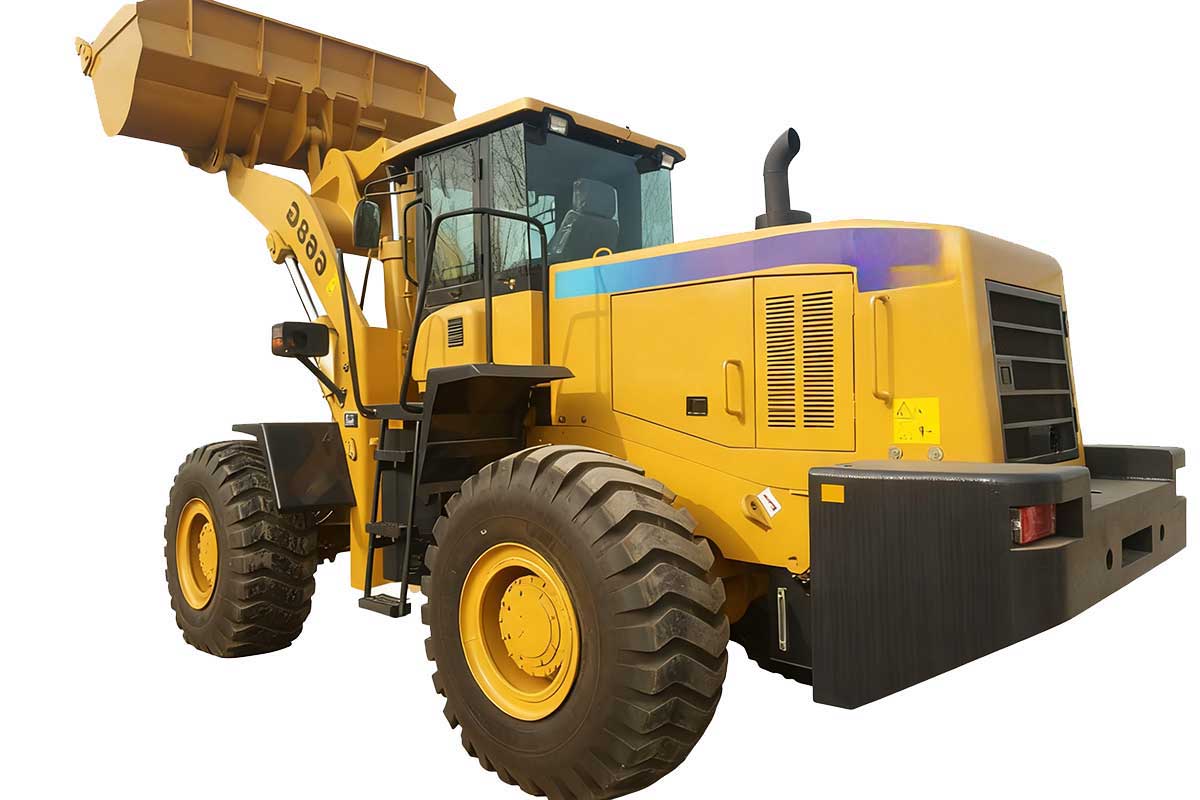

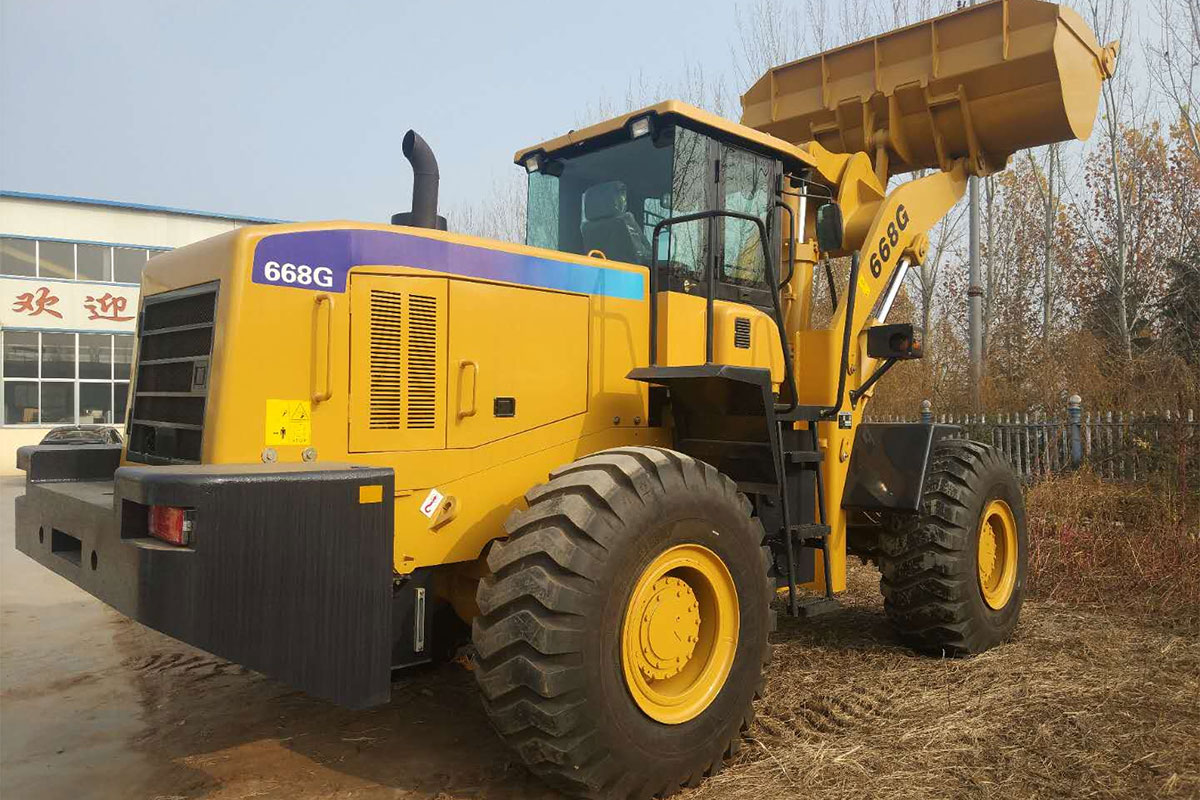

6Ton Wheel Loader P668 With 3.6cbm Bucket With High Performance Good Service
A new generation of family-style appearance, thick, tough, strong visual impact.
High quality carbon plate integral mold forming engine hood, reliable and durable.

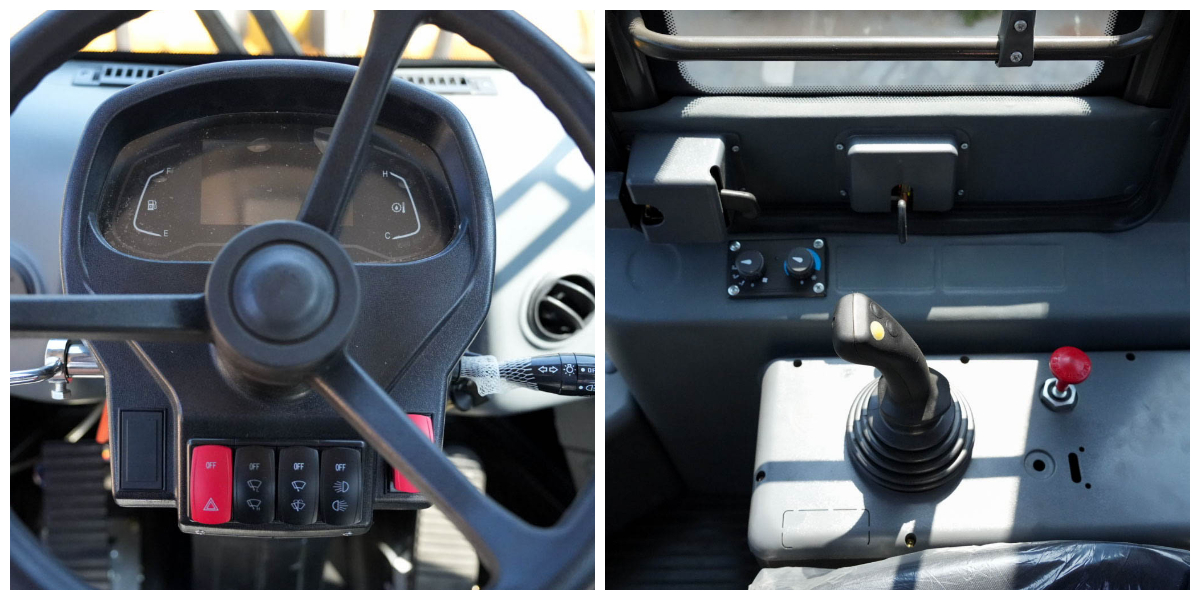

The newly developed cab offers a wide range of features, including sun visor, 24V charging power, fuel gauge, single-handle pilot operation (optional) and more.
Advanced mechanical suspension seat for more comfort.
Improved cabin tightness and a 7% reduction in cockpit noise compared to the previous generation.
Product Details
rated load | 600kg |
overall weight | 20000KG |
rated bucket capacity | 3.6m3 |
maximum tractive force | 187KN |
maximum breakout force | 206KN |
overall dimension (L×W×H) | 8540×3100×3550mm |
maximum grade ability | 30℃ |
maximum dump height | 3150mm |
maximum dump reach | 1255mm |
minimum turning radius | 6300mm |
model | Weichai WD10G240E21 |
type | lnline water cooling dry cylinder injection |
No. of cylinder-bore/stroke | 6-126×130mm |
rated power | 175kw--2200r/min |
maximum speed | 40km/h |
wheel base (mm) | 3350mm |
wheel tread | 2250mm |
minimum ground clearance | 450mm |
system working pressure | 18MPa |
boom lifting time | 6.15+0.25s |
total time | 10.65+0.5s |
fuel tank capacity | 300L |
function of leveling automatically | yes |
service brake | air over hydraulic disc brake on 4 wheels |
parking brake | manual parking brake |
type specification | 26.5-25 |
front tyre pressure | 0.4Mpa |
rear tyre pressure | 0.35Mpa |

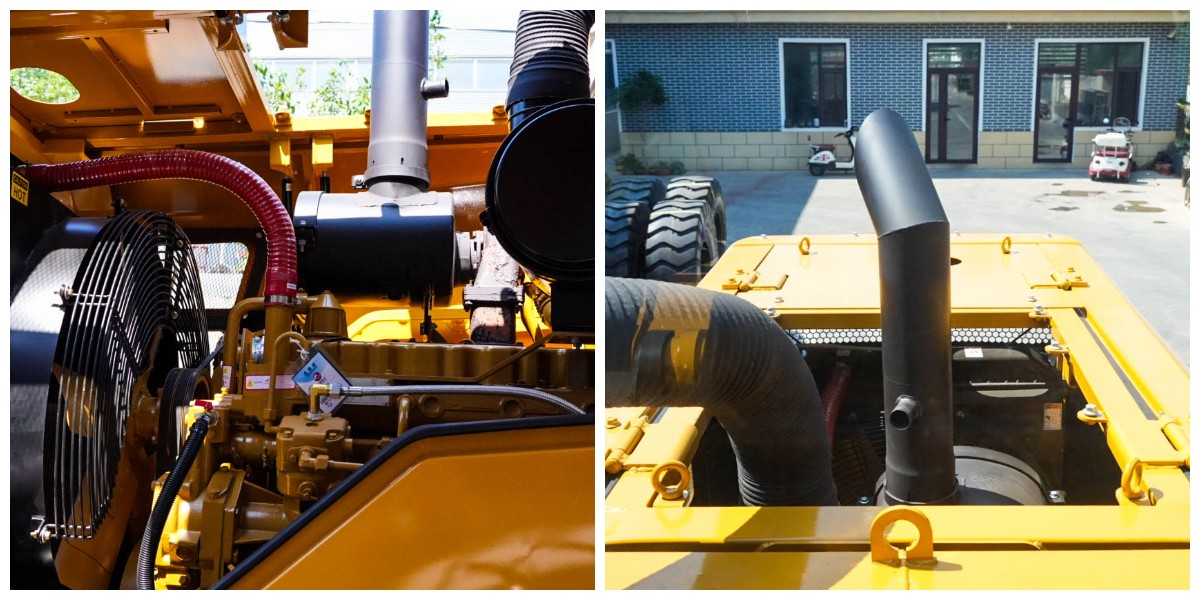

Fuel-efficient low-speed engine with electronically controlled fan for better cooling performance.
High-capacity performance bucket with up to 110% fill factor for higher productivity.
Load-sensing and flow-sharing hydraulic system provides faster cycle times and energy savings.
Reinforced frame and heavy-duty axles designed for long-term reliability in tough conditions.
Spacious operator cabin with excellent visibility, joystick control, and ergonomic layout.
Centralized lubrication points and wide-opening engine hood for easy maintenance.
Safety design includes anti-slip steps, three-point access, backup alarm, and beacon light.
