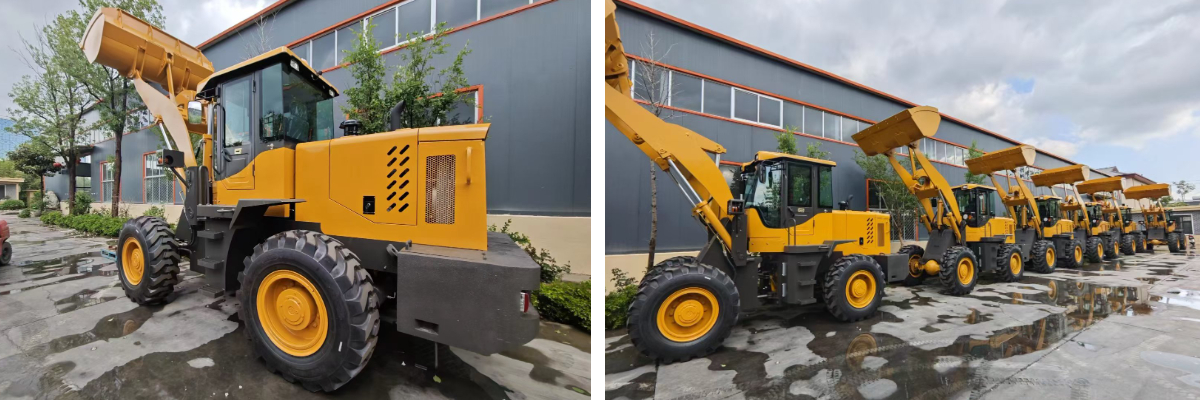

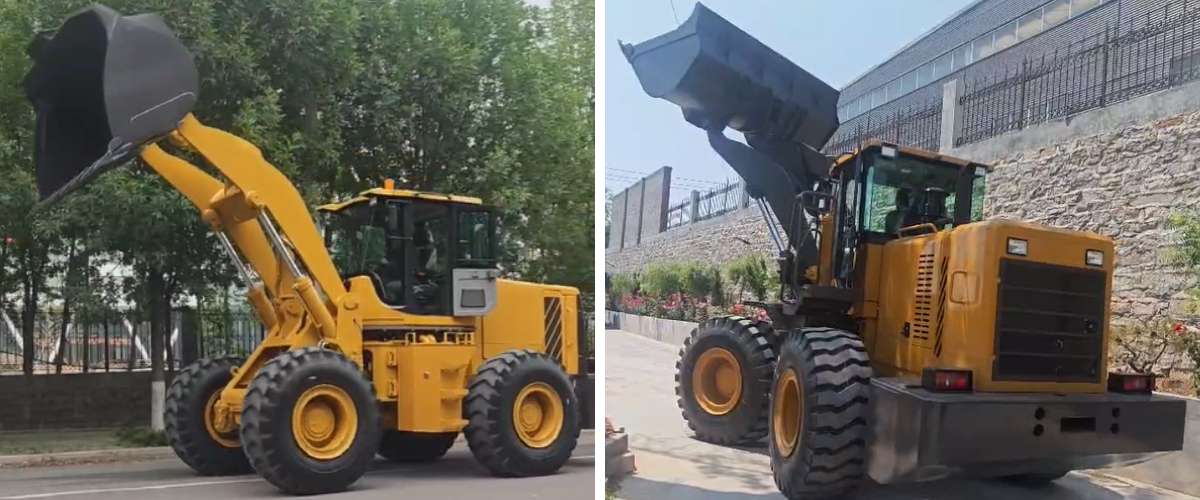

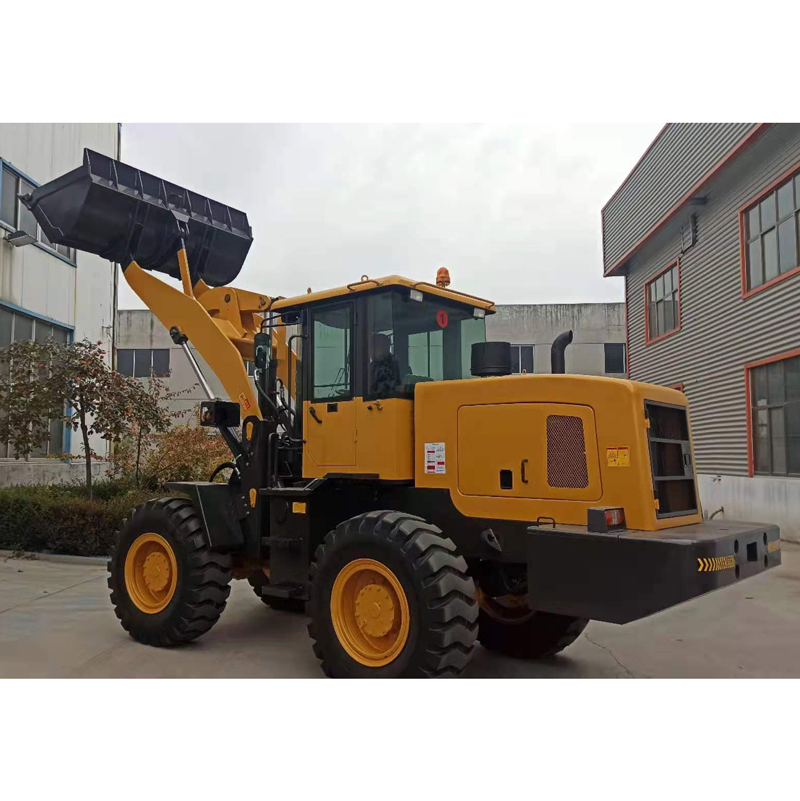

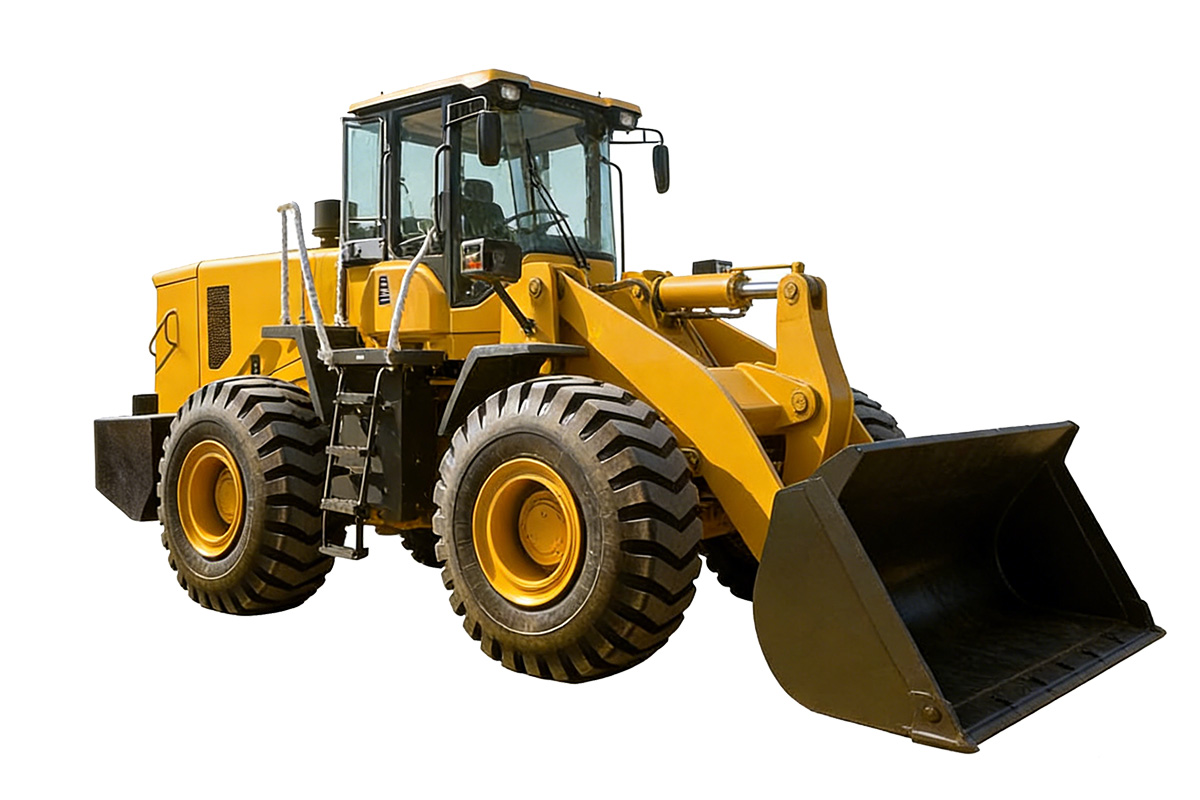

3 Ton Wheel Loader
High Efficiency & Power – Strong loading performance and fast operational response.
Reliable Diesel Engine – Delivers stable power with low fuel consumption and long service life.
Advanced Hydraulics – Smooth control and high working efficiency for demanding tasks.
Durable Structure – Reinforced frame ensures stability and strength under heavy loads.
Comfort & Safety – Ergonomic cabin and reliable braking systems enhance operator confidence.
Superior Mobility – Excellent maneuverability and travel speed for versatile job sites.
Product Introduction
The 3 Ton Wheel Loader is a powerful and versatile machine designed for efficient material handling in construction, mining, agriculture, and infrastructure projects. Equipped with the reliable WP6G125E22 six-cylinder diesel engine, this loader delivers outstanding performance with a rated load of 3000 kg and a bucket capacity of 1.7 m³. Its advanced hydraulic system, strong traction, and excellent breakout force ensure superior productivity in demanding working environments.
Featuring a durable frame, comfortable operator cabin, and precise control system, this loader guarantees stability, safety, and ease of operation. With a maximum travel speed of 39 km/h and exceptional maneuverability, it offers both power and efficiency for a wide range of loading and transportation tasks.
Product Specifications
Performance | 1 | rated loading | 3000kg |
2 | overall weight | 9600kg | |
3 | bucket capacity | 1.7m3 | |
4 | maximum traction force | 97KN | |
5 | maximum breakout force | 120KN | |
6 | maximum grade ability | 30℃ | |
7 | maximum dump height | 3200mm | |
8 | maximum dump reach | 1106mm | |
9 | overall dimension (L×W×H) | 7100*2420*3100mm | |
10 | minimum turning radius | 5097mm | |
Engine | 11 | model | WP6G125E22 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | NO. of cylinder-bore*stroke | 6-108*125 | |
14 | rated power | 92kw—2200r/min | |
15 | maximum torque | 500N.m | |
16 | min. fuel-consume ratio | ≦210Kw h | |
Transmission system | 17 | torque converter | YJ315-X |
18 | gearbox mode | Power shaft normally engaged straight gear | |
19 | gears | 4 forward 2 reverse | |
20 | maximum speed | 39km/h | |
Drive axles | 21 | main reducing spiral | bevel gear grade 1reduction |
22 | decelerating mode | Planetary reduction grade 1 | |
23 | wheel base (mm) | 2650mm | |
24 | wheel tread | 1370mm | |
25 | ground clearance | 400mm | |
Hydraulic system | 26 | system working pressure | 16,5MPa |
27 | boom lifting time | 4.6 | |
28 | total time | 8.2±0.5s | |
Brake system | 29 | service brake | air assist disc brake on 4 wheels |
30 | parking brake | Manual disk brake | |
Tyre | 31 | type specification | 17.5-25 |
32 | front tyre pressure | 0.4Mpa | |
33 | rear tyre pressure | 0.35Mpa |
Application Scenarios
The 3 Ton Wheel Loader is widely used in construction, mining, agriculture, and infrastructure projects. It is ideal for material handling, earthmoving, road maintenance, sand and gravel loading, and warehouse operations. With its strong power, excellent maneuverability, and durable structure, the loader performs efficiently in various working environments — from construction sites and quarries to farms and ports.
Packaging & Shipping

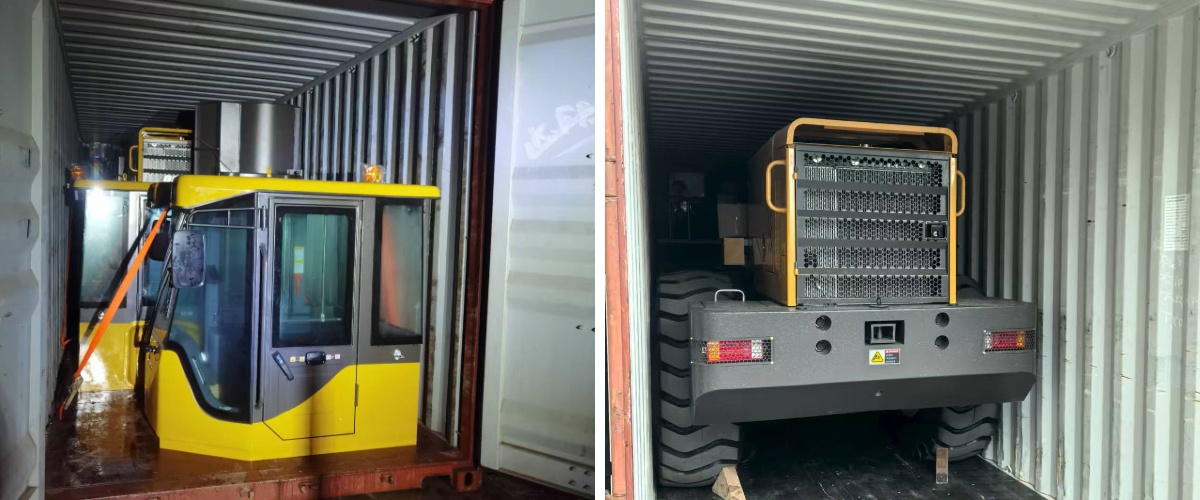

The 3 Ton Diesel Wheel Loader is carefully prepared for shipment to ensure safe and efficient delivery. Before dispatch, the machine is thoroughly inspected, cleaned, and secured. For export, the loader is usually transported in bulk or by flat rack container, depending on customer requirements. Major components such as the bucket or cab may be partially disassembled to optimize container space and reduce shipping costs. Each unit is protected with anti-corrosion coating and securely fastened to prevent movement during transport, ensuring the machine arrives at its destination in perfect working condition.
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., established in 2003 in Jining, China, is a high-tech enterprise committed to the research, development, and manufacturing of geological exploration, intelligent mining, and new energy equipment. With advanced R&D strength and precision production technology, Puhua delivers high-performance drilling rigs, intelligent underground transport systems, and tailored engineering solutions for mining operations worldwide.
Partnering with more than 30 leading mining enterprises such as Shandong Energy, Yintai Gold, and Shandong Gold, the company exports its products to over 120 countries and regions. Backed by ISO9001 certification and a dedicated R&D center in Canada, Puhua’s equipment operates reliably in challenging environments — from high-altitude plateaus to arid deserts. Renowned for its innovation, quality, and operational efficiency, Puhua stands as a trusted global supplier in the energy and mining industries.
