Hot Sale Tunnel Drill Rig
The UX-series drilling rigs adopt smart and responsive hydraulic technology, delivering flexible, high-efficiency operation with a host of industry-leading functions.
Fitted with an intelligent control system, the drill achieves automatic drilling, stratum adaptation, and parameter adjustment, as well as remote data monitoring and after-sales support.
With abundant torque reserve and a wide RPM range, the rig can efficiently cope with all kinds of complex geological formations.
The rig comes with a cutting-edge rotary unit that is fully synchronized with the rod holder, enabling automatic rod handling and improved operational safety.
The drill’s positioning device allows omnidirectional drilling, and its compact modular design ensures easy installation in confined underground spaces.
The gas spring rod holder is opened hydraulically and closed by gas pressure, delivering higher safety during operation.
Product Introduction
Engineered to deliver unmatched reliability and performance, the UX800 Underground Core Drill stands out in the field. The fully variable-control integrated gearbox, paired with an independent lubrication system, delivers superior controllability and extended service intervals.

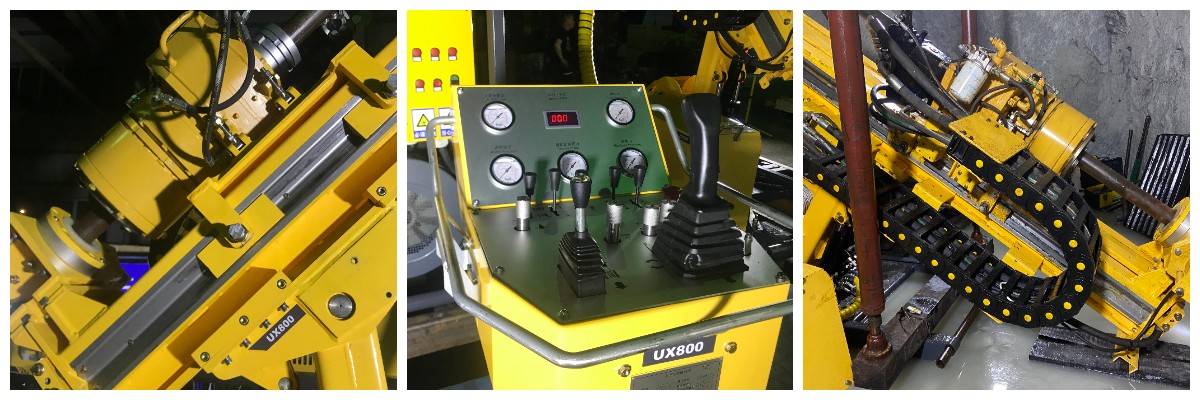

The rod holder, perfectly synchronized with the chuck, uses a hydraulic cylinder for opening and a durable Nitrogen spring for closing. This setup ensures strong clamping force, fast closing, enhanced control, and minimized service needs.
Product Details
Premium Manufacturing Standards: The UX800 is constructed with precision engineering and high-grade materials, delivering long-lasting durability and stable reliability.
Cost-Effective Pricing: We provide the UX800 at a highly competitive price, offering exceptional value while maintaining superior quality.
Professional Technical Support: Our team of skilled engineers delivers full-range support, including installation guidance, operation training, and complete after-sales service, helping you maximize the value of your equipment.
Flexible Customization: We provide a variety of customizable solutions to match your project-specific needs, allowing the UX800 to be configured to your exact operational requirements.
Proven Industry Performance: The UX800 has been successfully applied in numerous projects worldwide, establishing a strong reputation for its consistent reliability and high performance.
| Depth Capacity (B/N/H) | 1000/800/520m |
| Power (Electric) | 75kw |
| Feed Stroke | 1.8m |
| Maximum Torque | 2000Nm |
| Hoisting Force | 75KN |
| Maximum Rod Diameter | 95mm |
| Suitable Rod Length | 1.5m/3m |
| Overall Weight (Reference) | 2100kg |
| Handling Method | Towing |
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., established in 2003 in Jining, China, is a premier high‑tech enterprise focused on the R&D and production of geological exploration equipment, intelligent mining systems, and new energy solutions. Backed by robust R&D capabilities and advanced manufacturing technologies, Puhua delivers top‑tier drilling rigs, intelligent underground transportation equipment, and tailored engineering solutions for mining projects across the globe.
The company has established partnerships with over 30 leading mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold. Its products are exported to more than 120 countries and regions. Holding ISO9001 certification and supported by an overseas R&D center in Canada, Puhua’s equipment operates reliably even in the harshest environments, from high‑altitude plateaus to arid desert areas. Renowned for its innovation, operational efficiency, and outstanding reliability, Puhua has built a strong reputation as a dependable global partner in the energy and mining industries.
