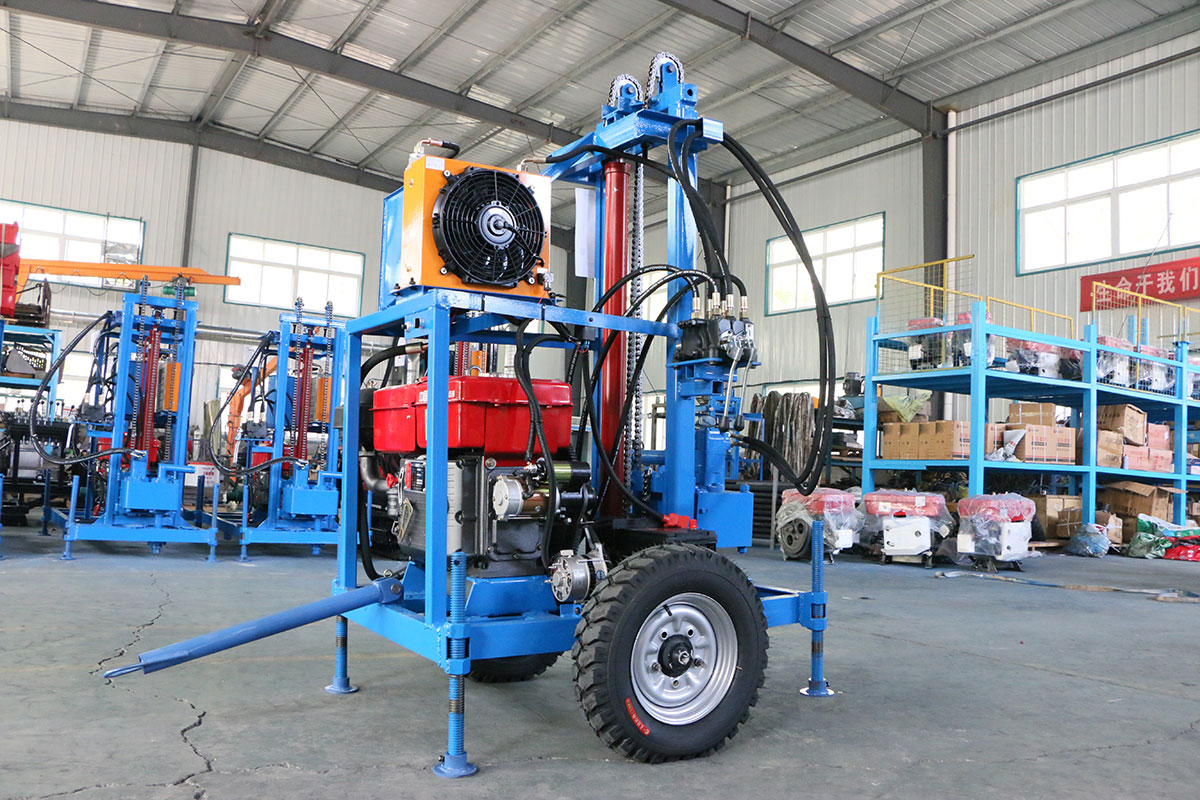

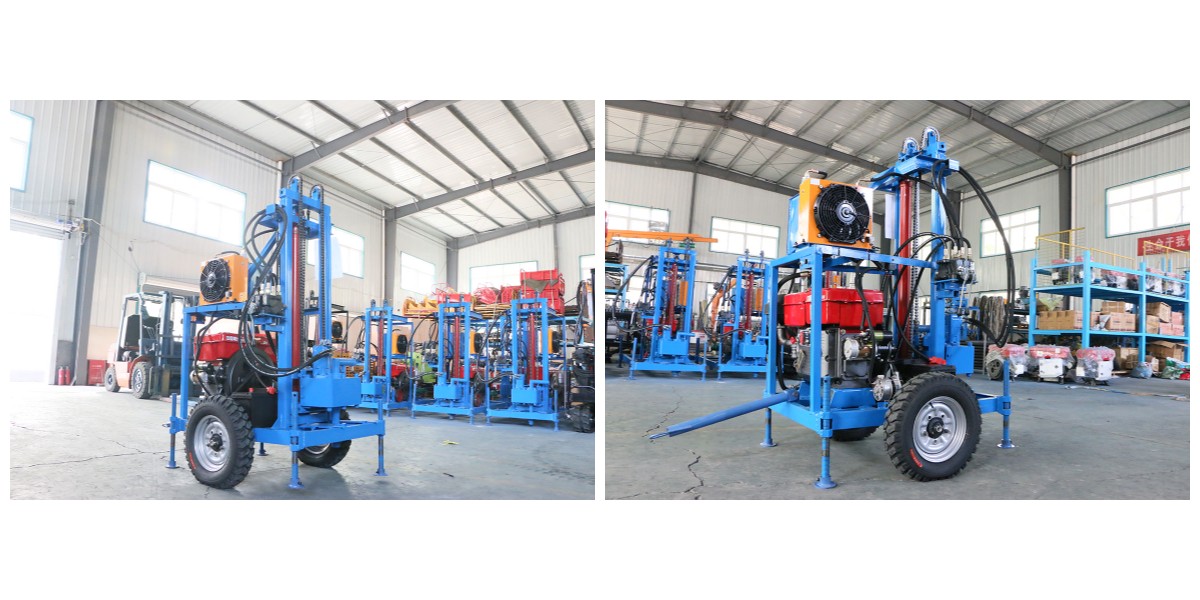

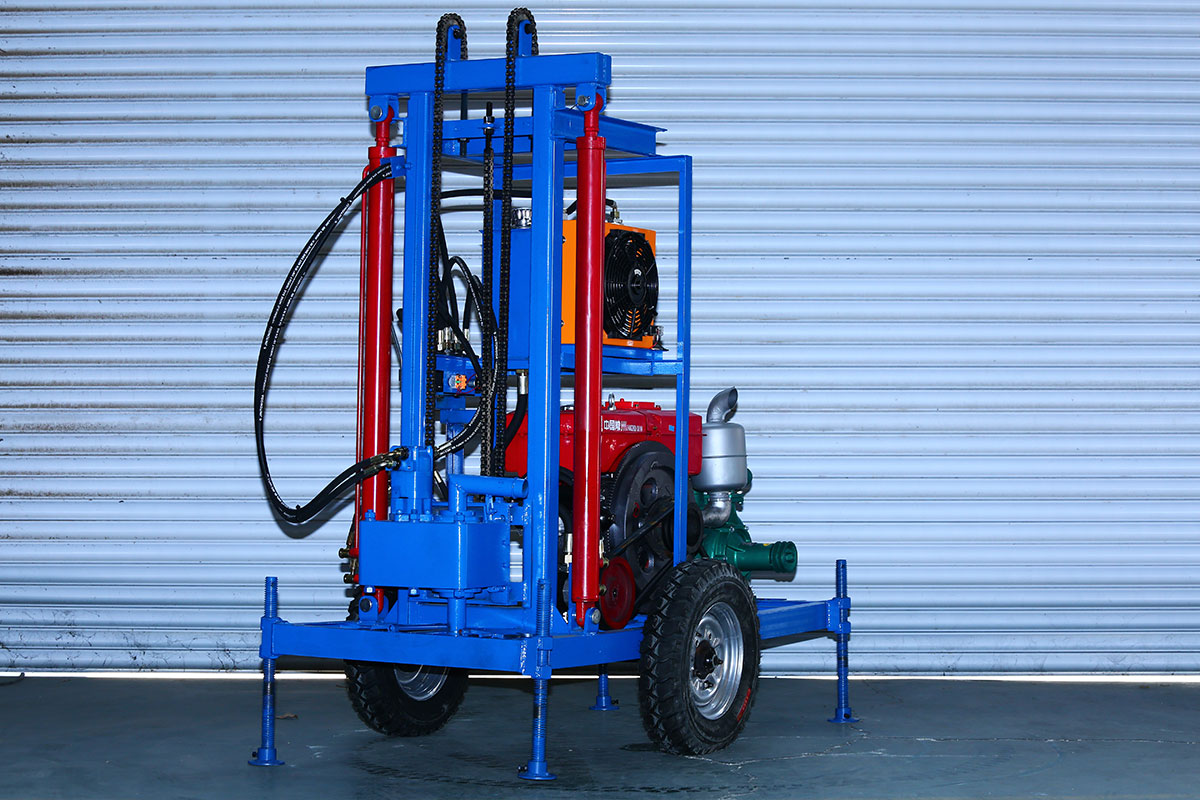

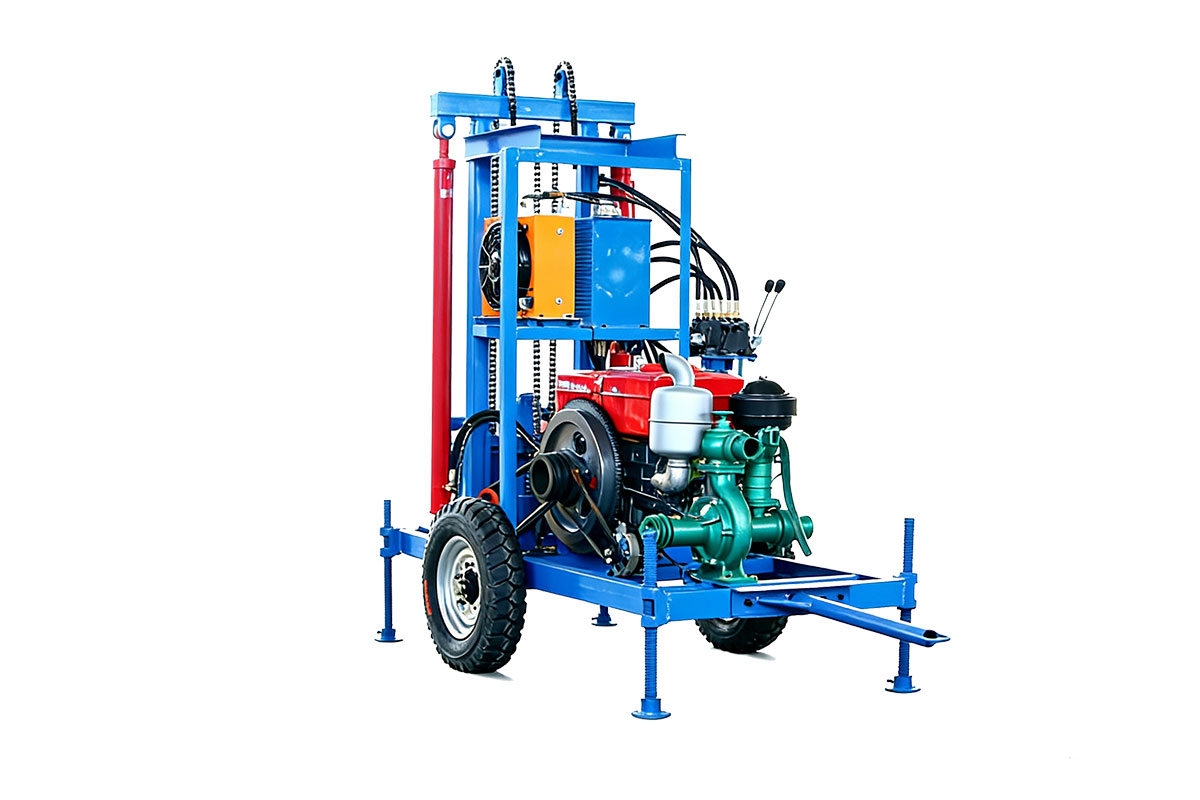

Small Wheel Drilling Rig
1.High drilling efficiency, power provided by 85KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
Product Introduction
Diesel hydraulic drilling machine is suitable for soil layer, quicksand layer and a small amount of rock and soil layer drilling, is mainly used for drilling civil water Wells, ground source heat pump air conditioning Wells, engineering precipitation Wells, drought Wells, industrial Wells, etc..
Diesel hydraulic drilling machine characteristics:1, diesel engine configuration electric start, convenient start, reduce the operator's labor intensity. 2, the drilling machine adopts hydraulic working principle, equipped with radiator, the drilling machine can work with high efficiency. 3, equipped with high power hydraulic motor, power head can be reversed. 4, drilling frame is equipped with hydraulic cylinder, through the operation handle can achieve oil pressure lifting and dropping. 5, the rig has its own water pump, reasonable structure, compact layout, good slag discharge effect. 6, equipped with traction bar and wheel walking mechanism, the rig is convenient to move. 7, equipped with silk support legs, used for leveling drill.

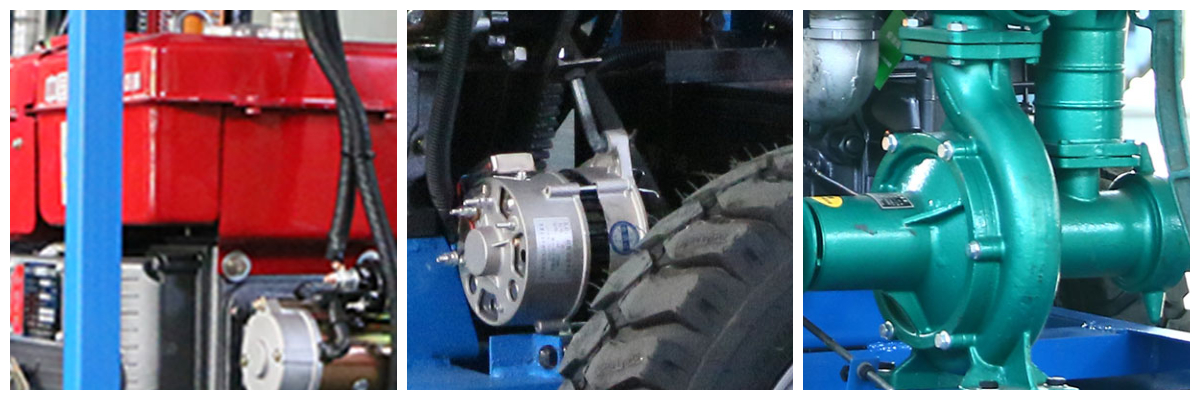

Product Details
01.DIESEL ENGINE（CUSTOMIZED）
High performance, full power.
02.HYDRAULIG MOTORS
High power density, flexible control capability and smooth transmisslon
03.WATER PUMP （STANDARD）
Centrifugal Sprinkler Pump
Product Specifications
| Model | Hydraulic drilling rig |
| Power | Diesel engine |
| Energy | 22hp / 25hp / 35hp |
| Drilling Diameter | 10-35cm |
| Drill Rod Diameter | 50mm x 1.5m per piece |
| Drill Bit Specifications | Multi-diameter alloy drill bits available |
| Drilling Scope | 150m |
| Machine Weight | 550kg |
| Suitable Soil Type | Suitable for muddy and quicksand layers; diamond core drill bits can be used if there are rocks. |
| Dimensions | 1190*1200*1800 |
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
