Fully hydraulic lightweight core drilling rig
• Utilizes integrated power system control technology to enable operation and monitoring of all engines from the control console;
• Employs industry-leading balanced pressure drilling technology to equalize drill string pressure and precisely control drilling pressure, enhancing performance in complex formations;

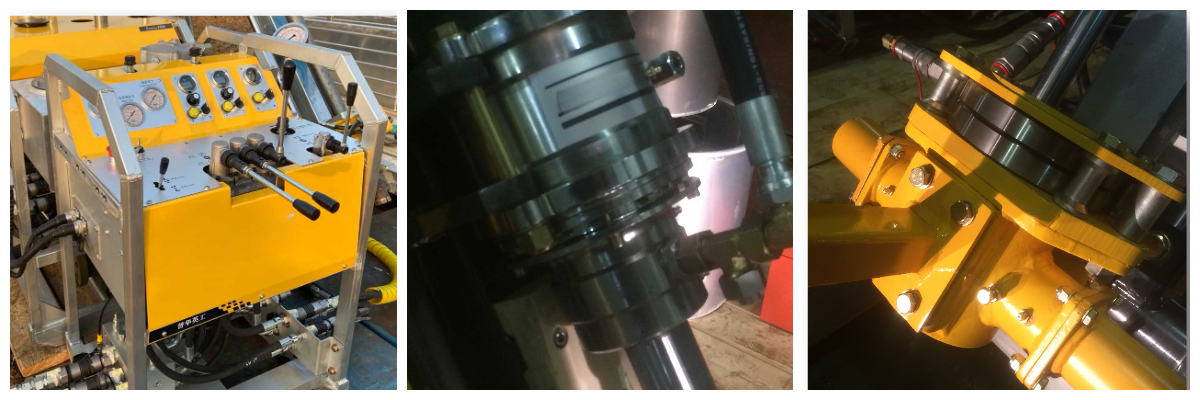

• The clamp features pressure loss protection for safety, reliability, and rapid response to prevent accidental rod drop.

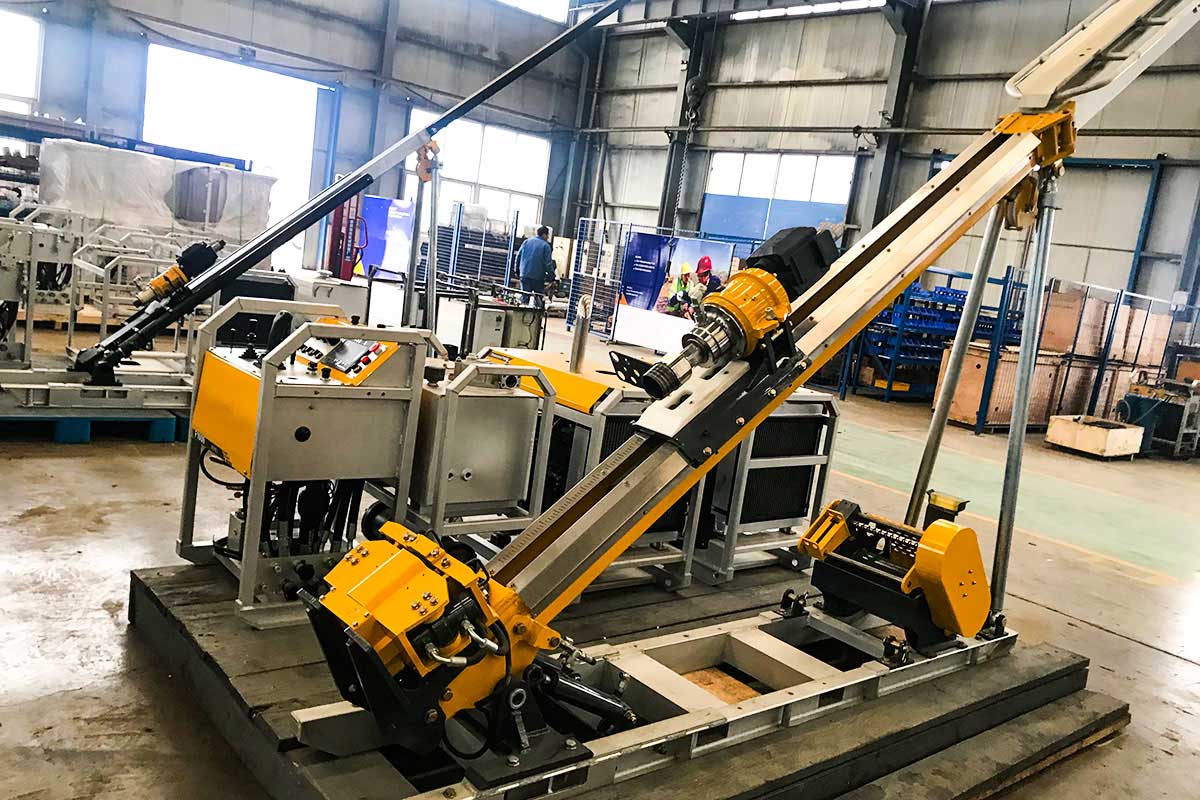

• Unique adjustable sliding clearance on the powerhead maintains tight contact with the track surface, eliminating drilling vibrations and ensuring drilling concentricity;
• Equipped with a Kubota high-performance turbocharged engine, enhanced power reserves, and optimized system configuration to significantly improve high-altitude adaptability.
• The modular mast features automatic telescoping, offering a compact, stable, and reliable structure.
• The proprietary lightweight drilling rig mud handling system utilizes a custom North American high-pressure mud pump, delivering light weight while handling high-solids mud and circulating mud.
• Electric or diesel power units can be freely selected based on requirements.

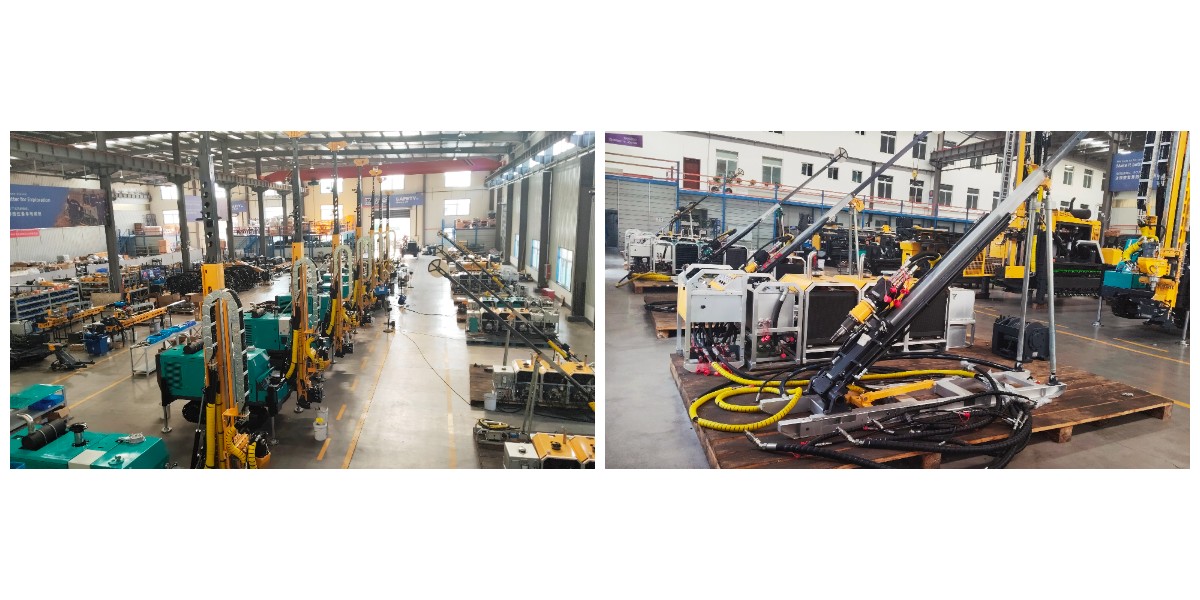

• Manufactured with industry-leading production techniques, delivering exceptional quality that is consistent inside and out.

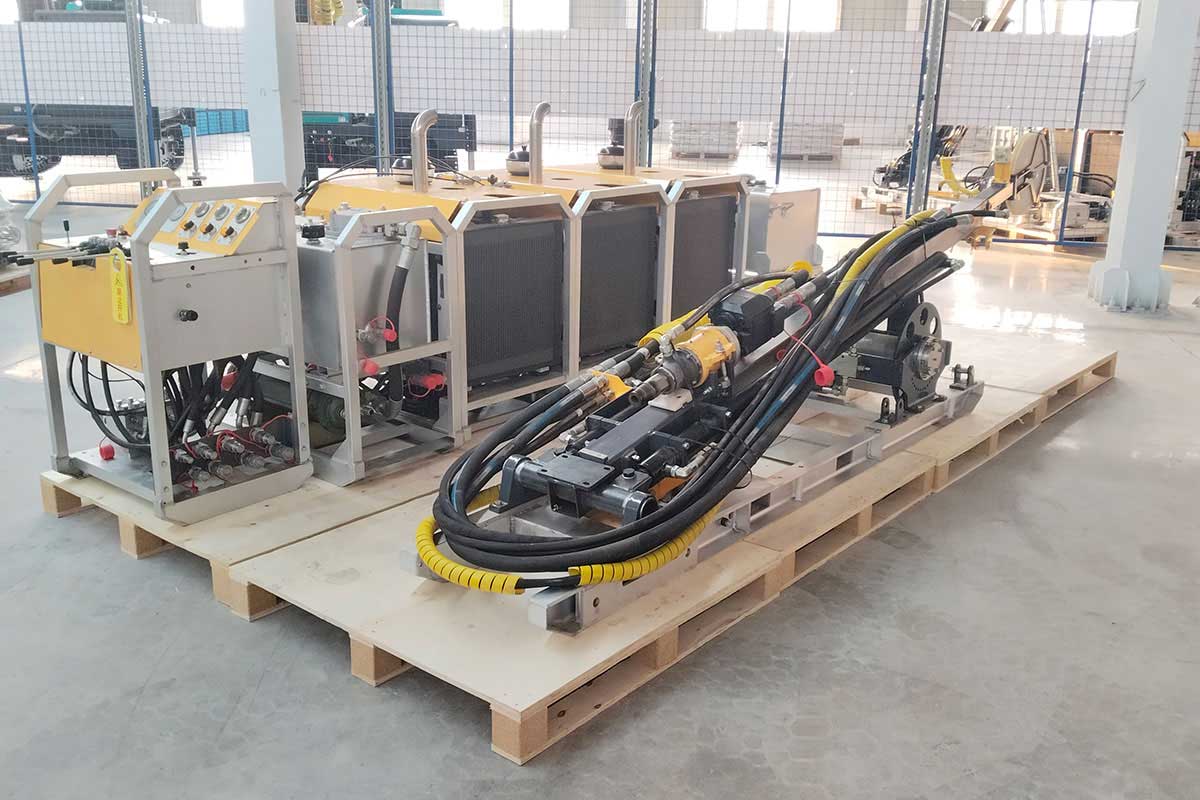

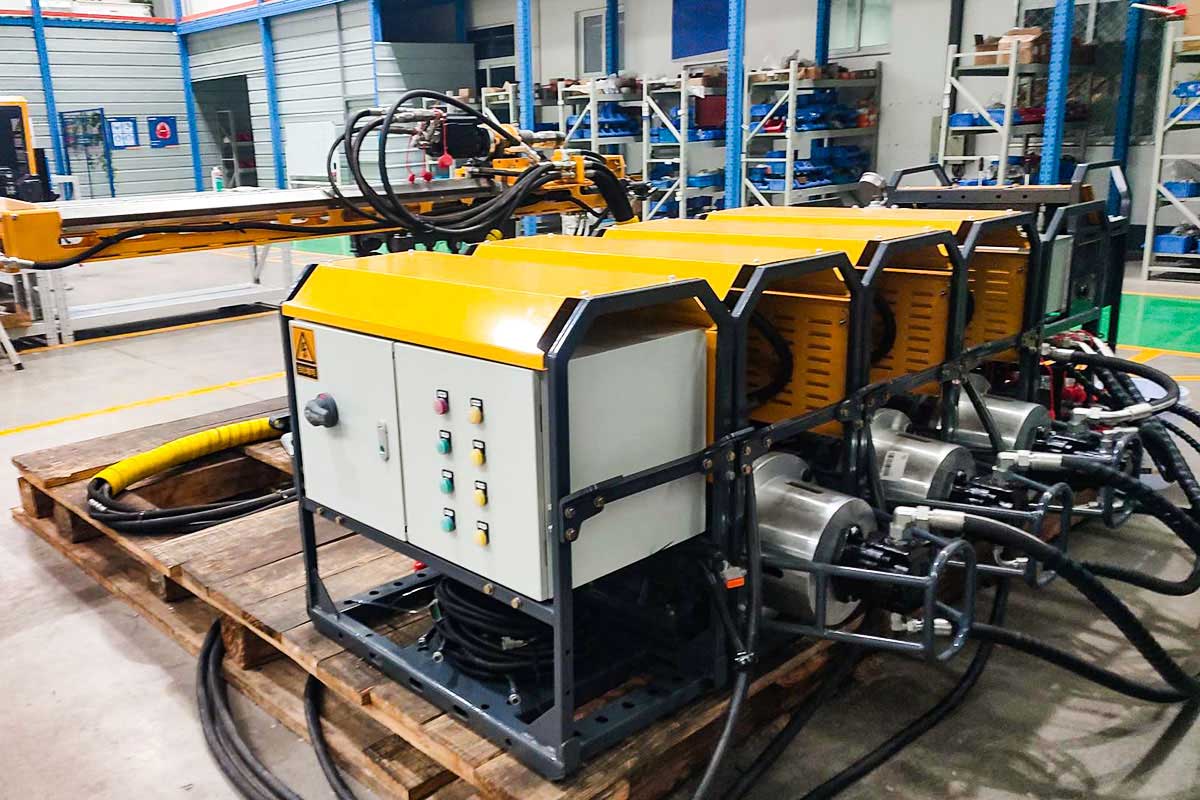

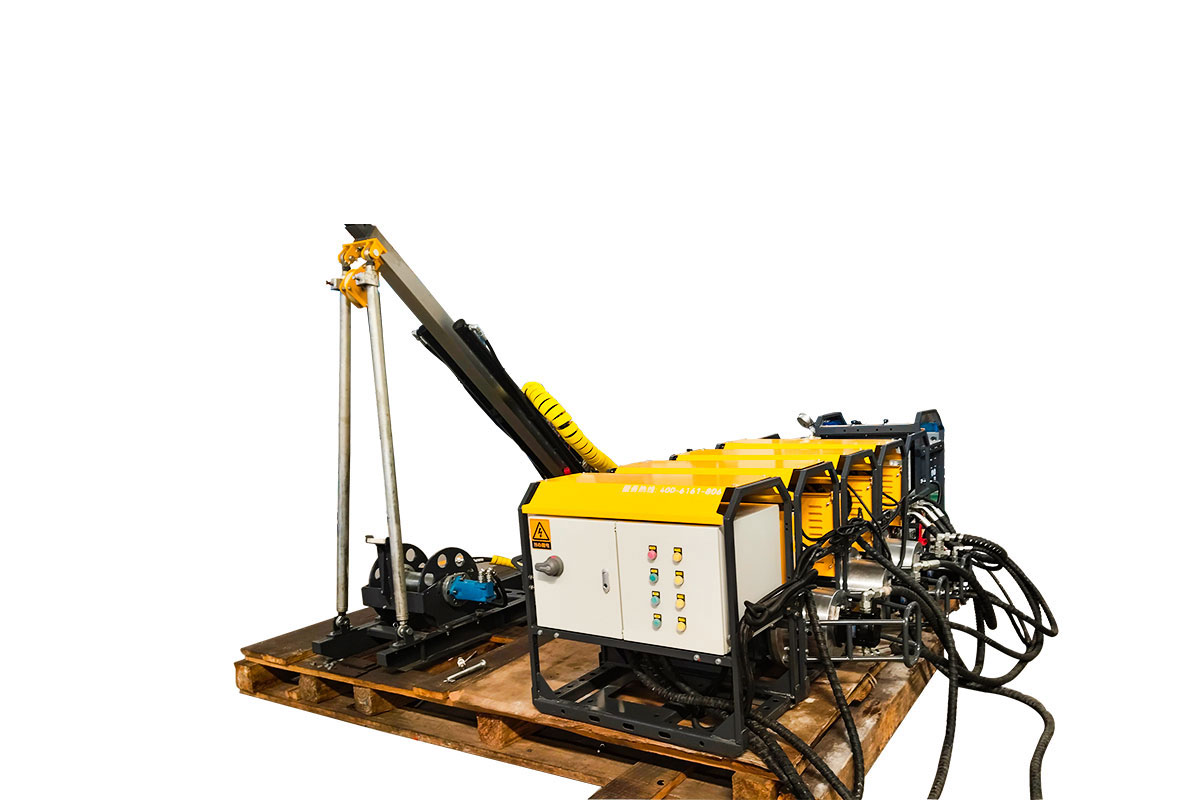

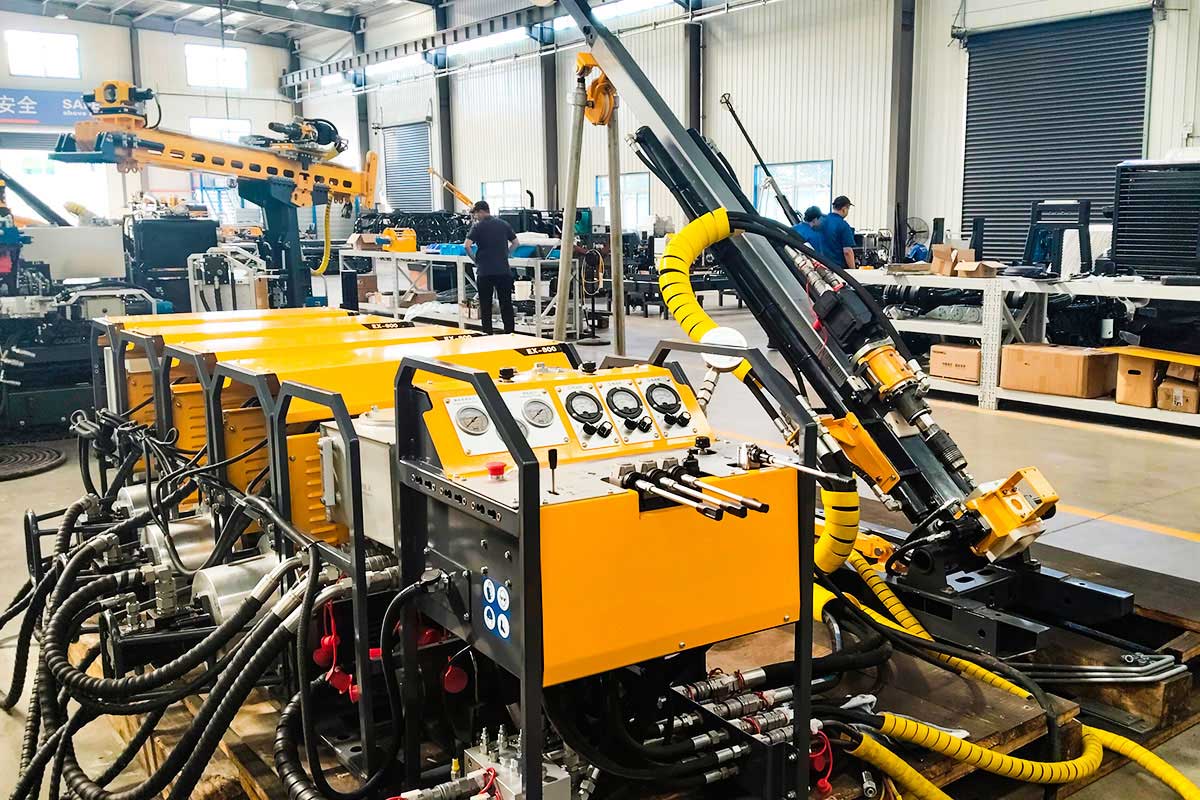

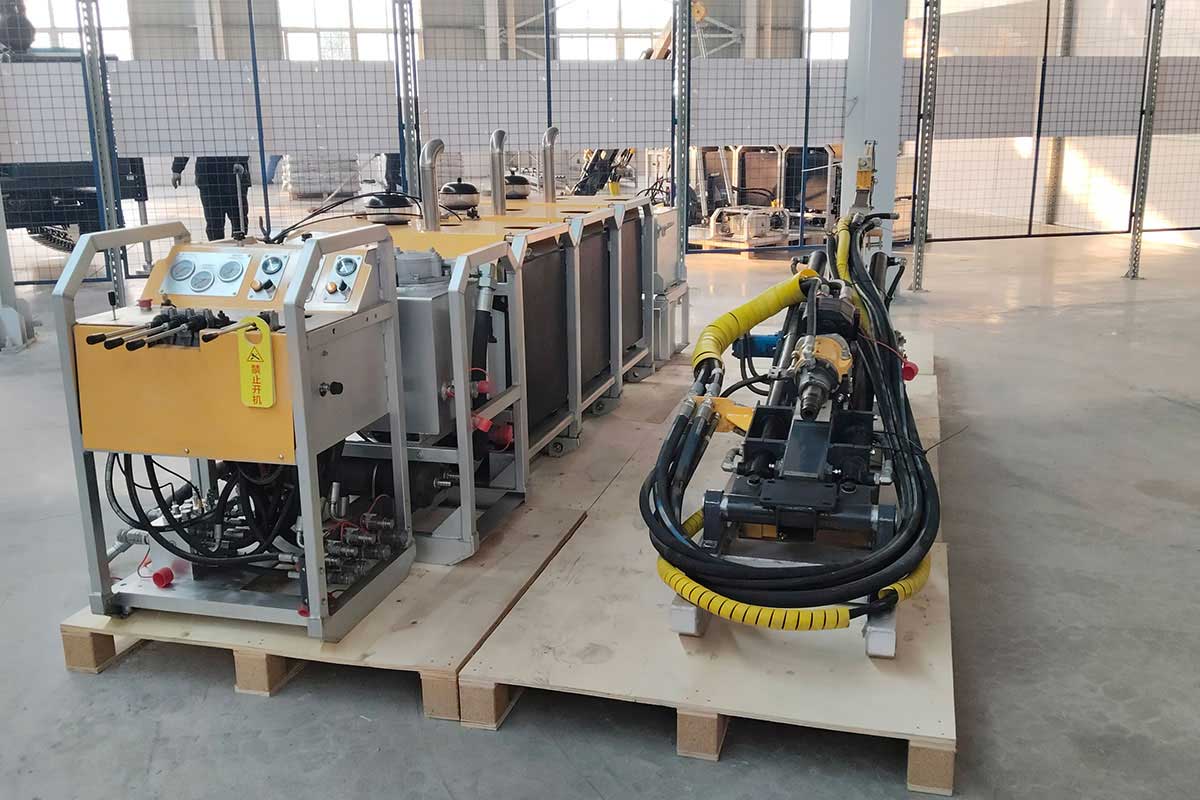

EX800 Lightweight Core Drilling Rig
Lightweight Core Drilling Rig for Medium-to-Deep Hole Exploration
The EX800 is our flagship lightweight core drilling rig, specially designed for medium-to-deep hole drilling operations in challenging environments. Combining a high-strength aluminum alloy structure with modular lightweight design, the EX800 delivers excellent drilling performance while maintaining superior portability.
With a maximum module weight of only 160 kg/180 kg, the rig can be easily transported and assembled by operators, making it an ideal solution for geological exploration, mineral investigation, engineering surveys, and remote drilling projects.
Product Highlights
1. Lightweight Aluminum Alloy Structure
The EX800 core drilling rig adopts a high-strength aluminum alloy main structure, providing an excellent balance between strength, durability, and weight reduction.
Compared with traditional steel drilling equipment, the aluminum alloy frame significantly reduces overall weight while maintaining structural stability during drilling operations.
Advantages:
High strength-to-weight ratio
Corrosion-resistant structure
Easy transportation and installation
Suitable for remote and difficult-access areas
2. Modular Design for Easy Transportation
Designed with field operation requirements in mind, the EX800 features a modular structure that allows the machine to be separated into individual components.
Each module has a maximum weight of only 160 kg/180 kg, enabling easier manual handling without requiring large transportation equipment.
This design makes the EX800 especially suitable for:
Mountain exploration projects
Remote geological surveys
Forest and wilderness drilling areas
Locations with limited vehicle access
3. Excellent Drilling Capability for Medium-to-Deep Holes
The EX800 is engineered for medium-to-deep drilling applications, providing reliable performance in various geological conditions.
The rig delivers stable drilling operations for:
Geological exploration
Mineral resource investigation
Core sampling
Engineering geological surveys
Ground investigation projects
Its compact structure allows operators to achieve efficient drilling performance while maintaining excellent mobility.
Product Specifications
| Power Unit | 180kg*4 |
| Control Unit | 120kg |
| Fuel Tank Unit (Full Load) | 130kg |
| Slurry Unit | 50kg |
| Total Weight | 1700kg |
| Maximum Number of Dismantled Modules | 14 |
Key Features
High Strength & Lightweight Construction
The combination of aluminum alloy materials and optimized structural design reduces machine weight without compromising durability, allowing the EX800 to perform reliably in demanding field environments.
Flexible Field Deployment
The compact and modular design allows quick transportation, assembly, and relocation, improving efficiency for projects requiring frequent movement between drilling locations.
Designed for Challenging Environments
The EX800 lightweight core drilling rig is suitable for areas where traditional heavy drilling equipment cannot easily reach.
Its portability provides a practical solution for exploration projects in:
Mountains
Remote areas
Uneven terrain
Limited-access locations
Technical Advantages
| Feature | Benefit |
|---|---|
| Aluminum alloy structure | Lightweight and durable |
| Modular design | Easy transportation and assembly |
| Maximum module weight 160 kg/180 kg | Manual handling possible |
| Medium-to-deep drilling capability | Suitable for exploration projects |
| Compact structure | Ideal for remote operations |
Application Areas
Geological Exploration
The EX800 provides reliable core sampling capability for geological investigation projects, helping engineers obtain accurate underground information.
Mineral Exploration
With stable drilling performance and easy transportation, the rig is suitable for mineral exploration operations in remote areas.
Engineering Survey
The EX800 can be used for foundation investigation, construction site surveys, and geological assessment.
Remote Drilling Projects
Its lightweight modular design makes it an excellent choice for projects where transportation conditions are limited.
Why Choose EX800 Lightweight Core Drilling Rig?
Lightweight & Portable
Maximum module weight of only 160 kg/180 kg allows easier transportation and manual handling.
Strong & Durable
High-strength aluminum alloy structure provides excellent durability and corrosion resistance.
Efficient Field Operation
Modular assembly design reduces transportation difficulties and improves deployment efficiency.
Wide Application Range
Suitable for geological exploration, mineral investigation, and engineering drilling projects.
FAQ
Q1: What is the EX800 lightweight core drilling rig used for?
The EX800 is mainly used for geological exploration, mineral investigation, core sampling, and engineering survey projects requiring medium-to-deep hole drilling.
Q2: Why is the EX800 easier to transport than traditional drilling rigs?
The EX800 uses a modular aluminum alloy structure, and the maximum module weight is only 160 kg/180 kg, allowing easier manual transportation and installation.
Q3: Can the EX800 work in remote areas?
Yes. Its lightweight and modular design makes it suitable for mountain areas, forests, and other locations where large drilling equipment is difficult to access.
Q4: What makes the EX800 different from conventional core drilling rigs?
The EX800 combines professional drilling capability with lightweight portability, providing a practical solution for exploration projects that require both performance and mobility.
Get Your EX800 Lightweight Core Drilling Rig Solution
Looking for a lightweight core drilling rig for geological exploration or remote drilling projects?
Contact us today for detailed specifications, customization options, and professional drilling solutions.
