Tunnel Drill Rig for sale
The UX series of drills employs intelligent and sensitive hydraulic technology, providing flexible and efficient operation with multiple industry-leading functions.
Equipped with the intelligent system, the drill can realise automated drilling, formation adaptation, parameter adjustment, as well as remote data monitoring and service.
· With powerful torque reserve and broad RPM range, the drill can effectively deal with various complex ground formations.
· The rig features a state-of-the-art rotation unit which is synchronized the rod holder for automated rod handling and enhanced safety.
· The drill’s positioner makes it possible to drill in any direction and the compact modularized design enables it to set up easily in limited spaces underground.
· The gas spring rod holder opens hydraulically and closes with gas pressure for increased safety.
Product Introduction

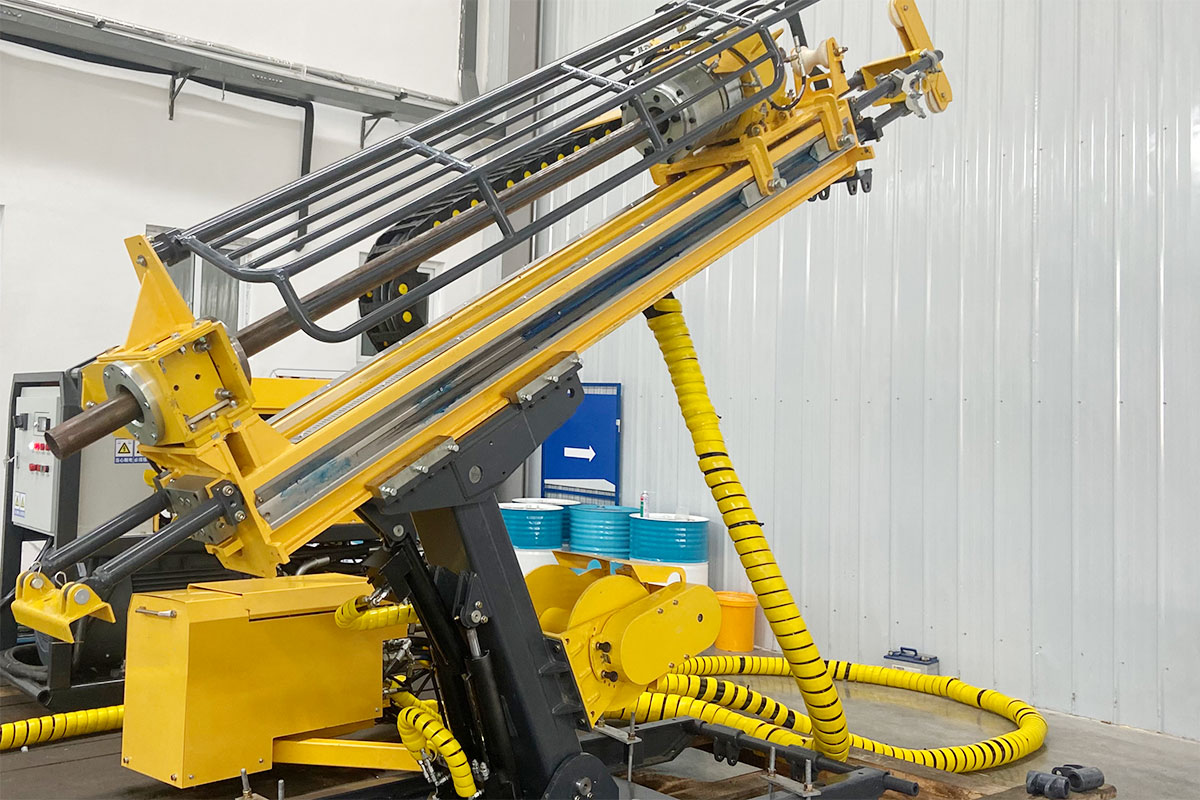

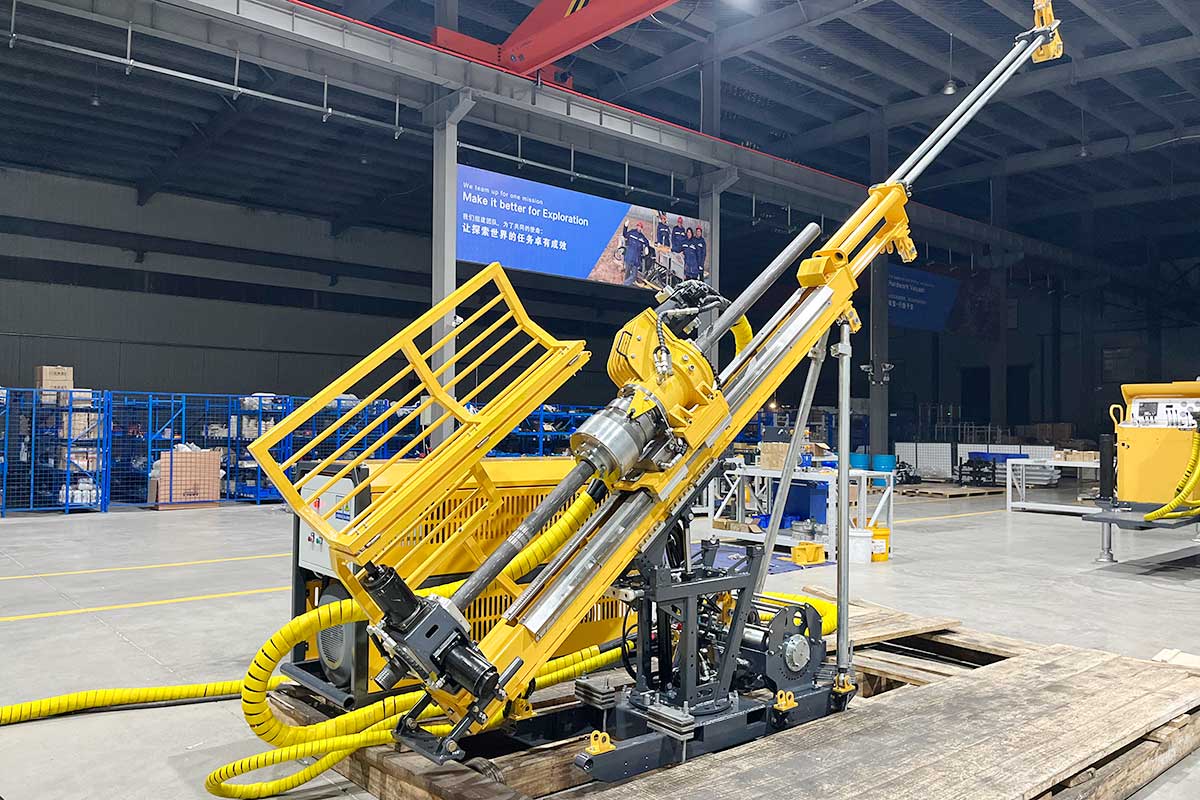

The UX600 Series are underground type of coring drill rigs, capable of driling for both surface and underground applications.
The drill is compact and modular design with flexible maneuverability for convenience to meet specific needs of operating conditions.
With the use of a hydraulic-operated positioner and a fast calibrating turntable, the dnil is easy for set up and capable of driling holes in all angles. The unique positioning mechanism requires no moving of the wireline hoist, from vertically up to vertically down.

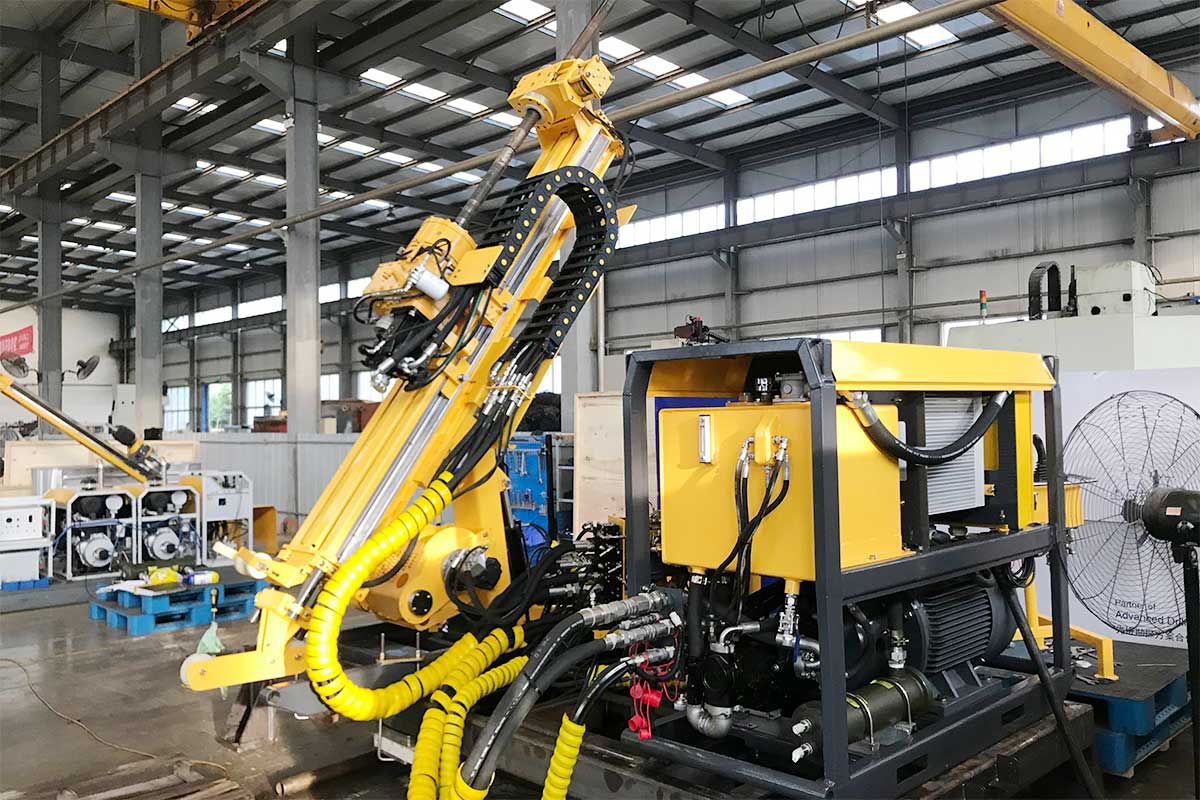

Equipped with a robust cylinder-driven feed frame and a intemational brand power pack, this drill provides high pullback force, fast drilling penetration and quick rod- handling rate. The drill uses an electric motor (optional for diesel) to power the hydraulics on the machine.

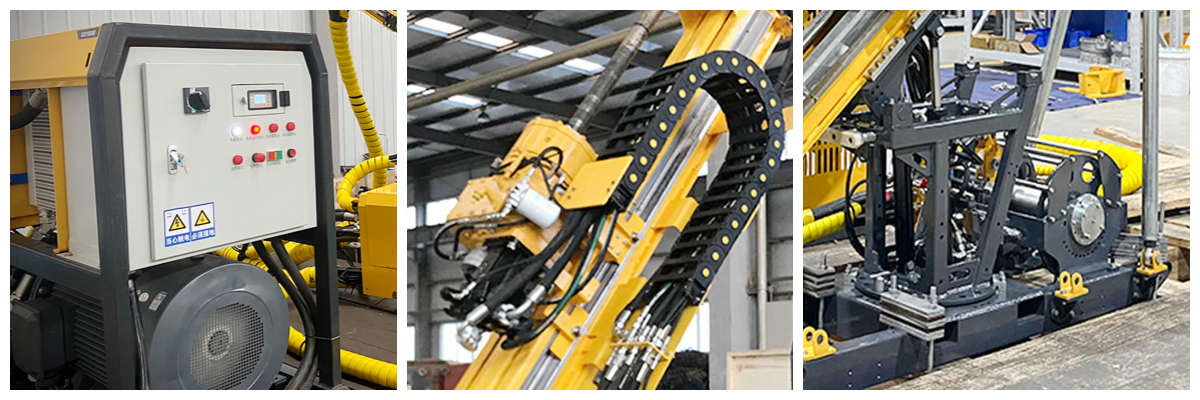

Product Details
The rigid but lightweight feed frame guard prevents risks of accidents. it is easy for manual positioning at any of the several retaining points.

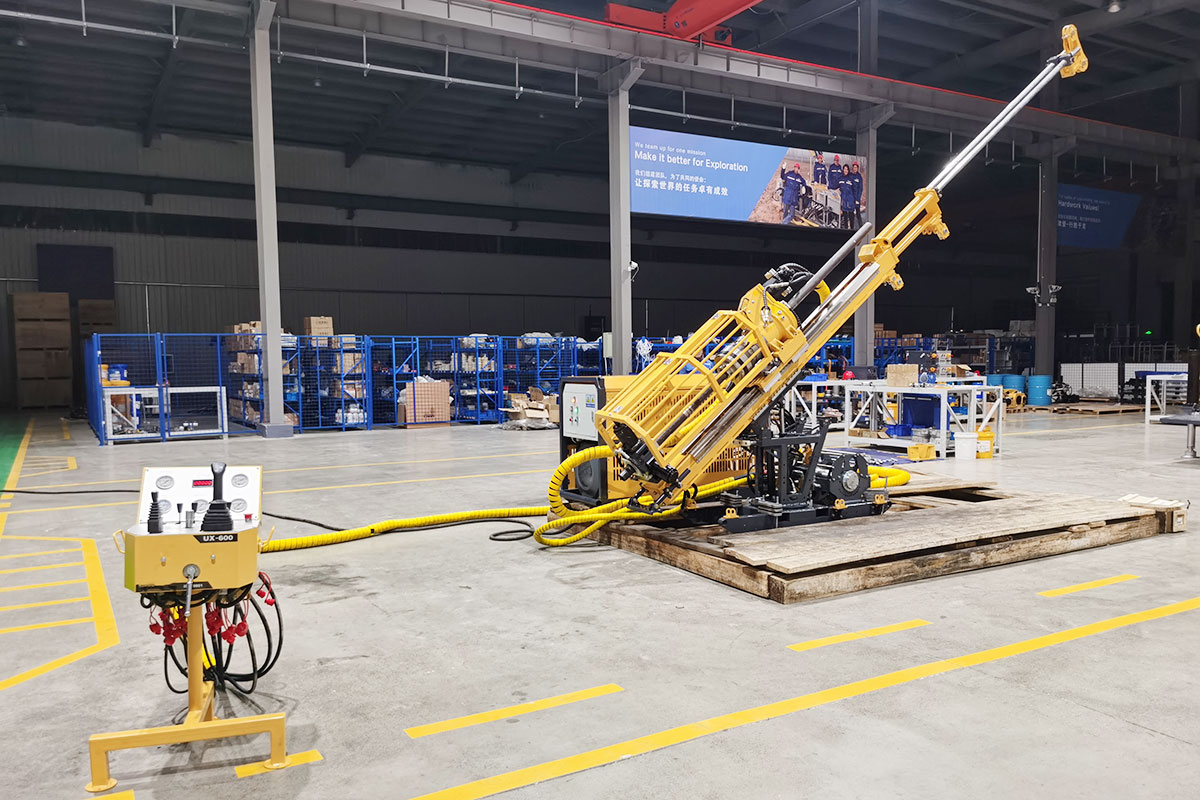

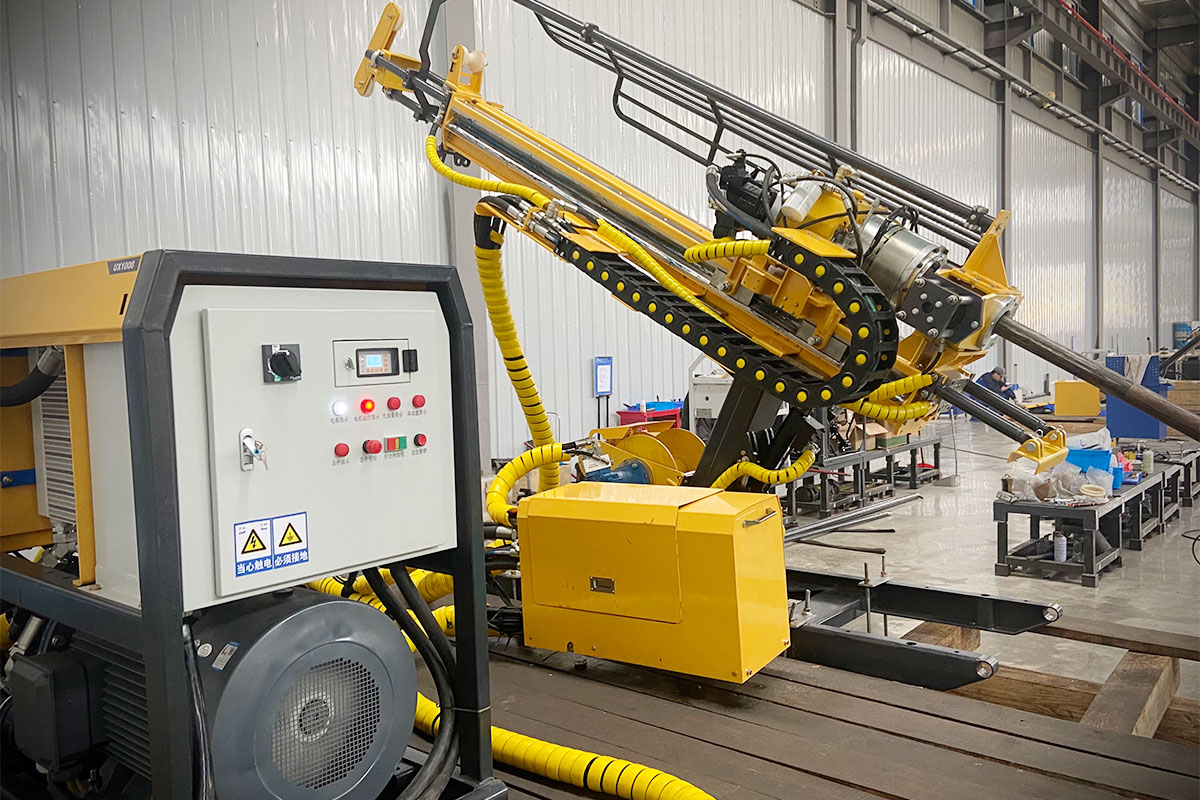

The control panel is pilot-hydraulic-control design equipped with user-friendly interface and monitoring gauges. The buttons and knobs are well crafted for hand comfort and operation accuracy providing excellent ergonomic control of the rig, as well as improved safely and productivity.
E-stop buttons on the control panel and the drill rig ensure urgent system shutoff against accidental situations.
Product Specifications
| Depth Capacity (B/N/H) | 600/500/220m |
| Power (Electric) | 60kw |
| Feed Stroke | 1.8m |
| Maximum Torque | 1800Nm |
| Hoisting Force | 68KN |
| Maximum Rod Diameter | 90mm |
| Suitable Rod Length | 1.5m/3m |
| Overall Weight (Reference ) | 2050KG |
| Handling Method | Towing |
