Exploration Drilling Rig Cheap Price
Powerful Christensen Head – High-torque through-hole chuck easily handles 3 m drill rods.

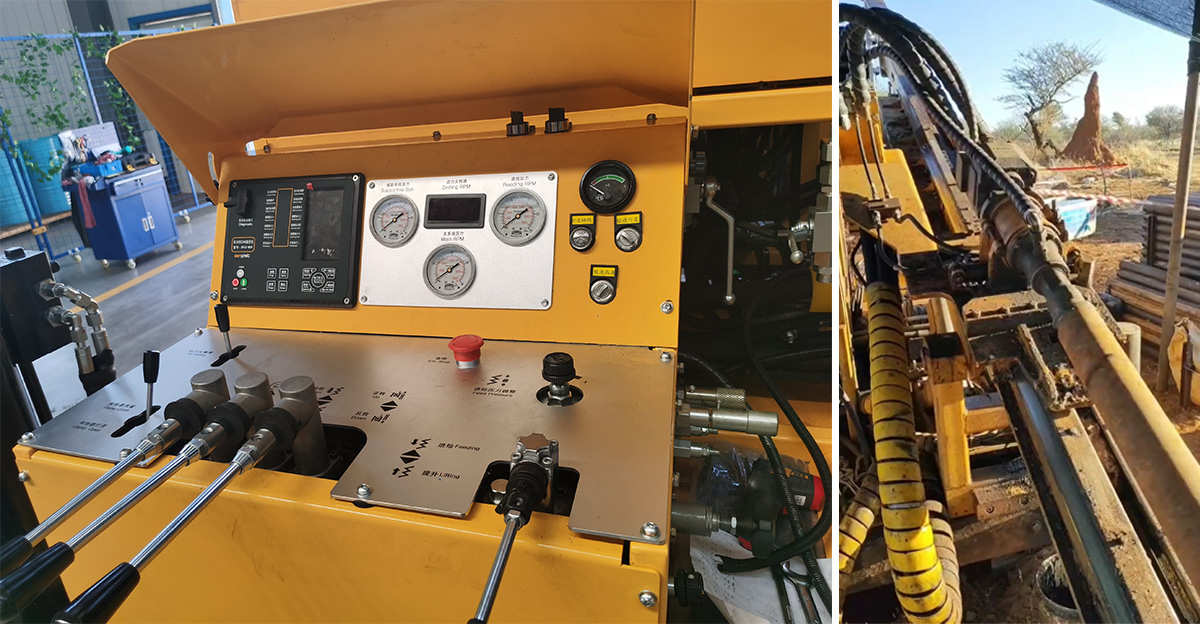

Smart Hydraulic Control – Precise, stable constant-pressure drilling with pilot control.
Sliding Feed Beam – Fast positioning and improved drilling stability.
Telescopic Mast & Leveling Legs – Easy setup, accurate positioning, supports long rods.
Quick Rod Clamp – Nitrogen spring system for fast, reliable clamping.
Wireless Crawler (Optional) – Remote operation for safe, flexible movement on rough terrain.
Product Introduction

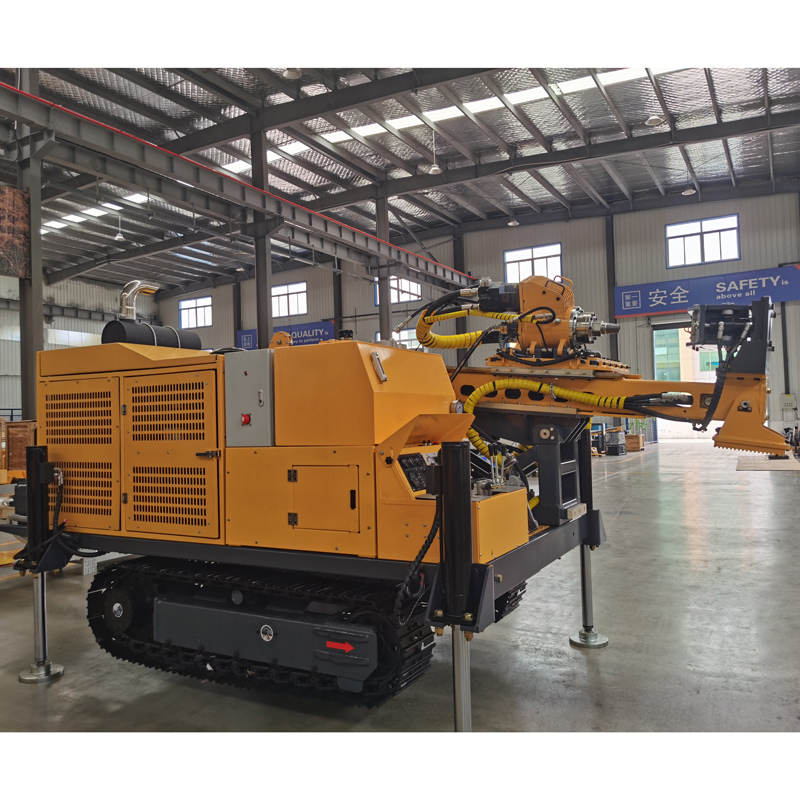

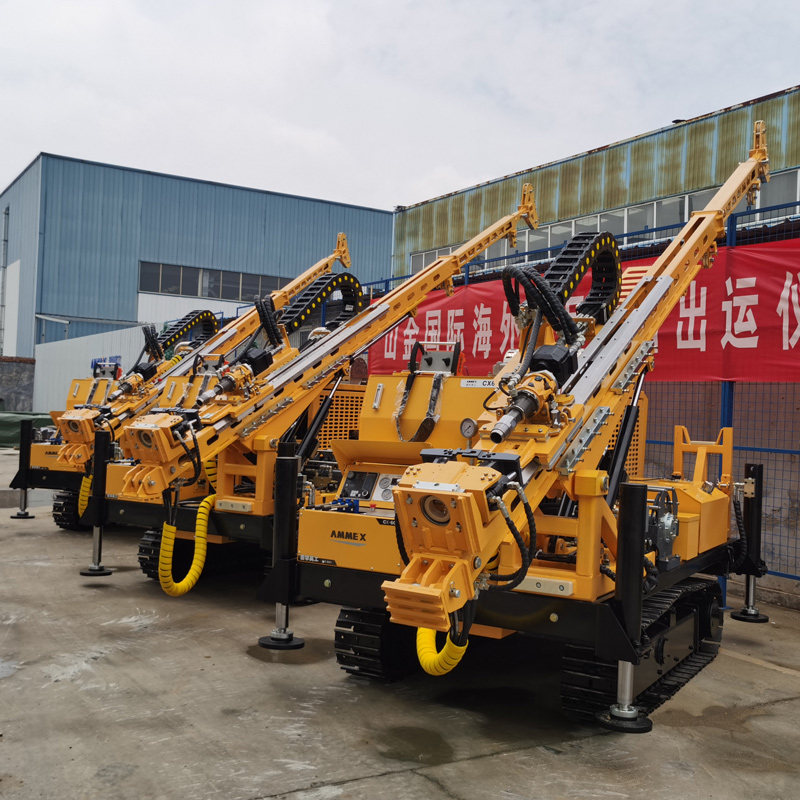

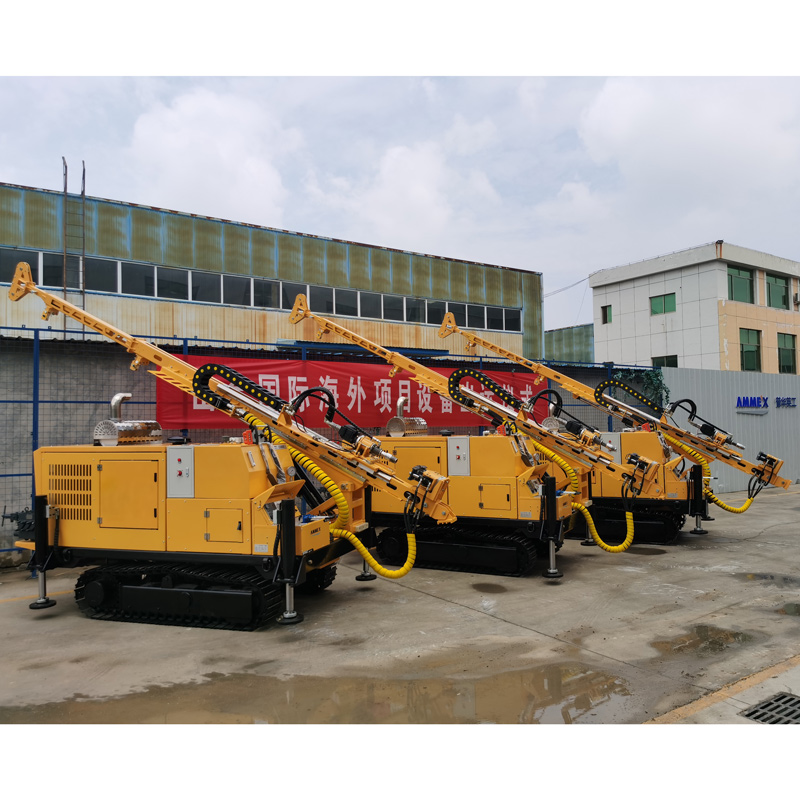

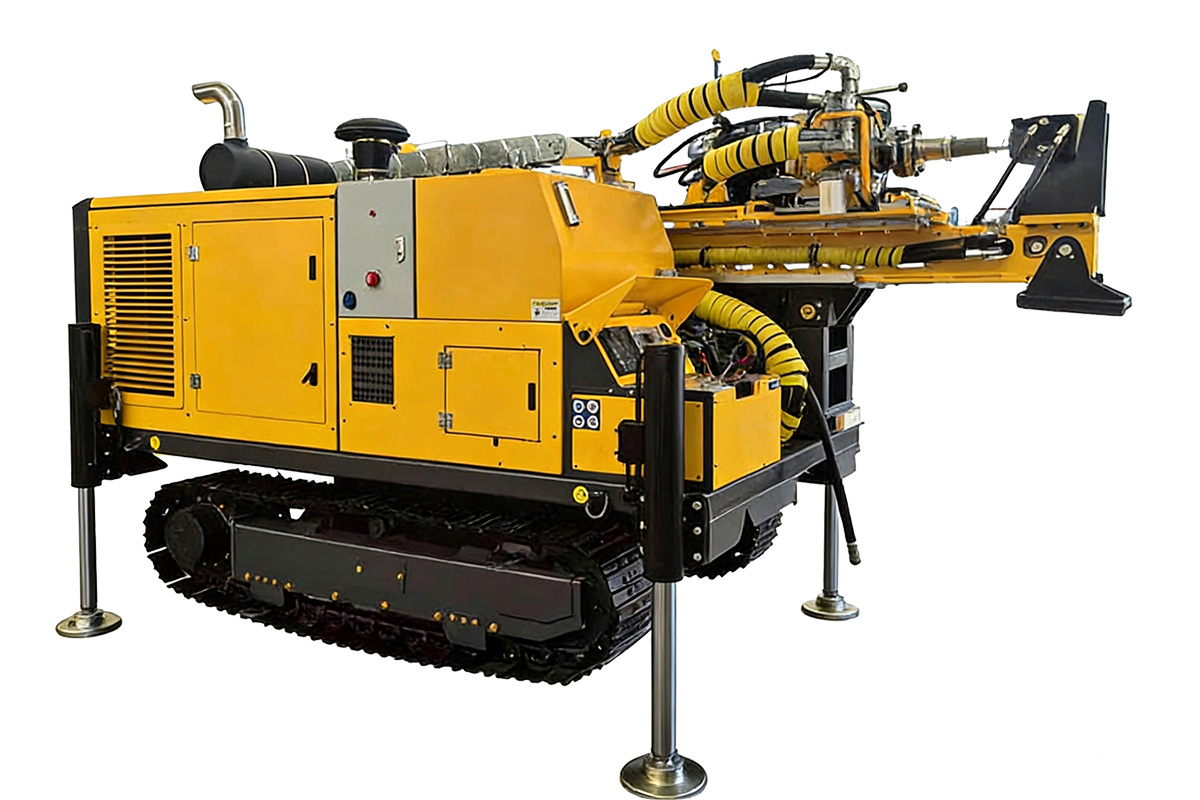

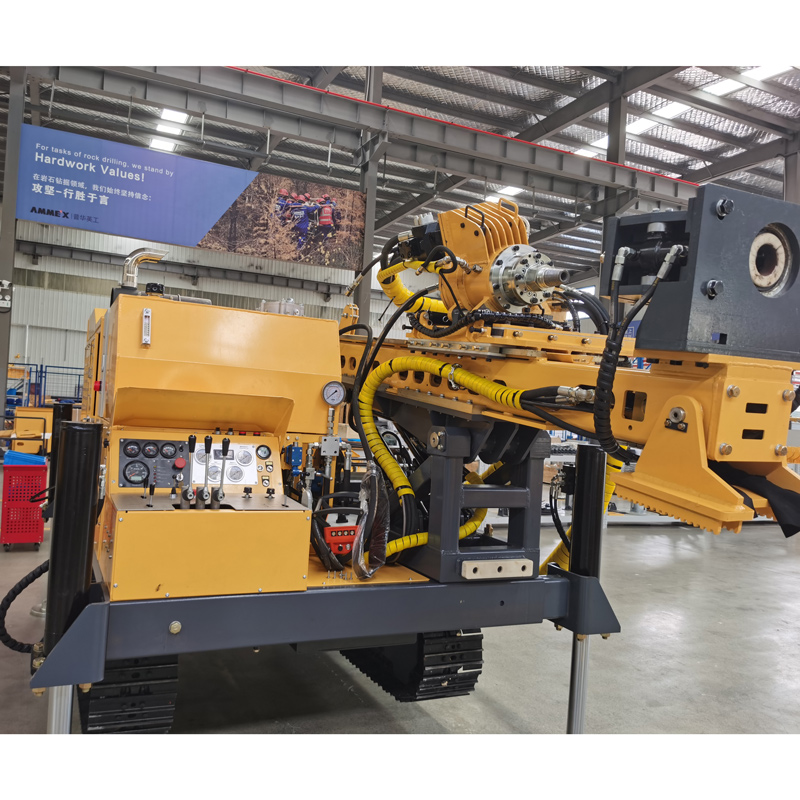

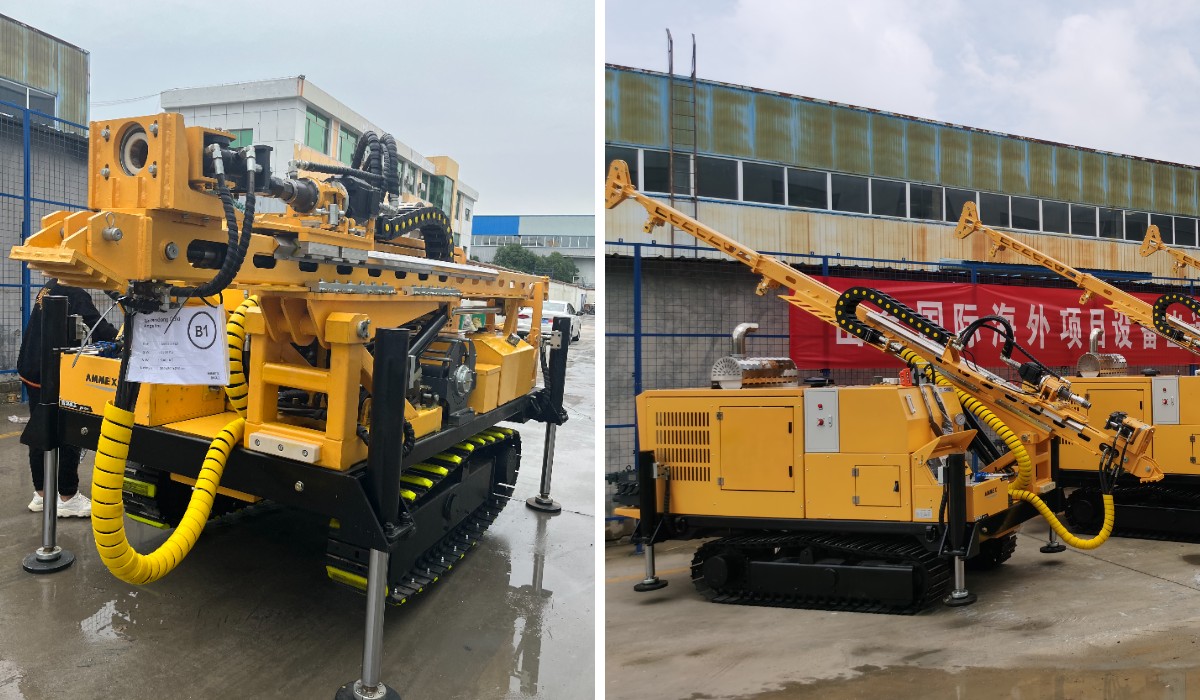

CX800 Core Drilling Rig is designed for various types of exploration operations, offering exceptional productivity and outstanding mobility. The CX800 is equipped with a sliding box-type feed beam, hydraulic leveling jacks, and an extendable mast, enabling fast and precise positioning of the rig.
It features a wireless remote-controlled crawler system, making it adaptable to different terrains and allowing safe-distance operation to prevent potential hazards. Standard safety warning systems and emergency stop buttons further enhance the rig’s safety and operability.
This advanced design makes the CX800 an ideal choice for efficient, flexible, and safe surface core drilling applications.
Product Details
Product Specifications
Drilling Capacity | B / N / H: 880 / 780 / 480 m (CX800) |
B / N / H: 1060 / 960 / 560 m (CX1000) | |
Maximum Rod Size: P (114 mm) | |
Power Unit | Model: Cummins 4BT water-cooled diesel engine |
Power: 105 / 123 kW @ 1800–2200 RPM | |
Feed System | Stroke: 1.8 m |
Feed Force: 59 kN / 65 kN | |
Pull Force: 118 kN / 128 kN | |
Power Head | Drive Type: Variable hydraulic motor |
Max Torque: 2000 Nm / 2400 Nm | |
Wireline Winch | Rope Capacity: 800 m (ID 6 mm) |
Pulling Force: 11 kN | |
Rod Clamp | Through-hole Diameter: 120 mm |
Clamping Force: 5000 kg | |
Hydraulic System | Main Pump: 25–28 MPa, 112–135 L/min |
Auxiliary Pump: 21–25 MPa, 22–30 L/min | |
Third Pump: 15 MPa, 10 L/min | |
Crawler (Optional) | Drive Type: Hydraulic |
Track Type: Rubber Track | |
Control: Wireless Remote | |
Travel Speed: up to 3 km/h | |
Dimensions & Weight (Transport Mode) | L × W × H: 5150 × 2700 × 2340 mm |
Weight: 3600 kg | |
Optional Attachments | Hydraulic torque mixer |
Hydraulic mud pump: 160 L/min @ 7 MPa |

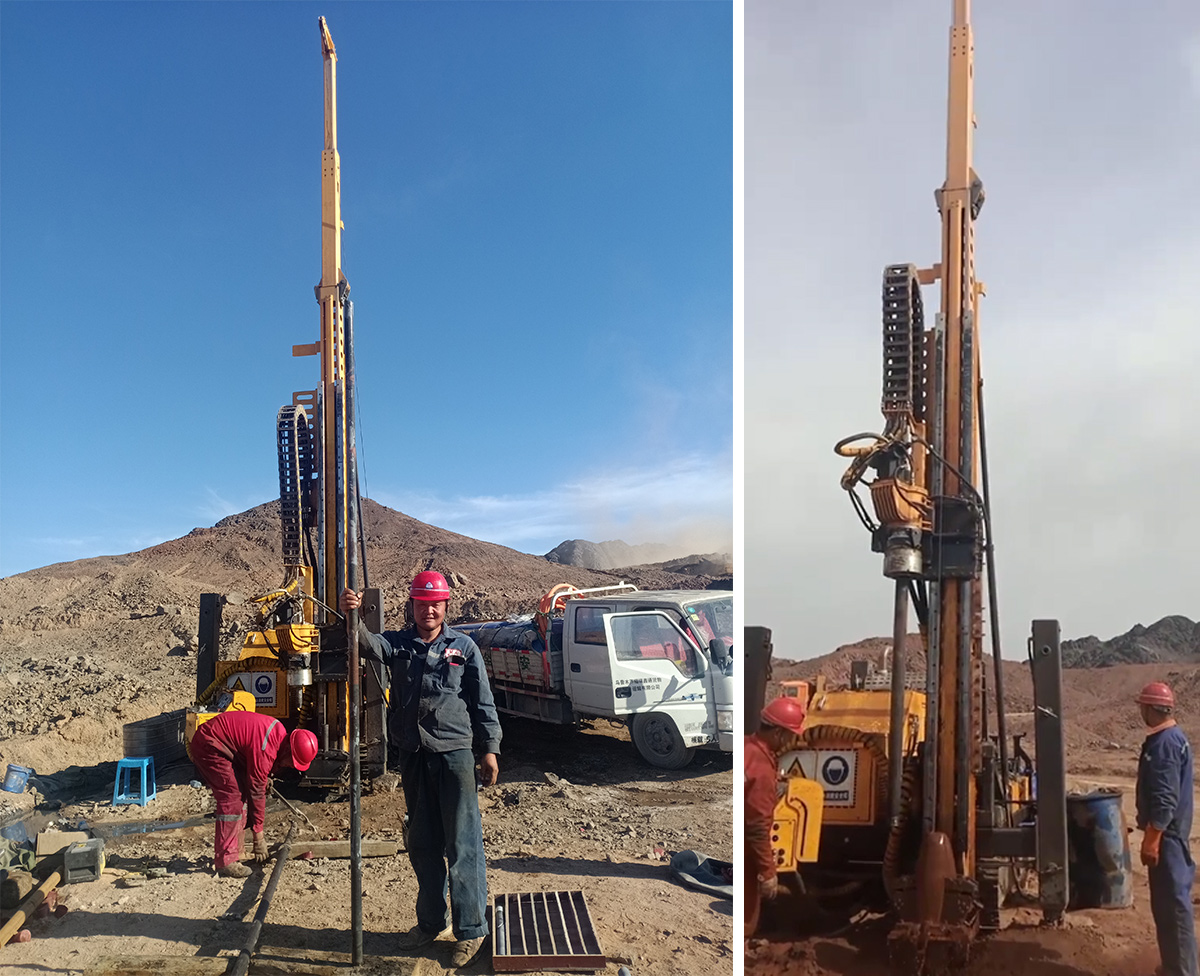

Application Scenarios
The CX800 Core Drilling Rig is designed for a wide range of geological and exploration drilling tasks. It is ideal for mineral exploration, geotechnical investigation, core sampling, and scientific research drilling in complex terrains. With its powerful torque output, intelligent hydraulic control, and telescopic mast, the CX800 can efficiently handle both surface and shallow-depth coring operations using 3-meter drill rods.
Thanks to its wireless remote-controlled crawler chassis and hydraulic leveling legs, the rig can easily adapt to various ground conditions such as mountains, plateaus, and uneven sites. This makes it especially suitable for field exploration in remote or rugged environments, ensuring high productivity, stability, and safety during continuous drilling operations.
Packaging & Shipping
The CX800 Core Drilling Rig features a compact structure and optimized dimensions, allowing for easy and cost-effective transportation. The rig can be loaded into standard 20ft or 40ft containers for international shipping or transported by flatbed truck for domestic delivery.
Its foldable mast, detachable feed beam, and hydraulic crawler undercarriage make disassembly and reassembly simple, reducing overall transport height and volume. This ensures safe handling and efficient logistics during long-distance transit.
For field operations in remote areas, the CX800 can be self-propelled via its crawler tracks or towed by construction vehicles, enabling flexible deployment and quick site relocation—ideal for dynamic exploration projects across diverse terrains.

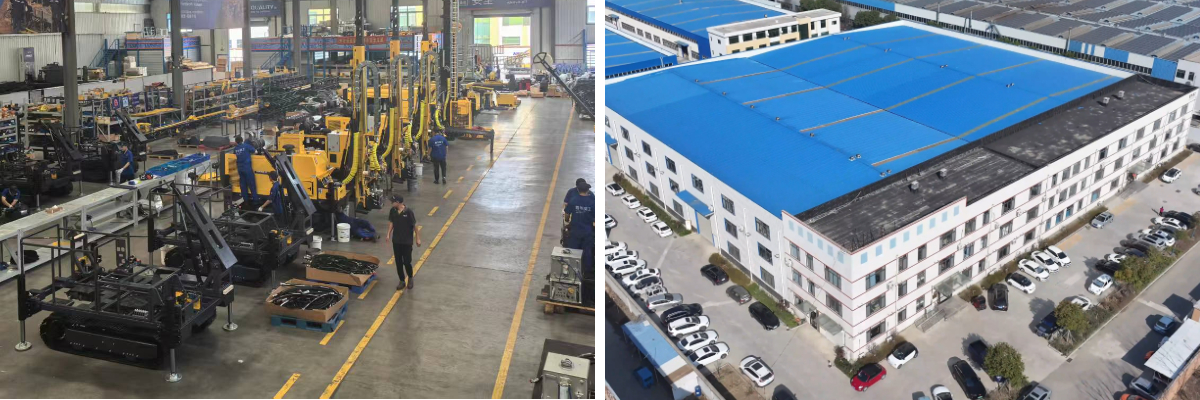

Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., established in 2003 in Jining, China, is a high-tech enterprise dedicated to the development and manufacturing of geological exploration, intelligent mining, and new energy equipment. With advanced R&D capabilities and precision production technology, Puhua delivers high-performance drilling rigs, smart underground transport systems, and customized engineering solutions for global mining operations.
The company partners with more than 30 leading mining groups, including Shandong Energy, Yintai Gold, and Shandong Gold, and exports its products to over 120 countries and regions. Backed by ISO9001 certification and an overseas R&D center in Canada, Puhua’s equipment operates reliably across challenging terrains—from high plateaus to arid deserts. Renowned for its innovation, efficiency, and dependability, Puhua has become a trusted global supplier in the energy and mining industries.
