Best water and gas drilling rig
High efficiency- Adopt water and gas dual-use technology, suitable for different geological conditions, and improve drilling efficiency.
Stability-The structure is stable and the seismic performance is superior, which ensures the safety and stability of the drilling process.
Easy to operate- User-friendly design, simple operation and easy maintenance.
Energy-saving and environmentally friendly-Low energy consumption design to reduce environmental impact
Versatility- Water and gas dual-use, adapt to different geological conditions, strong flexibility.
Energy-efficient- Fast drilling, low energy consumption, economical and practical.
Product Introduction

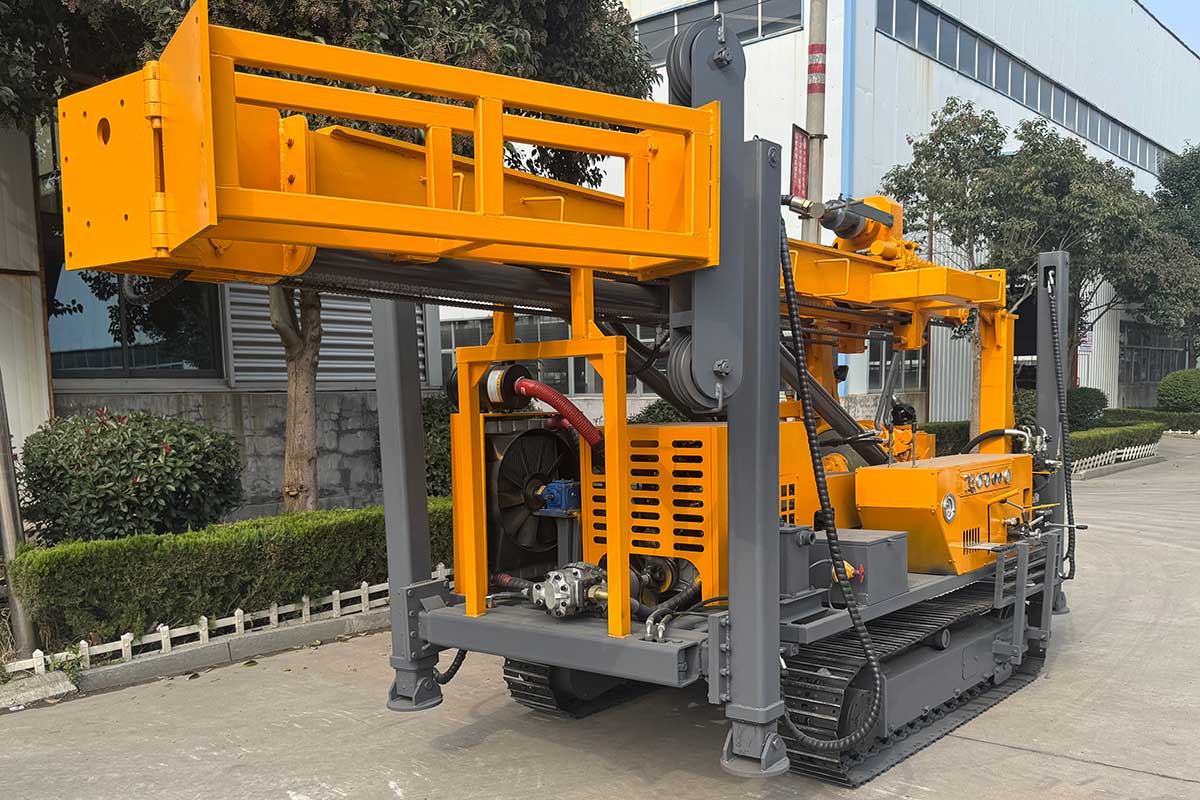

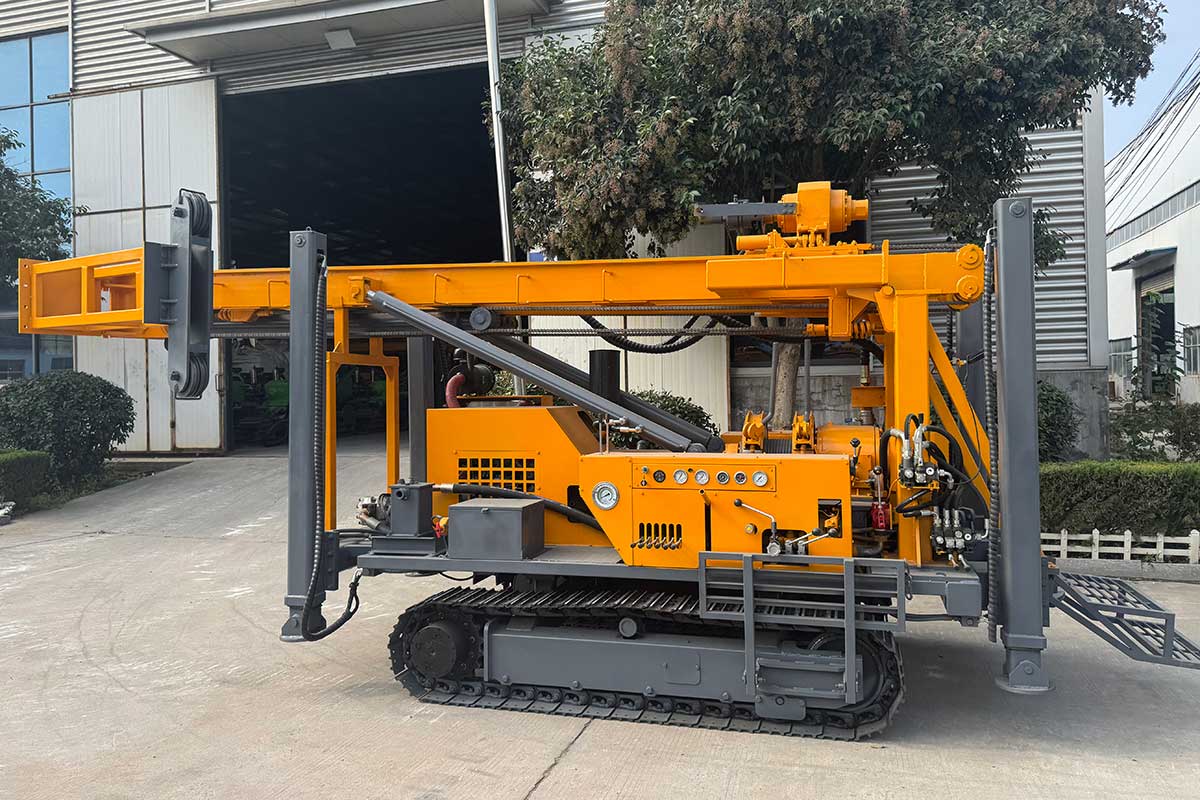

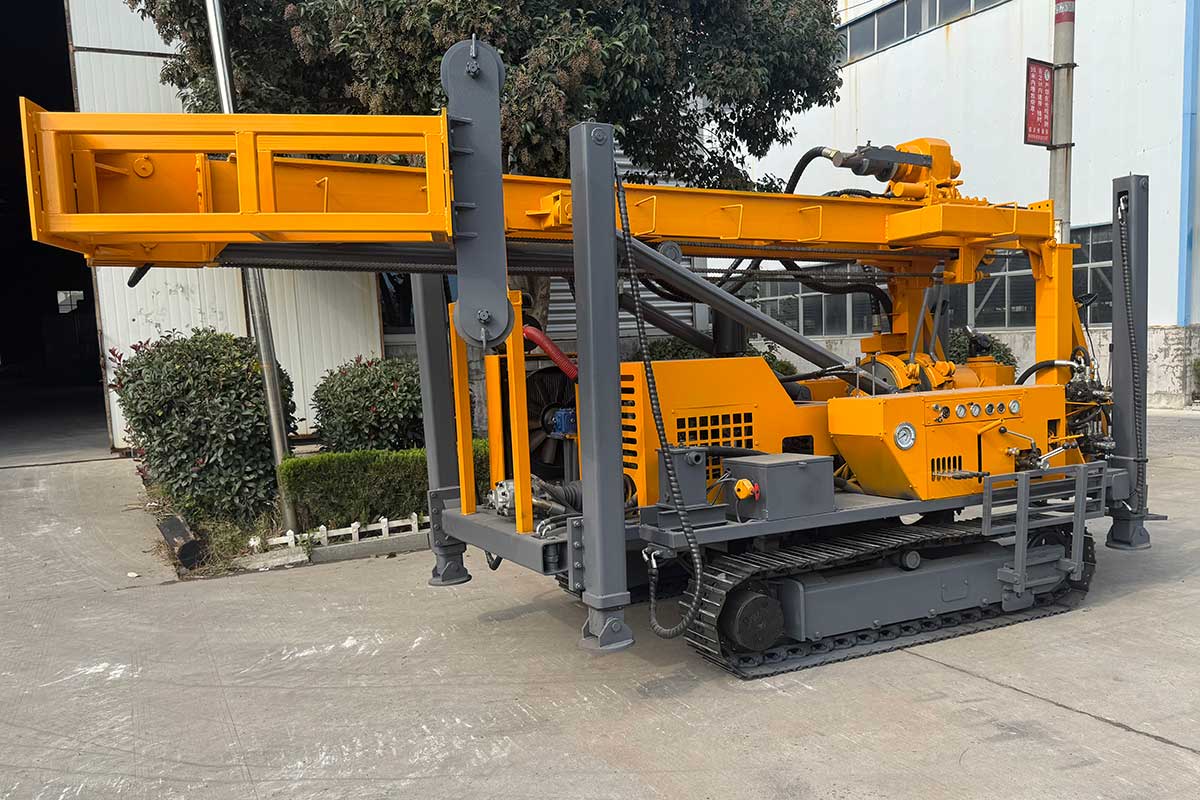

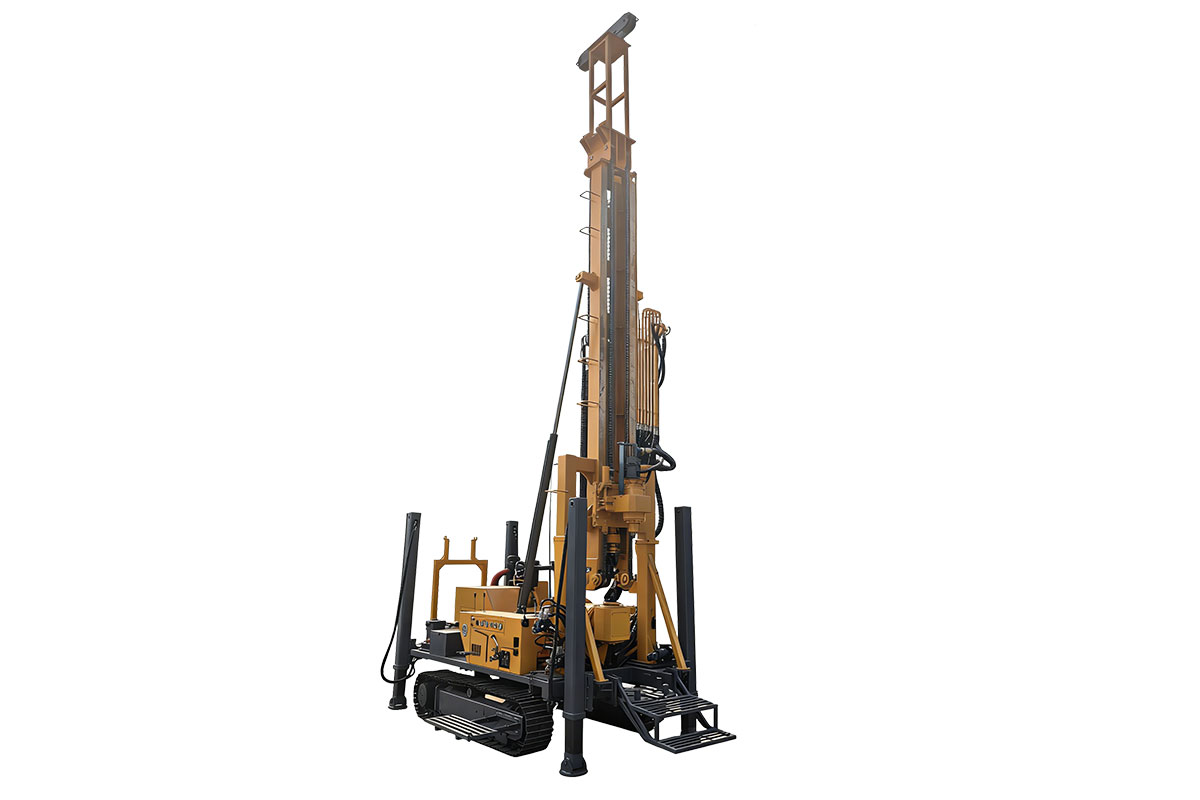

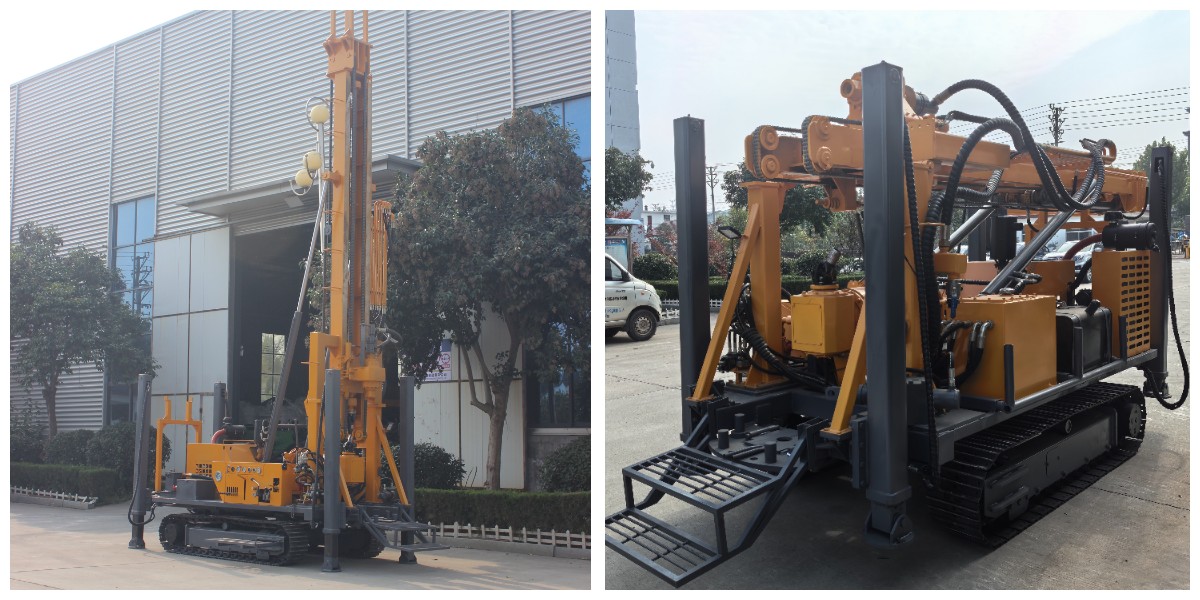

PQZ280L mechanical top drive driling rig is a kind of driling equipment independently developed by the companythat integrates the functions of water driling and air driling (China invention patent: ZL201510479602.4). The driling rig adoptsa 5-speed manual automobile gearbox and a mechanical top drive power head. lt has a wide speed range, convenient forwardand reverse switching, high mechanical transmission efficiency, and greatly reduced power energy consumption. it is moreefficient and energy-saving, which solves the problems of dificult air DTH hammer driling in soil layers and low constructionefficiency of rotary drilling rias in hard rock lavers, aravel and pebble lavers
Product Details
1.the drilling rig speed can reach 33-1120r/min speed range, and the maximum torque output is 9800N.m.
2.The drilling rig adopts long travelling speed doubling mechanism, mechanical power head, and power head travelling 2000MM, which is used to improve the drilling efficiency and reduce the occurrence of plugging and burning accidents.
3.The drilling rig adopts double oil pumps for oil supply, single pump for drilling and double pumps for merging when lifting down the drill; less power loss and short auxiliary time.
4.It adopts crawler chassis, and the outrigger cylinder stroke is 1.5m which can be loaded automatically, and it is convenient to relocate and transport.
5.Drilling rig in the mechanical. Hydraulic system reserved part of the function interface, according to the different users of the process requirements for the expansion of the function.
Product Specifications
| Weight | 4800kg |
| Dimension (transport) | 5600*1900*2600mm |
| Dimension (working) | 3800*2300*7000mm |
| Drilling angle | 75-90° |
| Drilling depth for water well | 200m |
| Wireline coring N size | 350m |
| Borehole (Drill bit) dia. | φ 75-220mm |
| Drill head lifting force | 100kN |
| Drill head feeding force | 50kN |
| Rotary speed RPM | Forward:33-1120rpm Reverse:37-180rpm |
| Max. Torque | 9800N.m |
| Drill head feed stroke | 2500mm |
| Drill pipe dia. | φ 60、φ 76、φ 89mm NQ/HQ/PQ |
| Engine Model | YN27GBZ |
| Rated power/speed | 58kw/2400rpm |
| Walking speed | 0-2km/h |
| Climbing angle | 25-30° |
| Mechanical winch capacity | 30kN |
| Mud pump | BW160/BW200/BW250(0ptional) |
| Crawler chassis | Steel 300mm*38 Sections |
| Crawler load | 6000kg |

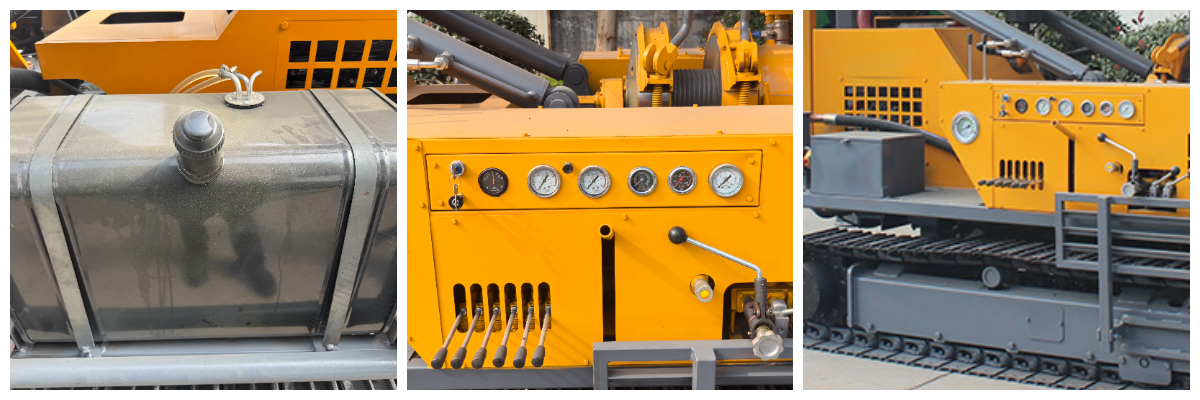

1.Powerful Mechanical Drive – Stronger power for more efficient and stable performance
2.High-Force Winch System – Single-rope lifting with exceptional pulling power
3.Precision Wireline Coring – Fast, efficient, and accurate core extraction
4.Dual Water-Gas Drilling – Versatile drilling with water or gas; no more repeated purchases
Company Strength

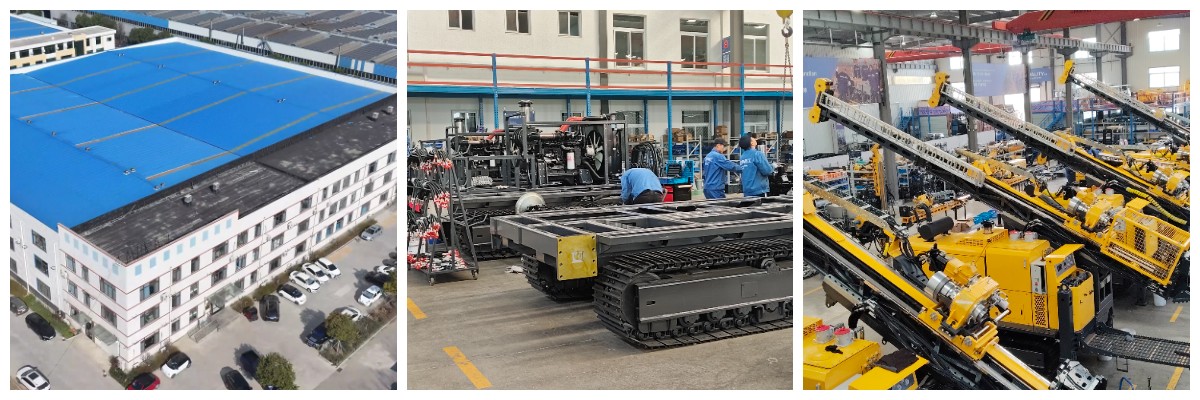

Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
