Best Quality Exploration Drilling Rig
Telescopic Mast – Enables quick transition from transport to working position.
Hydraulic Support Cylinders – Allow fast rig setup and easy positioning for multi-angle drilling.
Top Drive Power Head – Compact design delivering excellent mechanical transmission efficiency and operational reliability.
Hydraulic Clamps – Fast action and quick response, equipped with pressure-loss protection to ensure safety.
Remote-Controlled Crawler – Provides high mobility and flexibility, ensuring operator safety and comfortable control.
Product Introduction

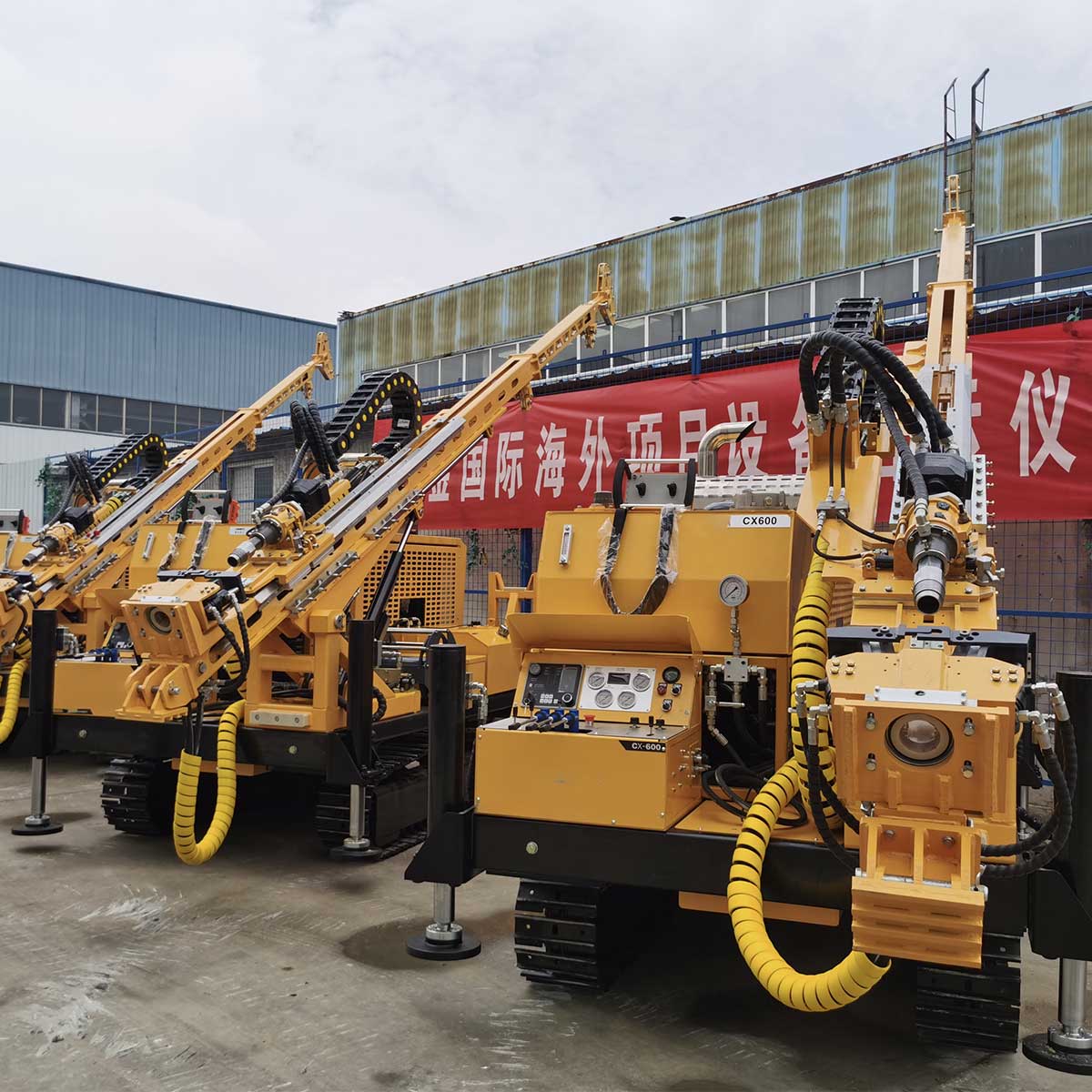

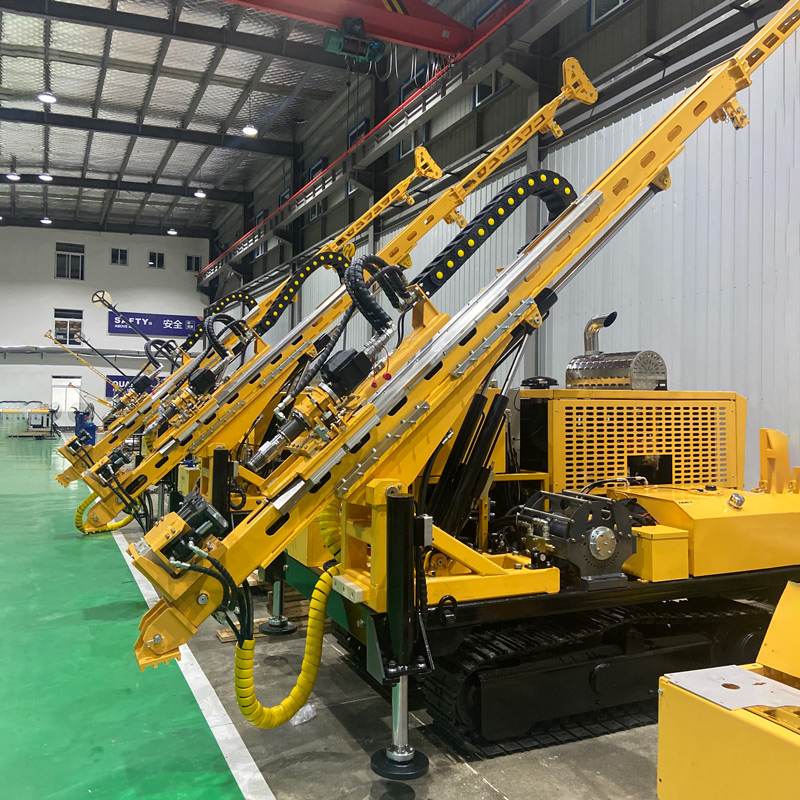

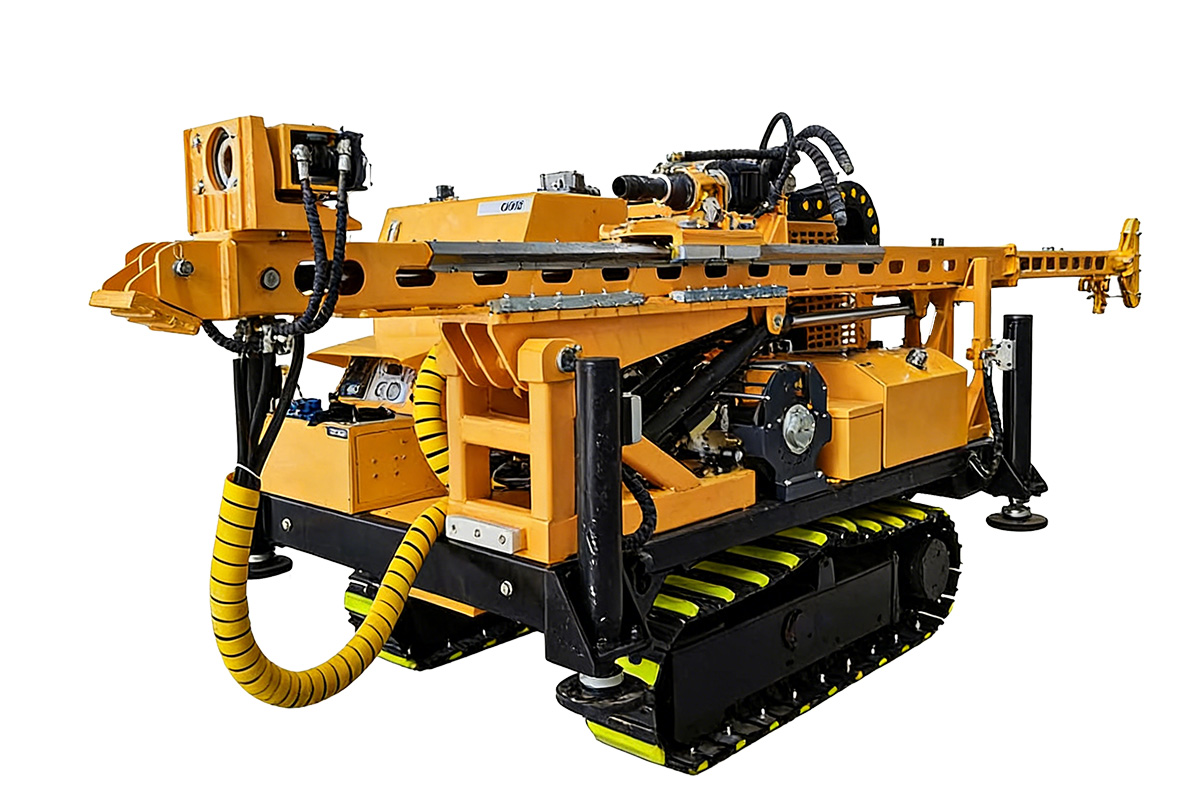

The CX600 Exploration Drilling Rig from Puhua Energy represents a new generation of lightweight crawler rigs designed for medium-depth drilling operations across various conditions. With compact structure and high mobility, the CX600 ensures excellent drilling performance and operational efficiency.
Its sliding feed beam and telescopic mast, combined with hydraulic support cylinders, allow for rapid setup, precise positioning, and effortless multi-angle drilling. The hydraulic crawler chassis is driven by wireless remote control, offering easy operation, flexible maneuverability, and enhanced safety.

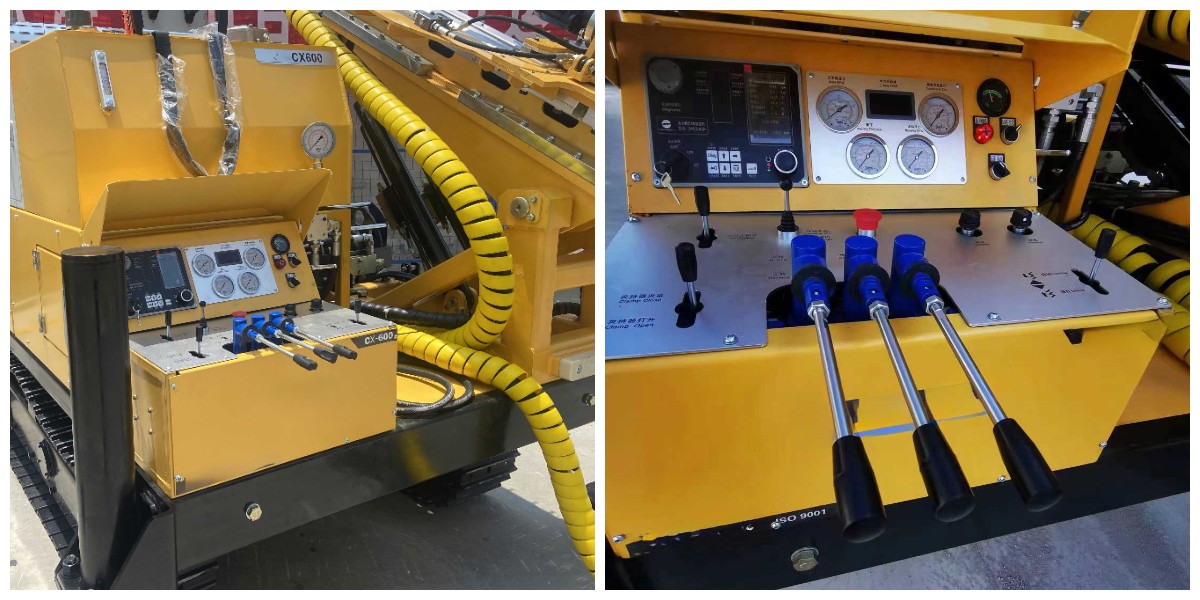

The ergonomic control panel with adjustable operating station provides comfort and optimal working position. Built on advanced hydraulic integration technology and international design standards, the CX600 reflects superior manufacturing quality, durability, and user-friendly operation.
Product Details
Product Specifications
Category | Details |
Drilling Capacity (Reference) | B/N/H: 550/350/180 m |
Maximum Drill Bit Specification: P (114 mm) | |
Power Station | Model: Cummins 4BT; |
Power: 95 kW / 1800 RPM | |
Feed System | Feed Stroke: 1.8 m; |
Feed Force: 59 kN; | |
Pull-back Force: 138 kN | |
Power Head | Drive Mode: Hydraulic Motor |
Torque: Max 1150 Nm | |
Rope Winch | Rope Capacity: 800 m (ID4.76 mm) |
Lifting Force: 11 kN | |
Drill Pipe Holder | Maximum Through Diameter: 120 mm |
Clamping Force: 5000 kg | |
Hydraulic System | Main Pump: 22 MPa - 112 l/min |
Auxiliary System: 15 MPa - 22 l/min | |
Travel Crawler | Control Mode: Wireless Remote Control; |
Speed: Max 3 km/h; | |
Climbing Ability: 30° | |
Overall Dimensions (Transport State) | L x W x H: 5150 x 2700 x 2340 mm; |
Weight: 5000 Kg | |
Optional Configuration | Hydraulic Flushing Pump |
Hydraulic Slurry Mixer |
Application Scenarios
The CX600 lightweight crawler core drilling rig is widely used across multiple fields:
Mineral Exploration – Provides contamination-free core samples for accurate resource estimation, achieving fast penetration rates (200–300m/day).
Geotechnical Investigation – Collects soil and rock data to assess stability and strength for infrastructure projects like dams, tunnels, and bridges.
Water Well Drilling – Efficiently drills high-yield wells in remote areas, supporting communities with reliable water supply.
Environmental Monitoring – Installs groundwater monitoring wells and collects soil samples for pollution assessment and remediation.
Blast Hole Drilling – Creates precise blast holes in mining operations, improving safety and efficiency.
Other Engineering Fields – Suitable for ground-source heat pump holes, foundation reinforcement, slope stabilization, grouting, tunnel support, and hydrological wells.

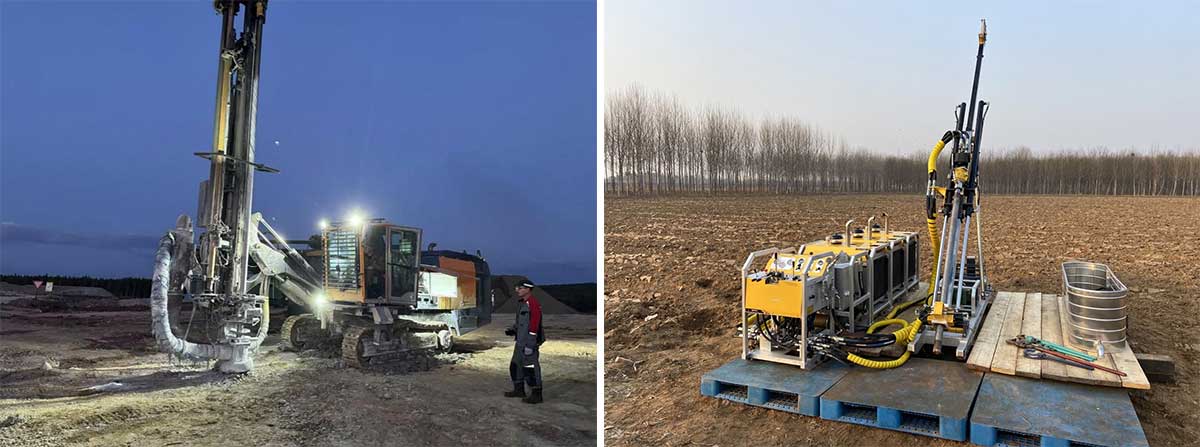

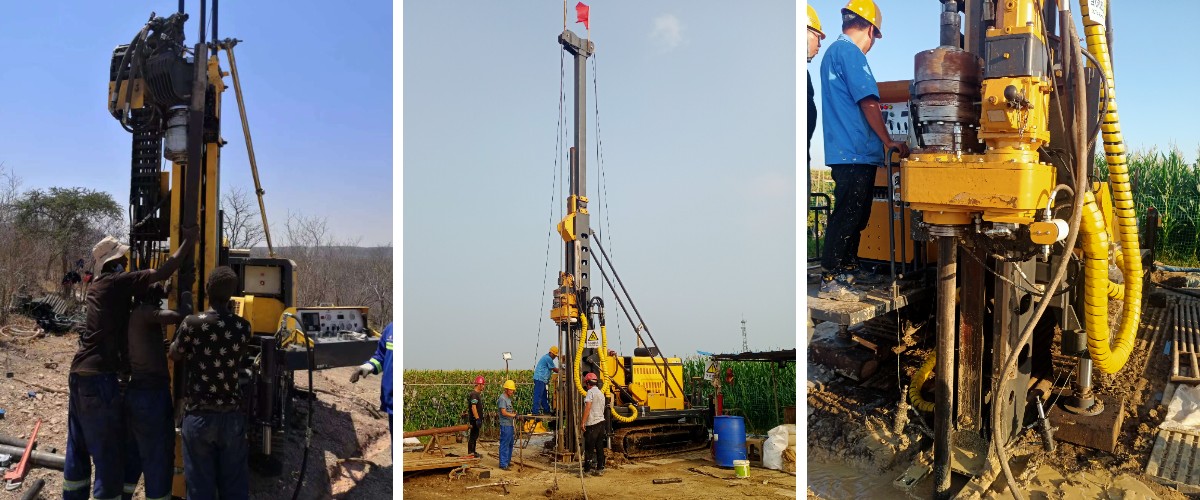

Project Cases
Packaging & Shipping
The RC Drilling Machine is securely packed to ensure safe and reliable delivery. Each unit is carefully wrapped with moisture-proof and corrosion-resistant materials, with key components reinforced and fixed inside a customized steel frame or wooden crate to prevent vibration and impact during transit. All hydraulic and electronic parts are sealed to avoid dust and water ingress.
Before shipment, the machine undergoes strict inspection and testing, ensuring it is fully functional upon arrival. Depending on customer requirements and destination, transportation can be arranged by container, flatbed truck, or bulk cargo, with clear labeling and documentation for smooth customs clearance. This professional packaging and logistics process guarantees that the RC drilling rig reaches global customers in perfect condition, ready for immediate operation.

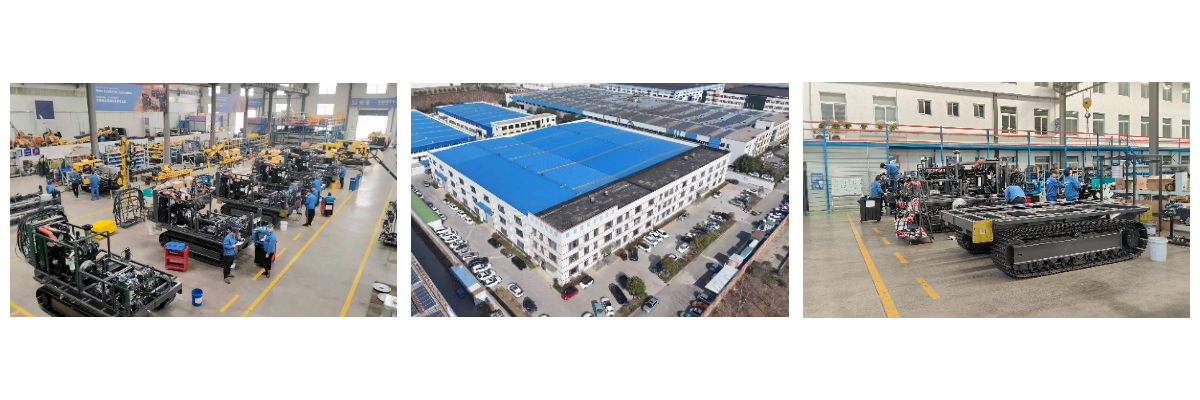

Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a high-tech enterprise specializing in geological exploration equipment, intelligent mining equipment, and new energy equipment. With strong R&D capabilities and advanced manufacturing, Puhua provides high-precision drilling rigs, intelligent underground transportation systems, and customized solutions for global mining projects.
The company serves over 30 major mining groups including Shandong Energy, Yintai Gold, and Shandong Gold, and exports to 120+ countries and regions. Certified by ISO9001, supported by an overseas R&D center in Canada, and operating in diverse environments from high plateaus to deserts, Puhua has earned worldwide recognition for its reliable performance, efficiency, and innovation in the energy and mining sectors.
