Portable Drilling Rig for Sale
• Utilizes integrated power system control technology to enable operation and monitoring of all engines from the control console;
• Employs industry-leading balanced pressure drilling technology to equalize drill string pressure and precisely control drilling pressure, enhancing performance in complex formations;
• The clamp features pressure loss protection for safety, reliability, and rapid response to prevent accidental rod drop.
• Unique adjustable powerhead sliding clearance maintains tight rail contact, eliminates drilling vibration, and ensures drilling concentricity;
• Equipped with Kubota high-performance turbocharged engines, enhanced power reserves, and optimized system configuration significantly improve high-altitude adaptability.
• The modular mast features automatic telescoping, offering a compact, stable, and reliable structure.
• The proprietary lightweight drilling rig mud handling system utilizes a custom North American high-pressure mud pump, delivering light weight while handling high-solids mud and circulating mud.
• Electric or diesel power units can be freely selected based on requirements.
• Manufactured with industry-leading production techniques, delivering exceptional quality that is consistent inside and out.
Product Introduction

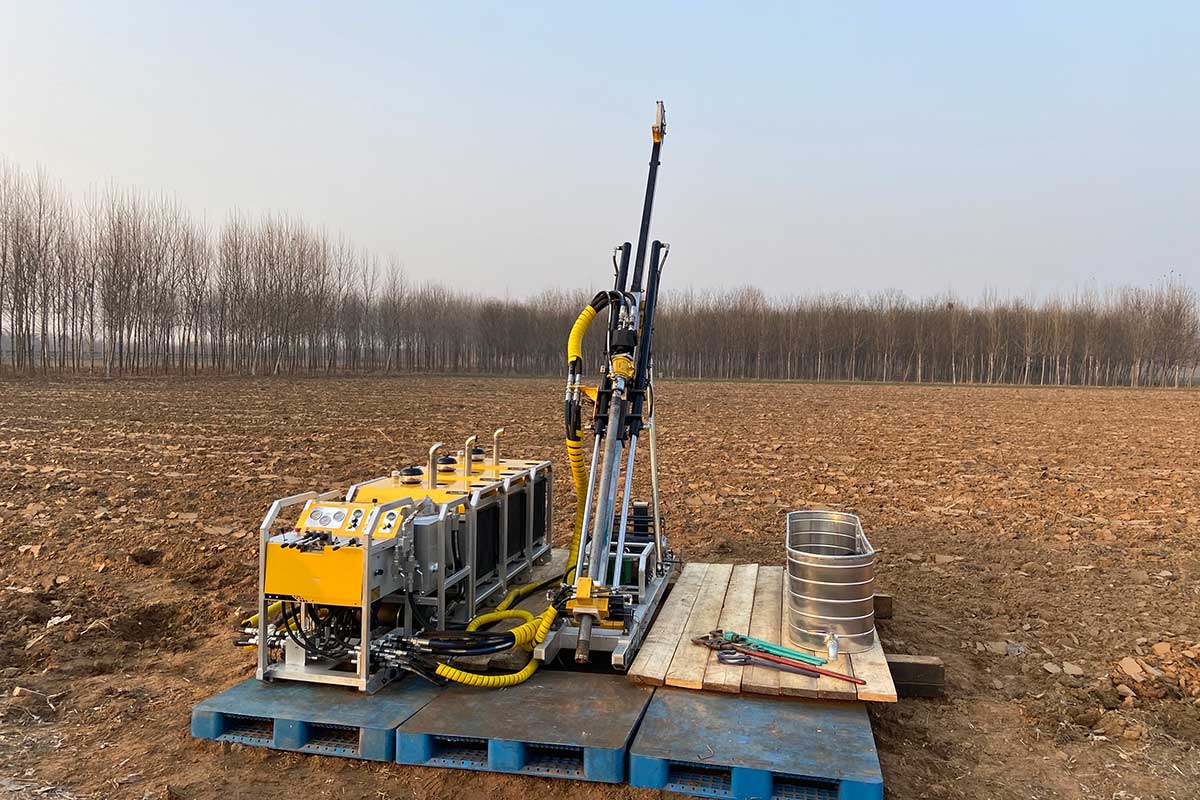

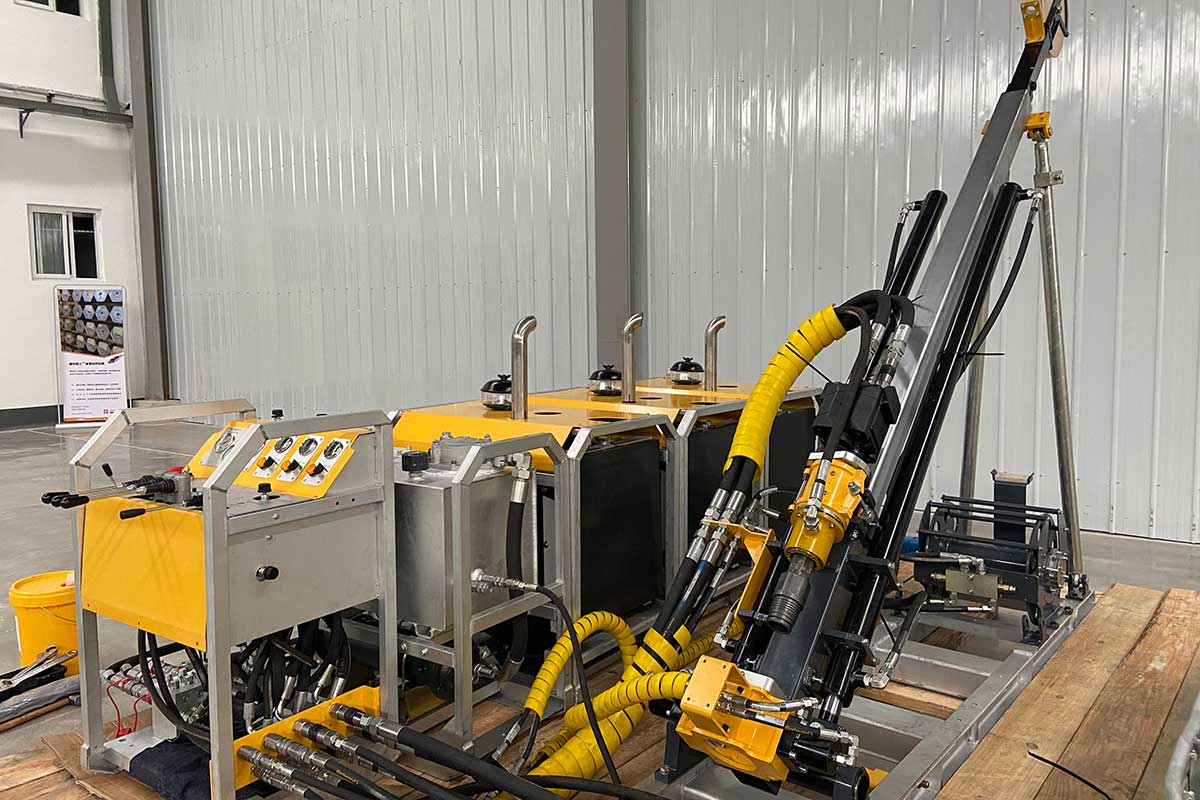

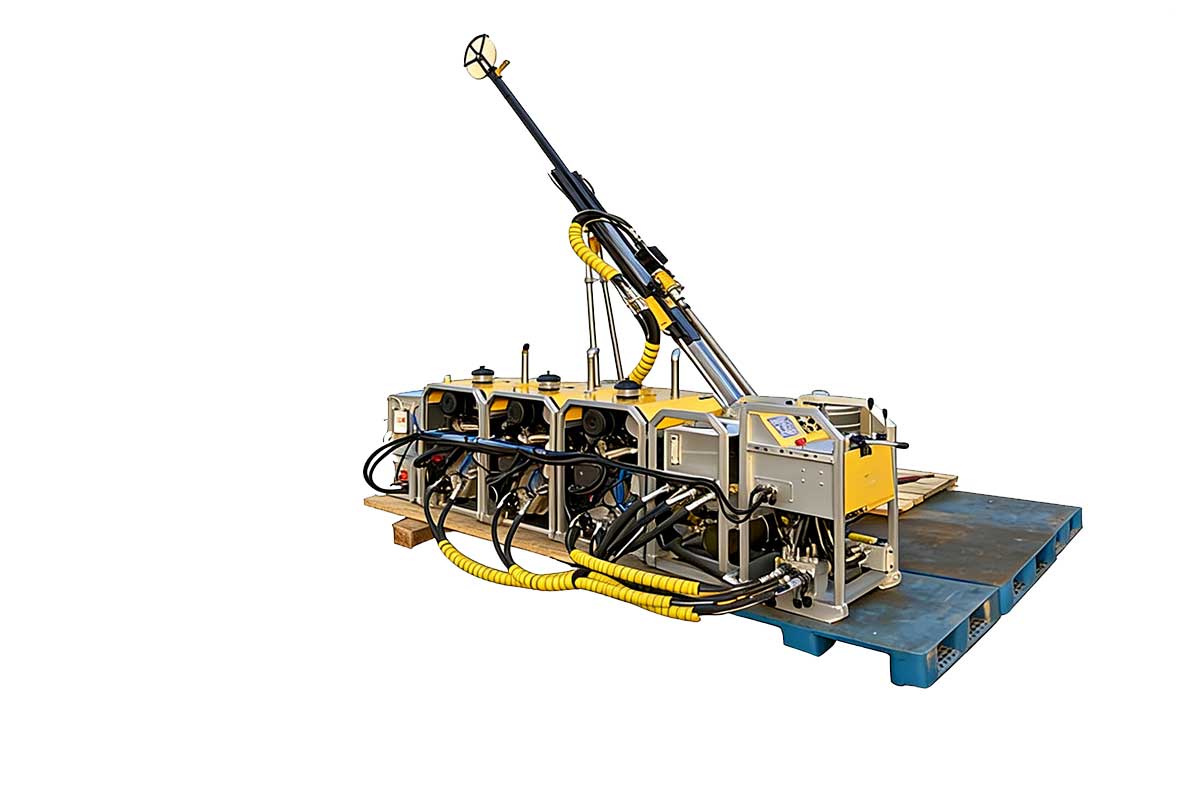

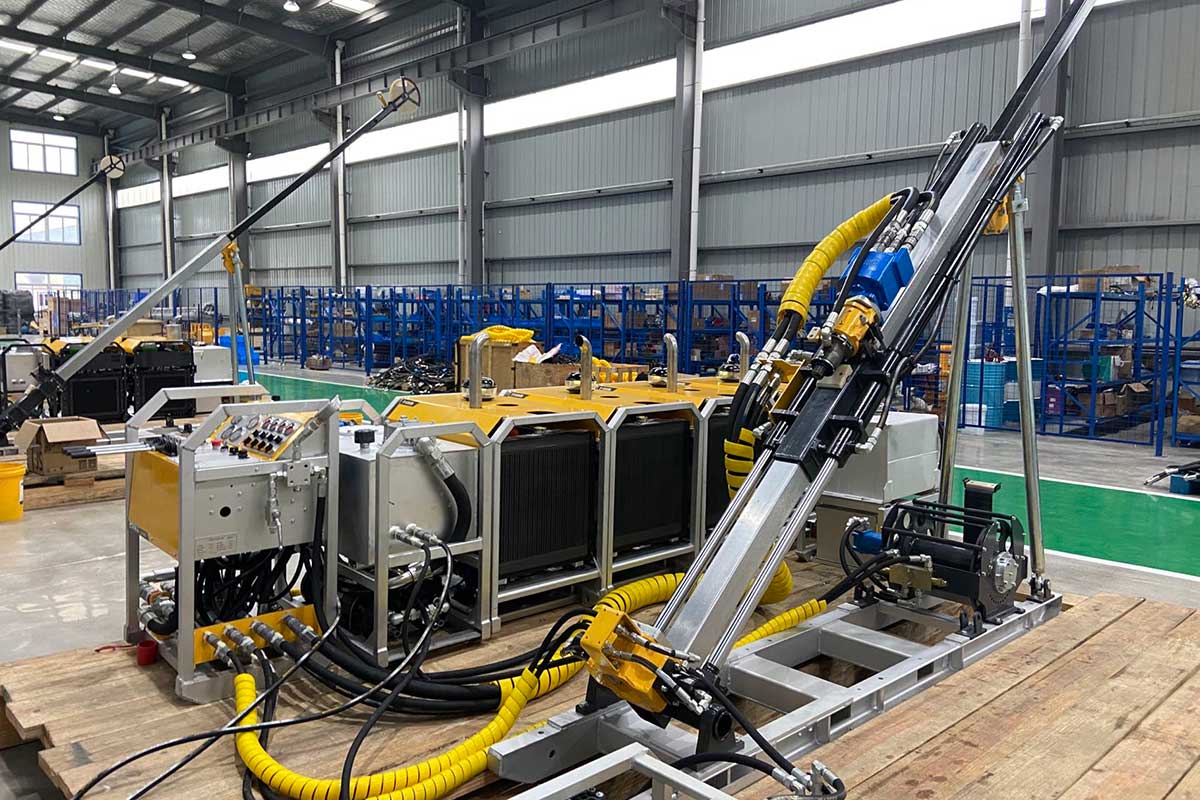

The Portable Drilling Rig F800 is a fully hydraulic modular portable core drilling rig. With a solid global footprint, the Frontier series has demonstrated outstanding performance across Asia, Africa, North America, Latin America, and other regions around the world.
· Combining the classic modular portable design of drill rigs with the rich field experience of international drilling companies, the rig’s main structure is made of high-strength, lightweight aluminum materials to enable convenient transportation.
· Available in diesel or electric power options—featuring single or multiple power station setups—it is highly adaptable to various operating conditions and specific operational demands.
· Integrating cutting-edge global technologies in hydraulic control and power integration, the drill rig offers improved overall performance and work efficiency, rendering it perfect for projects dealing with complex geological conditions.

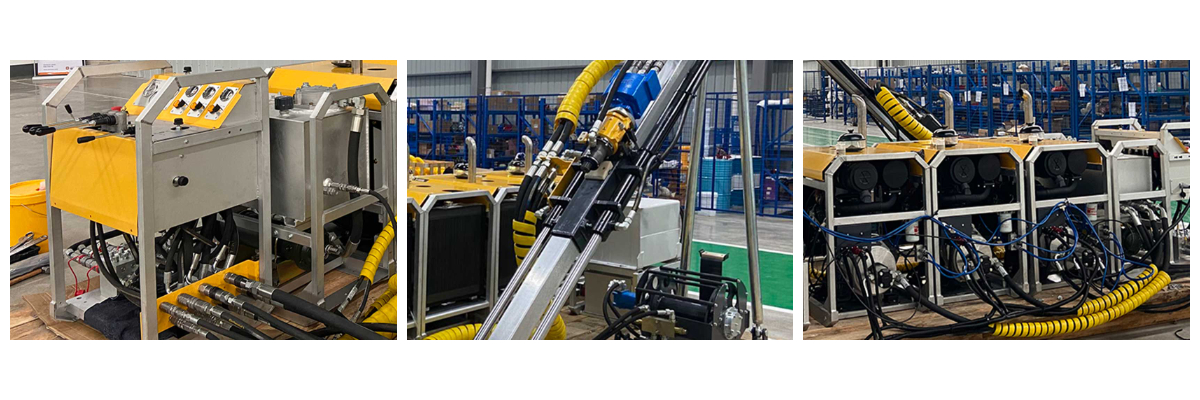

Product Details
1.High-Efficiency Hydraulic Chuck - Ensures smooth power transfer, which significantly enhances overall operational productivity.
2.Control Panel - Comes with centralized control levers for easy operation by operators, accompanied by a pressure gauge that offers intuitive real-time visibility of downhole conditions.
3.Hydraulic Stabilizer Leg - Facilitates accurate leveling and stable positioning of the rig’s frame, thus guaranteeing stable operation during drilling.
4.Hoist System - Controls the lifting and lowering of drilling tools via the built-in control panel, streamlining the handling of drilling equipment.
5.Power Engine - Equipped with top-tier branded engines, delivering powerful performance: stable operation under heavy workloads, long service life, and an ideal harmony between eco-friendliness and power delivery.
Product Specifications
| Drill Type | Modular-Portable |
| Depth (B/N/H) | 800/600 /350 m |
| Engine power | 3 x 33 KW |
| Feed Stroke | 1.8 m |
| Maximum Torque | 800 Nm |
| Hoisting Force | 120 KN |
| Max Rod Diameter | 114 mm |
| Suitable Rod Size | 1.5 m |
| Max module weight | 180 Kg |
| Handling Method | Manual/Small Machinery |
