Hot Sale Portable Drilling Rig
• Utilizes integrated power system control technology to enable operation and monitoring of all engines from the control console;
• Employs industry-leading balanced pressure drilling technology to equalize drill string pressure and precisely control drilling pressure, enhancing performance in complex formations;
• The clamp features pressure loss protection for safety, reliability, and rapid response to prevent accidental rod drop.
• Unique adjustable powerhead sliding clearance maintains tight rail contact, eliminates drilling vibration, and ensures drilling concentricity;
• Equipped with Kubota high-performance turbocharged engines, enhanced power reserves, and optimized system configuration significantly improve high-altitude adaptability.
• The modular mast features automatic telescoping, offering a compact, stable, and reliable structure.
• The proprietary lightweight drilling rig mud handling system utilizes a custom North American high-pressure mud pump, delivering light weight while handling high-solids mud and circulating mud.
• Electric or diesel power units can be freely selected based on requirements.
• Manufactured with industry-leading production techniques, delivering exceptional quality that is consistent inside and out.
Product Introduction

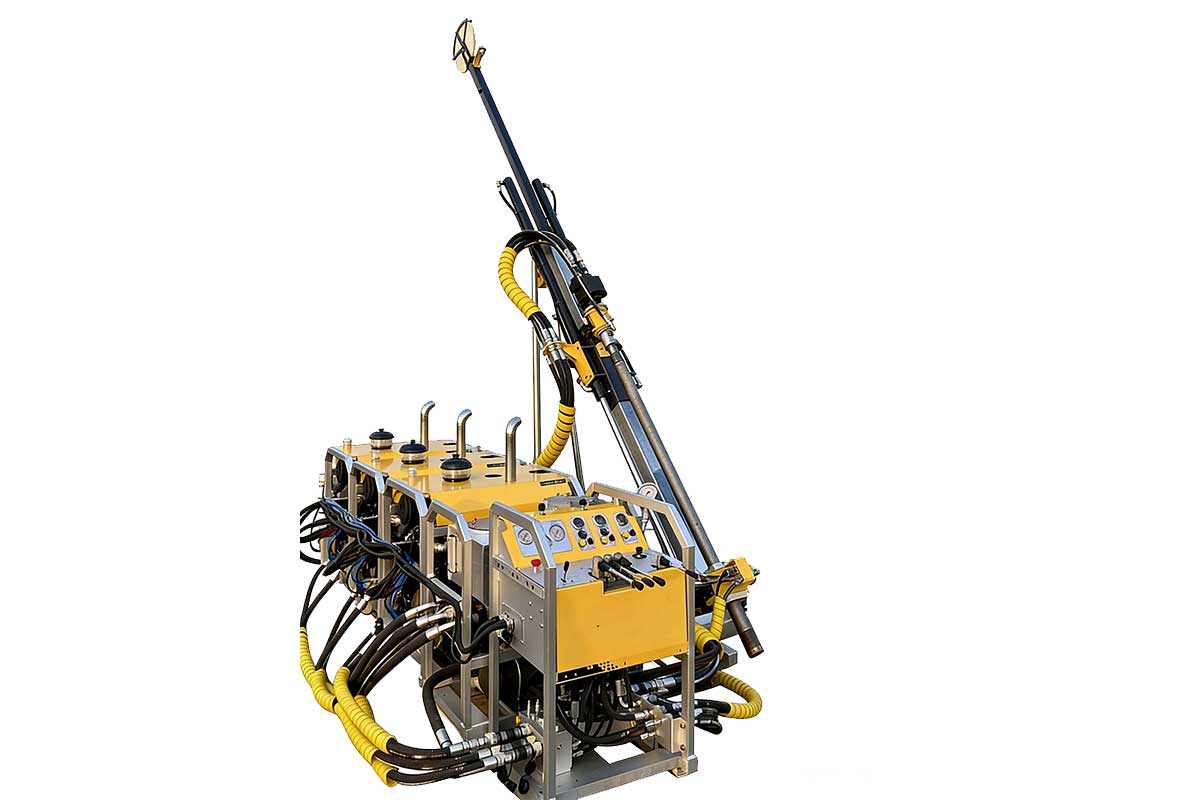

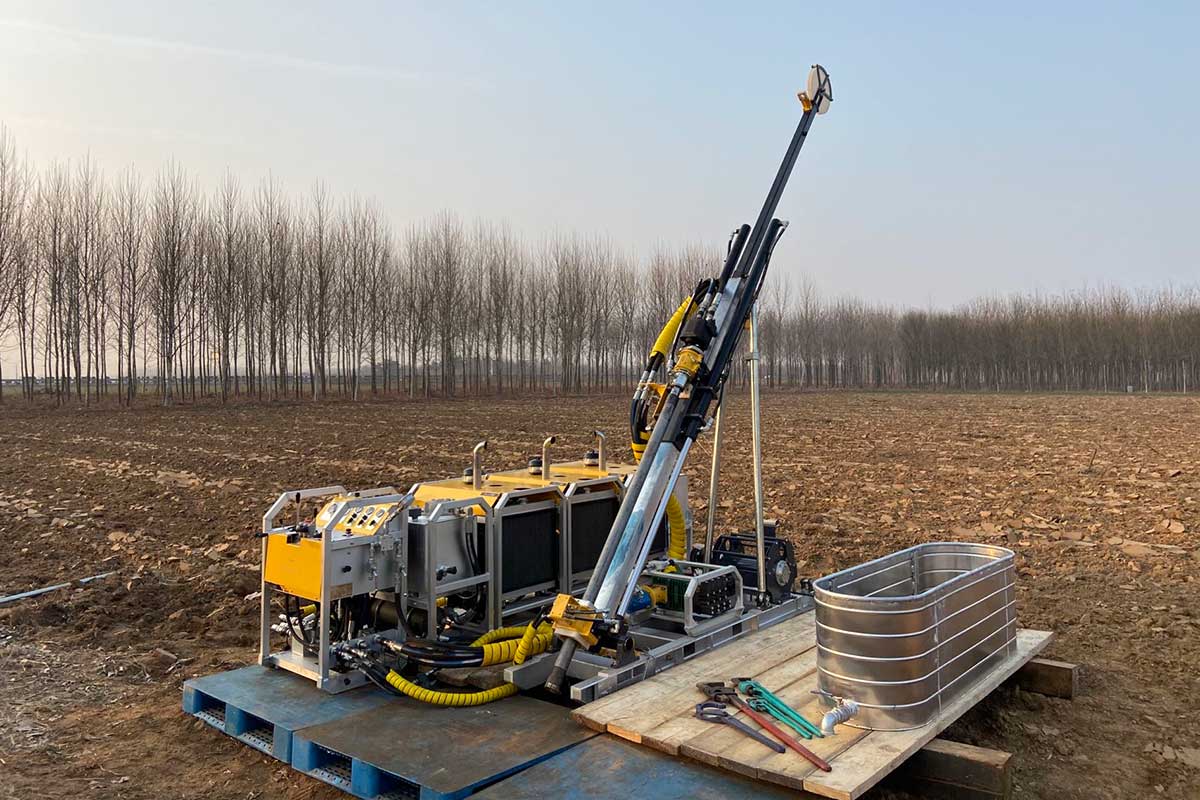

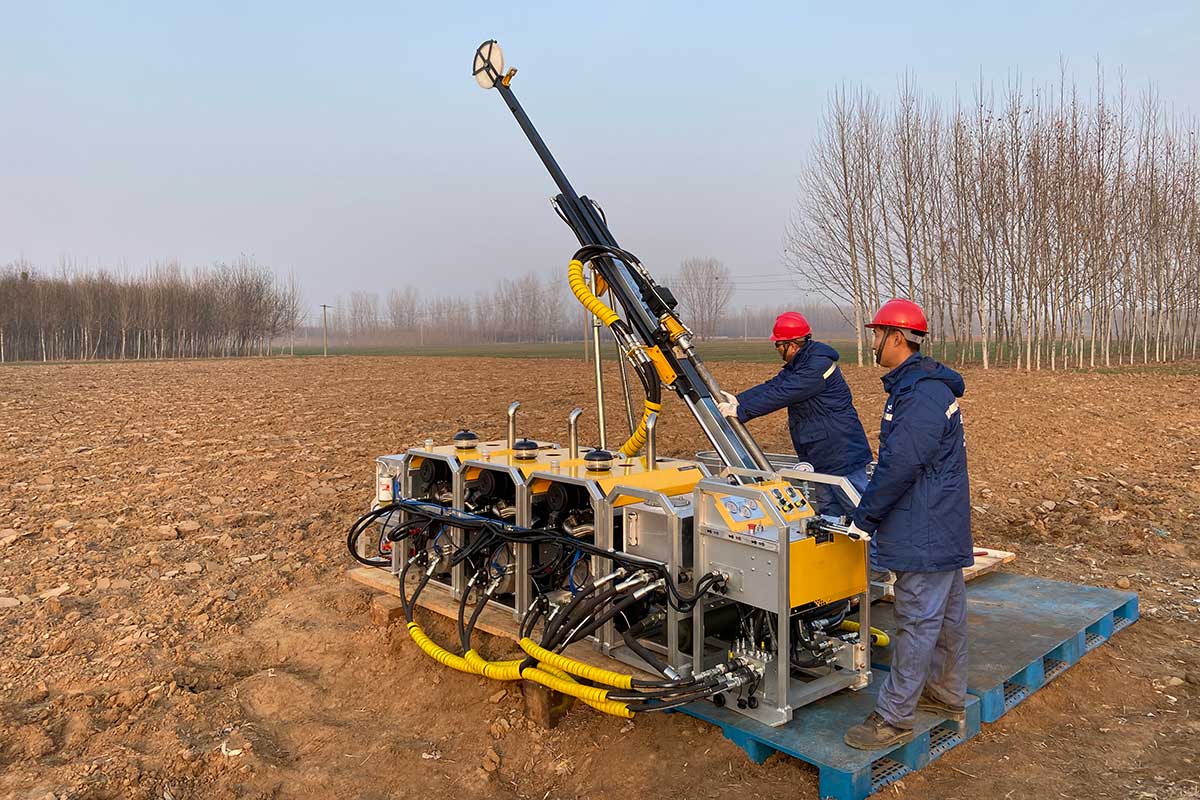

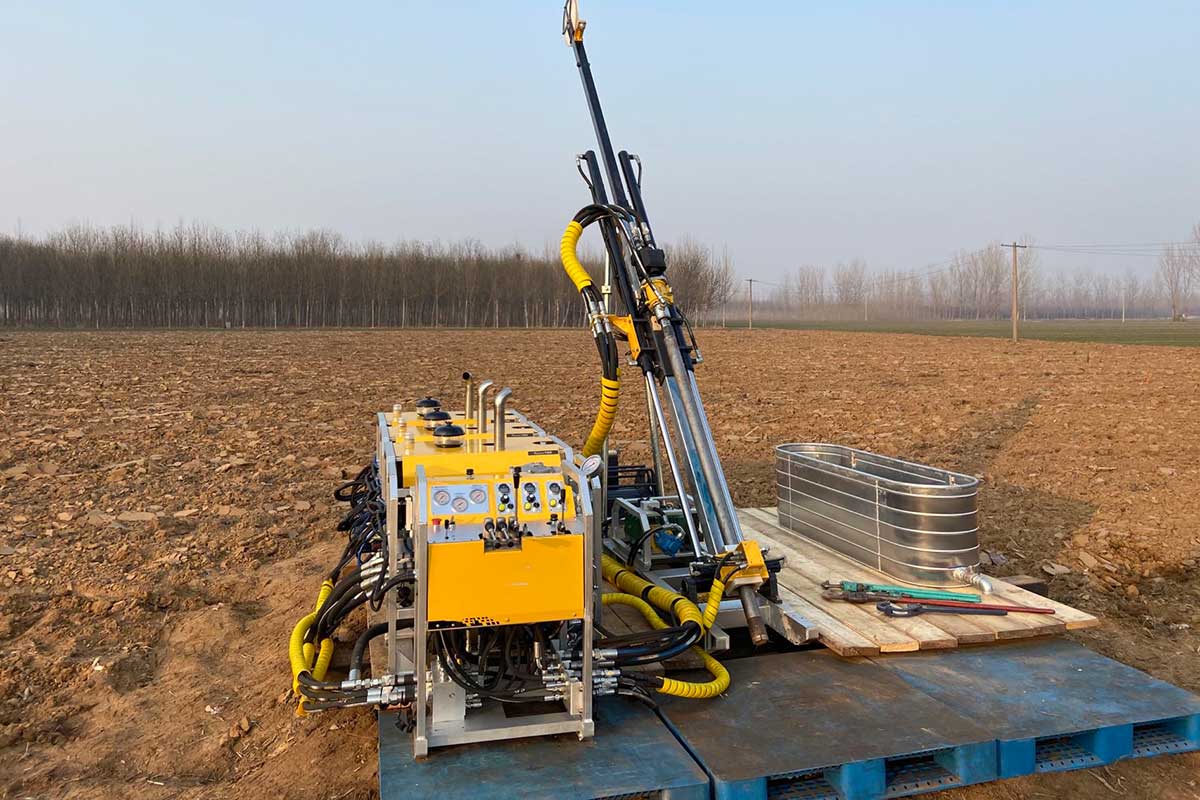

The Portable Drilling Rig F600 is a fully hydraulic, modular-portable core drilling solution. Boasting a strong global presence, the Frontier series has delivered exceptional performance across Asia, Africa, North America, Latin America, and other regions worldwide.
· Blending the timeless modular-portable design of drill rigs with the extensive on-site expertise of international drilling firms, the rig’s main structure is crafted from high-strength, lightweight aluminum materials to facilitate easy transportation.
· Offered with diesel or electric power configurations—including single or multiple power station options—it is well-suited for diverse working environments and specific operational requirements.
· Incorporating advanced international technologies in power integration and hydraulic control, the drill rig delivers enhanced overall performance and productivity, making it ideal for applications involving complex geological formations.

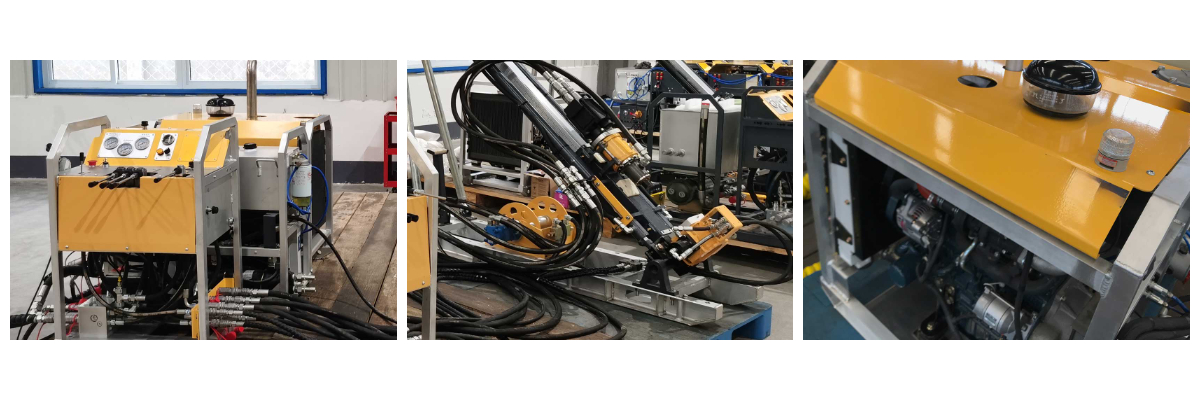

Product Details
1.High-Efficiency Hydraulic Chuck - Delivers seamless power transmission, which drastically boosts overall work efficiency.
2.Control Panel - Integrates centralized control levers for operator convenience, paired with a pressure gauge that provides clear real-time insight into downhole conditions.
3.Hydraulic Stabilizer Leg - Enables precise leveling and secure placement of the rig’s frame, ensuring operational stability.
4.Hoist System - Regulates the elevation and lowering of drilling tools through the integrated control panel, simplifying tool handling.
5.Power Engine - Fitted with high-quality branded engines, offering robust performance: reliable operation under heavy-duty loads, extended service life, and an optimal balance between environmental friendliness and power output.
Product Specifications
| Drill Type | Modular-Portable |
| Depth (B/N/H) | 600/400/180 m |
| Engine power | 3 x 24KW |
| Feed Stroke | 1.8 m |
| Maximum Torque | 600 Nm |
| Hoisting Force | 100 KN |
| Max Rod Diameter | 114 mm |
| Suitable Rod Size | 1.5 m |
| Max module weight | 160 Kg |
| Handling Method | Manual/Small Machinery |
Company Strength

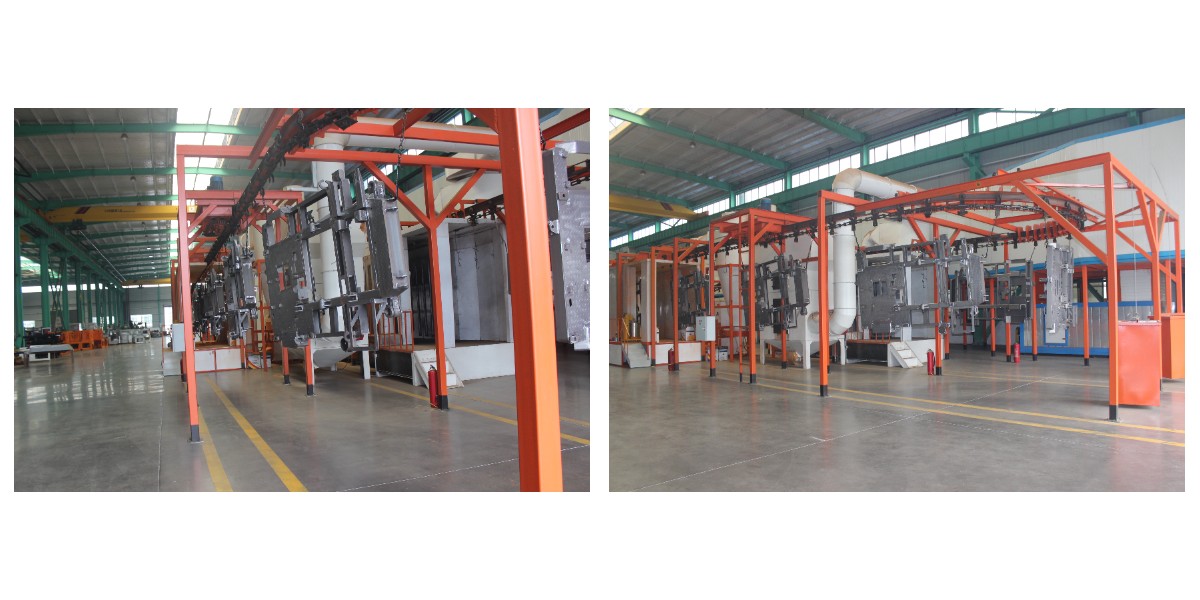

Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the R&D, manufacturing, and innovation of geological exploration tools, intelligent mining systems, and new energy technologies. Equipped with strong research and development capabilities and advanced production processes, Puhua provides high-performance drilling equipment, smart underground transportation solutions, and customized engineering services for mining operations across the globe.
The company has established strategic cooperative partnerships with more than 30 key mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, with its products exported to over 120 countries and regions worldwide. Certified to ISO9001 quality management standards and supported by an overseas R&D center in Canada, Puhua’s equipment delivers reliable performance in harsh environments—spanning high-altitude plateaus to arid deserts. Recognized for its commitment to innovation, operational efficiency, and exceptional reliability, Puhua has emerged as a trustworthy global partner in the energy and mining industries.
