Portable Drilling Rig
• Retractable mast - Allows quick conversion from transport to working status.
• Hydraulic supporting cylinders - Help achieve fast rig installation and accurate positioning for multi-angle drilling tasks.
• Overhead drive power unit - Space-saving structure provides excellent mechanical transmission efficiency and reliable operation.
• Hydraulic gripper - Responds rapidly with sensitive operation, featuring pressure loss prevention to boost safety.
• Remote-controlled crawler chassis - Offers strong mobility, guaranteeing operator security and convenient control.
Product Introduction

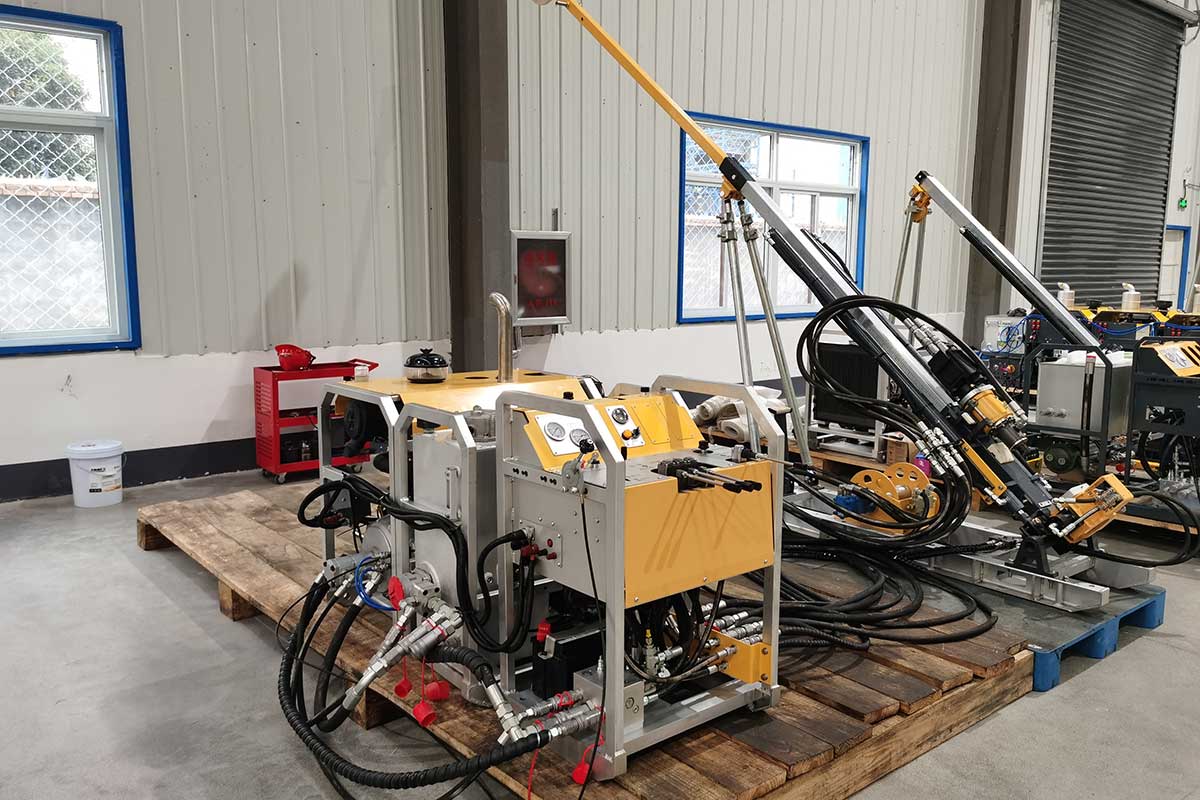

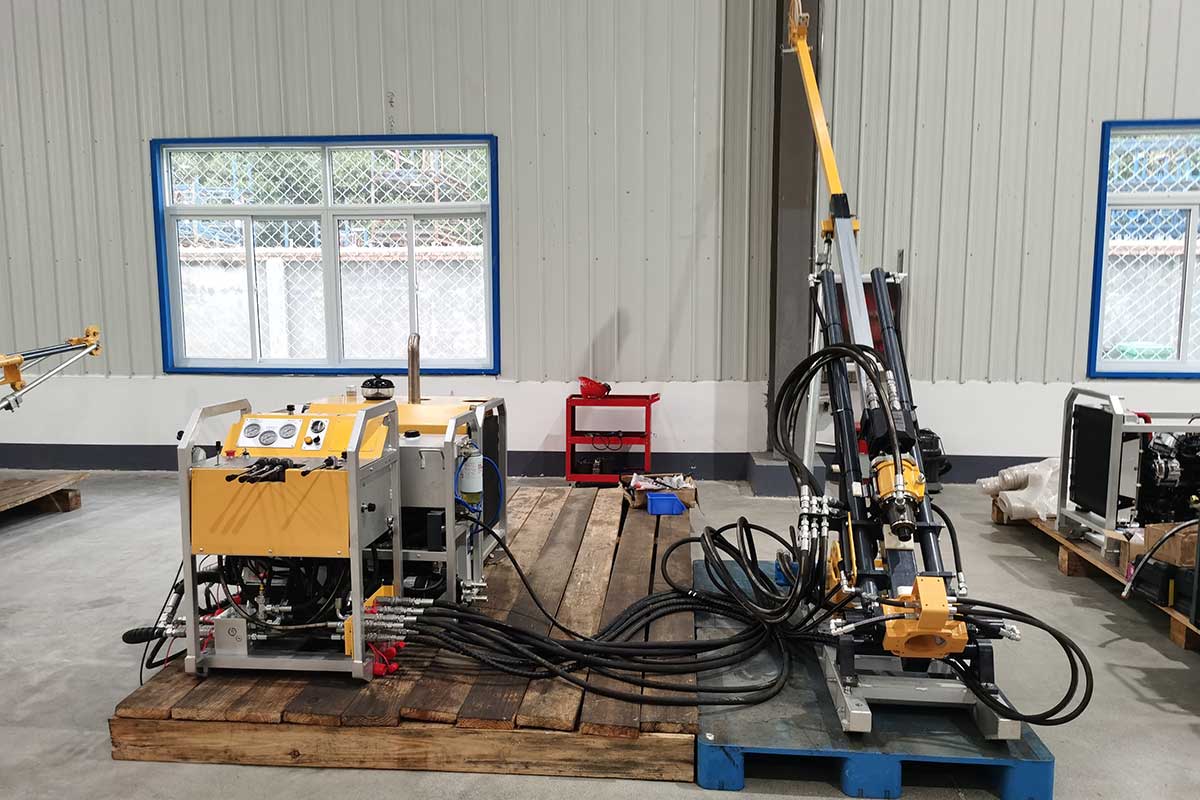

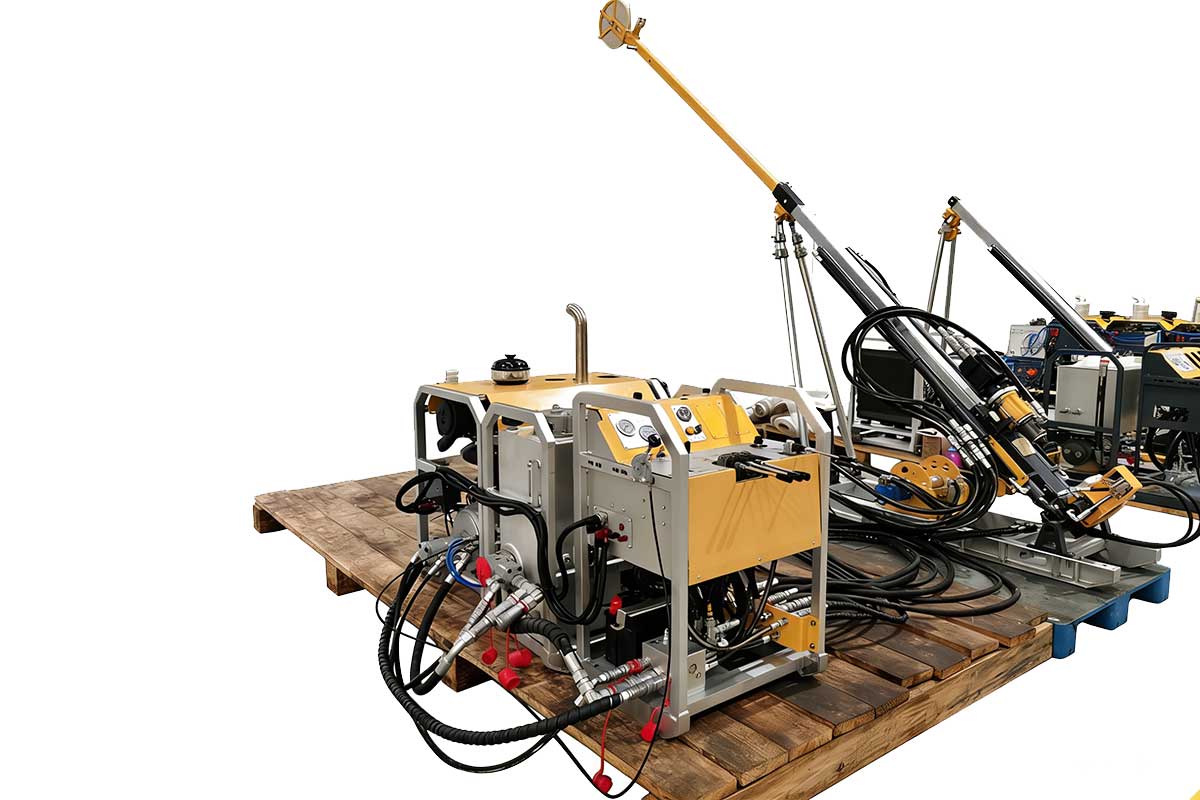

Portable Drilling Rig F300 offers a full hydraulic modular-portable core drilling rigs. The Frontier series has shown outstanding performance globally, with a footprint in Asia, Africa, North & Latin America, and beyond.
· Combining classic design of modular-portable drill rigs with rich field experience of international drilling companies, the main structure uses high-strength light-weight aluminium materials for easy transportation.
· Powered by diesel or electricity, with multiple or single power stations, suitable for different working conditions and specific operational needs.
· Adopts advanced international technologies of power integration and hydraulic control, the drill overall offers enhanced performance and productivity for applications with complex ground formation.

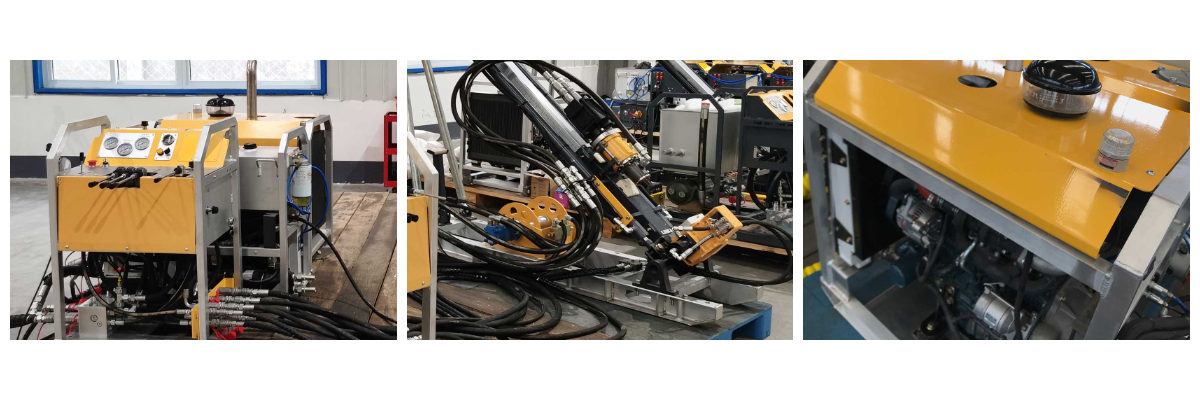

Product Details
1.High-Efficiency Hydraulic Chuck - Ensures uninterrupted power transfer, significantly enhancing work productivity.
2.Control Panel - Features centralized control levers for convenient operator use, with a pressure gauge offering clear visibility of downhole status.
3.Hydraulic Stabilizer Leg - Allows for accurate leveling and secure positioning of the drill rig frame.
4.Hoist System - Adjusts the lifting and lowering of drilling tools via the integrated control panel.
5.Power Engine - Equipped with premium branded engines, providing strong performance—stable operation under heavy loads, prolonged service life, and an ideal balance between eco-friendliness and power delivery.
Product Specifications
| Drill Type | Modular-Portable |
| Depth (B/N/H) | 300/220/120 m |
| Engine power | 1 x 33 KW |
| Feed Stroke | 1.2/1.8 m |
| Maximum Torque | 300 Nm |
| Hoisting Force | 56 KN |
| Max Rod Diameter | 114 mm |
| Suitable Rod Size | 1.0m /1.5 m |
| Max module weight | 180 Kg |
| Handling Method | Manual/Small Machiney |
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., established in 2003 in Jining, China, stands as a prominent high-tech firm focused on the research, development, and production of geological exploration tools, smart mining systems, and new energy technologies. Boasting robust R&D capabilities and cutting-edge manufacturing processes, Puhua delivers high-performance drilling machines, intelligent underground transport devices, and tailored engineering services for mining operations globally.
The company partners with over 30 key mining companies, such as Shandong Energy, Yintai Gold, and Shandong Gold, with its products reaching more than 120 countries and regions. Holding ISO9001 certification and backed by a Canadian overseas R&D facility, Puhua’s equipment operates dependably in extreme conditions—ranging from high-altitude plateaus to arid deserts. Renowned for innovation, operational effectiveness, and exceptional reliability, Puhua has established itself as a reliable international partner in the energy and mining sectors.
