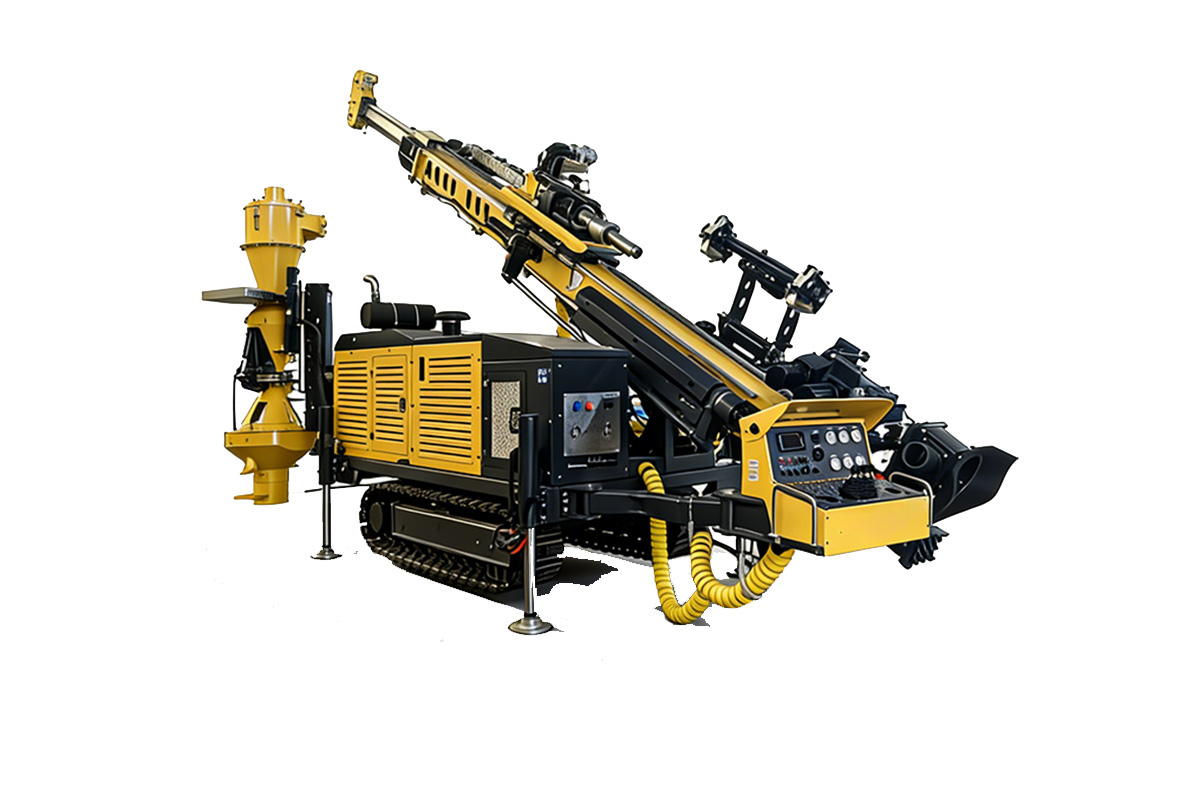

Exploration Drilling Rig For Sale
1, The rig adopts new hydraulic technology, equipped with high torque hydraulic motors and a large-diameter hydraulic cylinder for propulsion, And branded engines supply power the hydraulic system;
2, The connection of two air filter and air intake design prolongs the engine’s life. Unique pump design facilitate maintenanceand reduce maintenance costs.
3,Centralized hydraulic control console, easy to operate.
4, Independent module design, high cylinder leg rig can be easily mounted on a truck, increase its mobility.
Product Introduction
The Exploration Drilling Rig is suitable for geological exploration and geotechnical engineering drilling operations. With appropriate tooling, it can perform various drilling tasks including core drilling, reverse circulation (RC) drilling, down-the-hole hammer (DTH) drilling, large-diameter rotary drilling, and Standard Penetration Test (SPT).

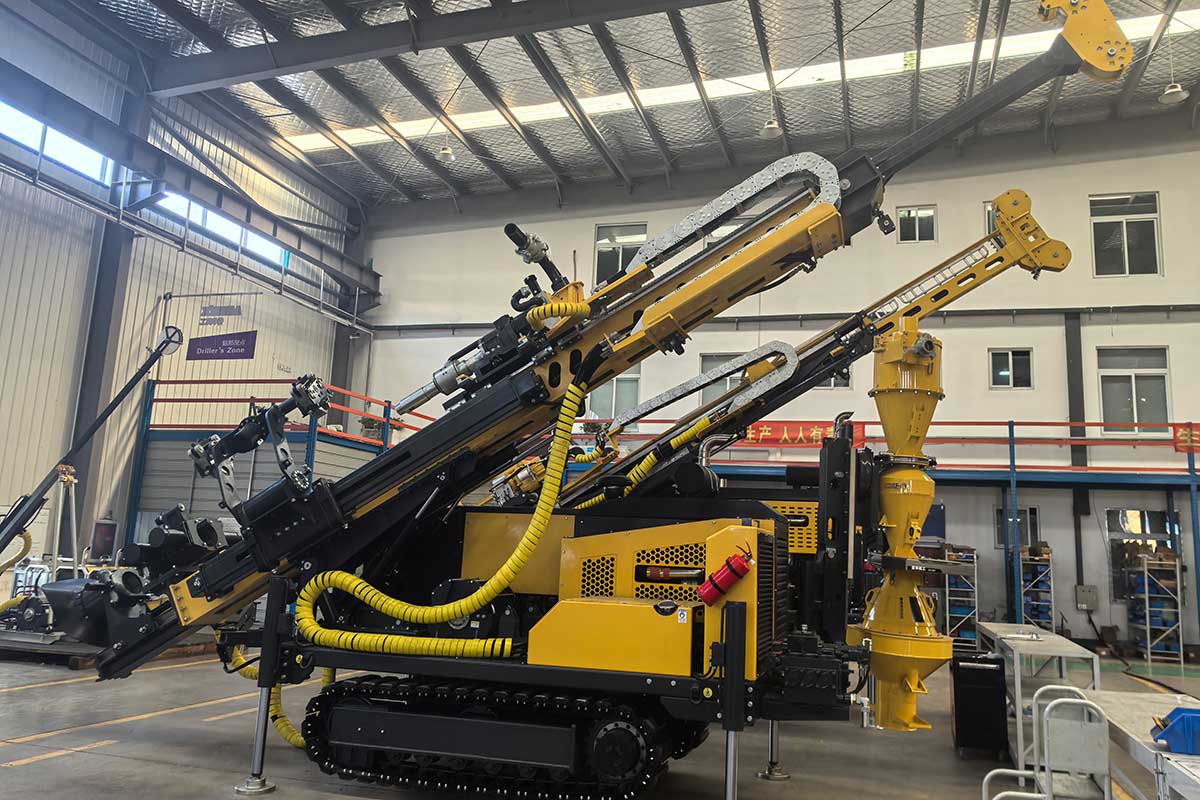

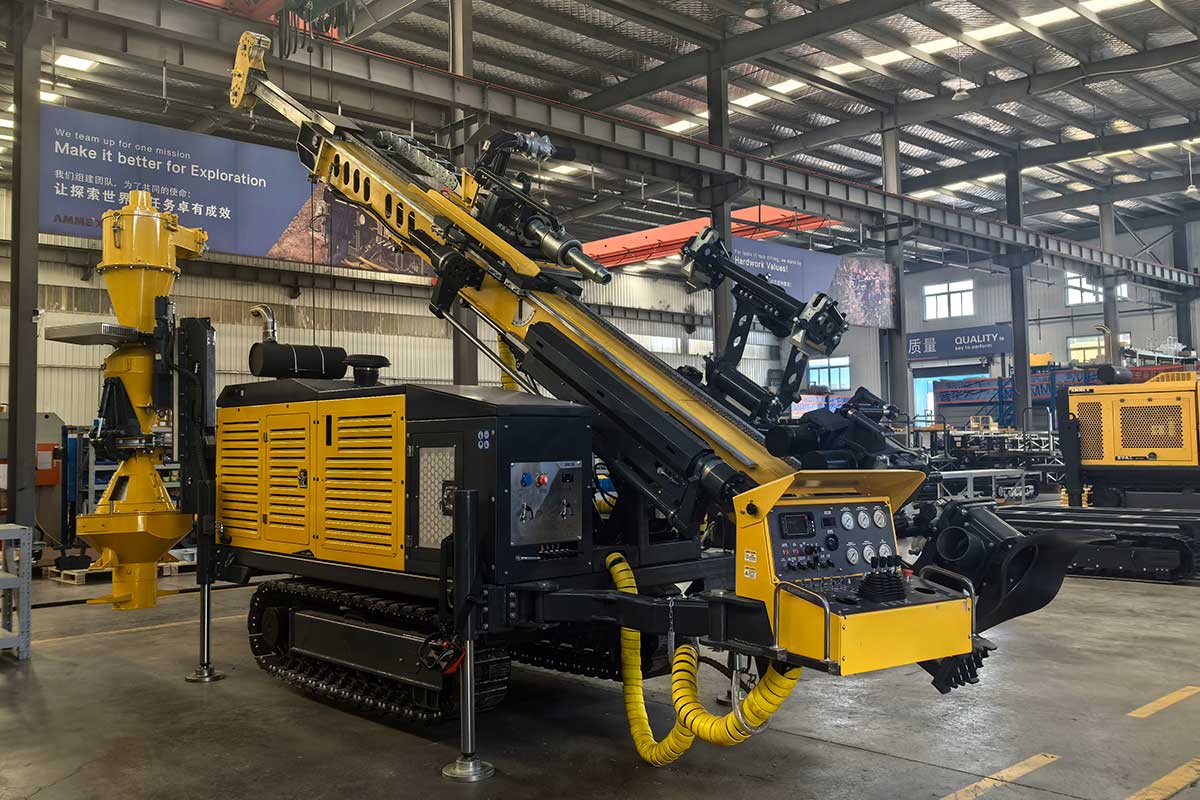

The GM180 features a uniquely designed, compact rotary mast that folds/retracts flexibly. The hammer mast is installed parallel and can be positioned via a mechanical sliding mechanism. Equipped with high-performance crawlers and remote-control travel/frame lifting, the GM180 offers easy positioning and high mobility. The drill also offers other optional or customized features include a pipe handling system and a drill pipe rack providing continuous drilling and sampling.
The GM1180-RC is designed specifically for reverse circulation drilling. Accurate mineral samples can be taken at depths down to 400-500 meters.

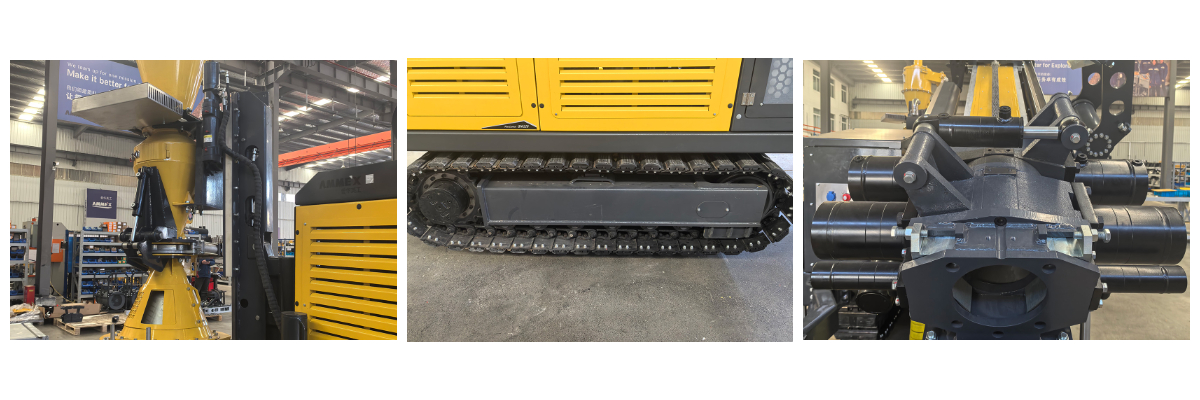

Product Details
1.High-Efficiency Hydraulic Chuck
Ensures uninterrupted power transfer, significantly enhancing working efficiency during drilling operations.

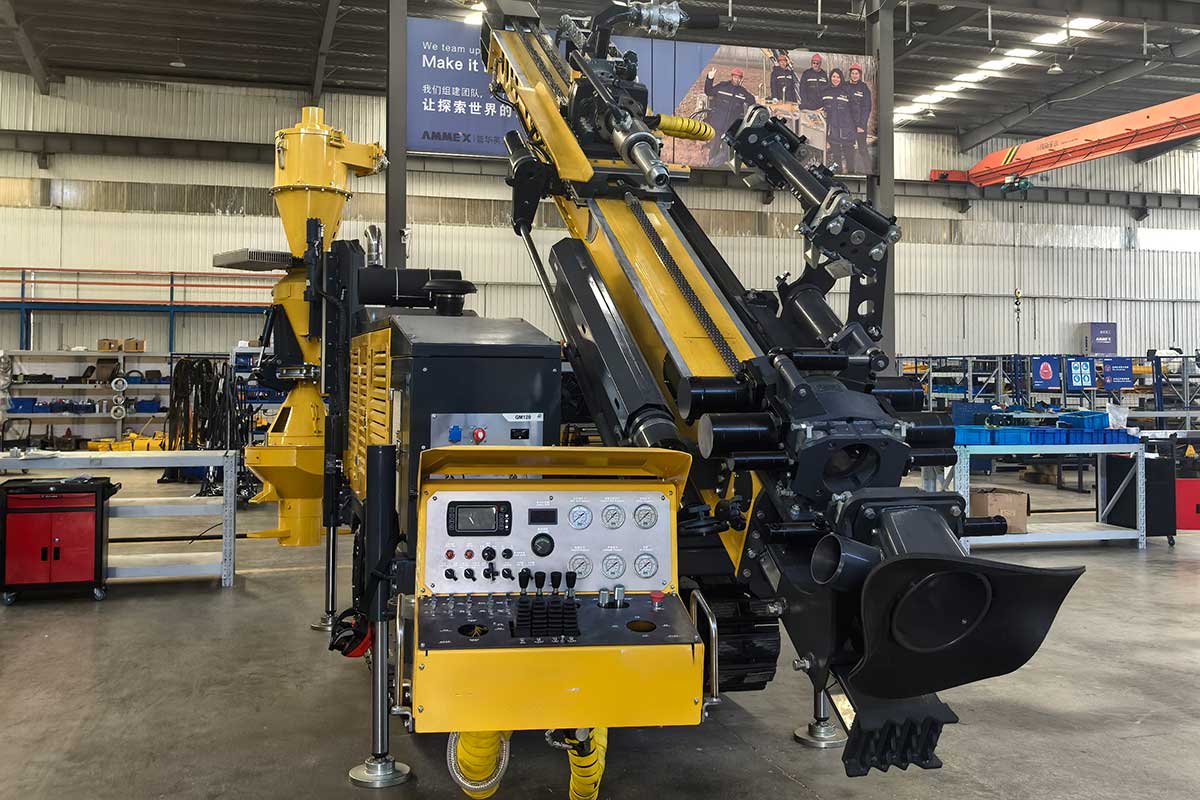

2.Control Panel
Integrated with centralized control levers for intuitive operator use, complemented by a pressure gauge that offers real-time visibility of downhole conditions.
3.Hydraulic Stabilizer Leg
Enables accurate leveling and secure anchoring of the drilling rig frame for stable operation.
4.Hoisting Winch
Controls the lifting and lowering of drilling tools via the unified control console, streamlining tool management processes.
5.Power Engine
Driven by premium branded engines, it delivers strong power output—maintaining steady performance under heavy workloads, prolonging service life, and striking an ideal balance between eco-friendliness and power efficiency.
Product Specifications
| Pull up force | 200KN |
| Feed force | 80 KN |
| Drill rod size | B/N/H/P (Coring) |
| Rotation Speed (Coring） | 0-1200 rpm (Coring head) |
| Rotation Speed (RC) | 0-200 rpm (RC head) |
| Max Torque. | 6800 Nm |
| Main Pump Flow (Variable) | 250L/m |
| Second Pump Flow (Variable) | 150L/m |
| Aux pump Flow | 60L/m |
| System Pressure (Max) | 30 Mpa |
+ Remote-controlled for safety
An optional operator control panel enables precise control of the pipe handler and hydraulic breakout spanners from a safe distance. This keeps the operator safe from dust, debris and other hazards. The radio remote works up to 40 meters from the rig.
+ System Integration for RC sampling
GM180-RC is integrated to work with an independent tailer-mounted 35-bar air compressor ideally suited to RC drilling. The powerful compressor unit can be towed for mobility by the crawler of the drill rig. The GM180-RC drilling solution can also include a full set of down-the-hole (DTH) drilling accessories.
+ Expansion for Intelligent Control
Optional expansion of the iAMME [Cloud Service] intelligent drilling management system, the rig enables digital drilling functions, including automatic and intelligent drilling, as well as remote equipment management, service support, and visual project management.
