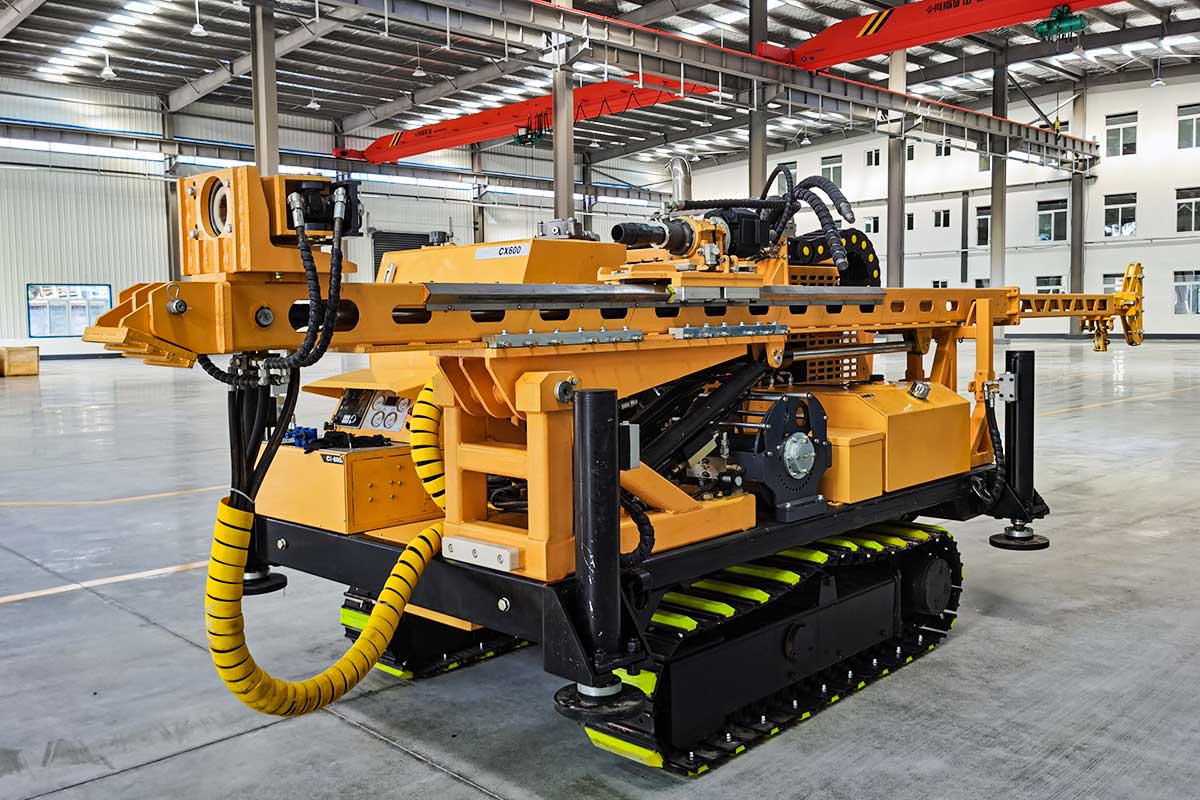

Crawler mounted core drilling rig

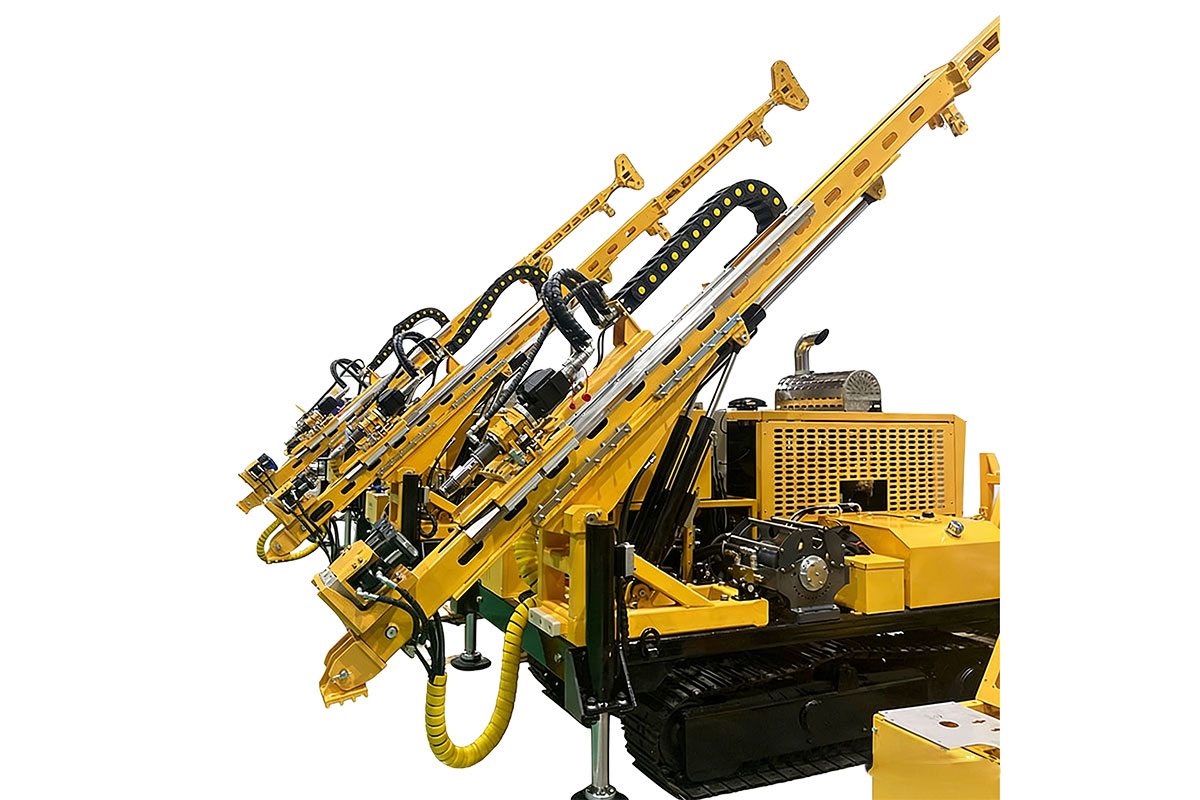

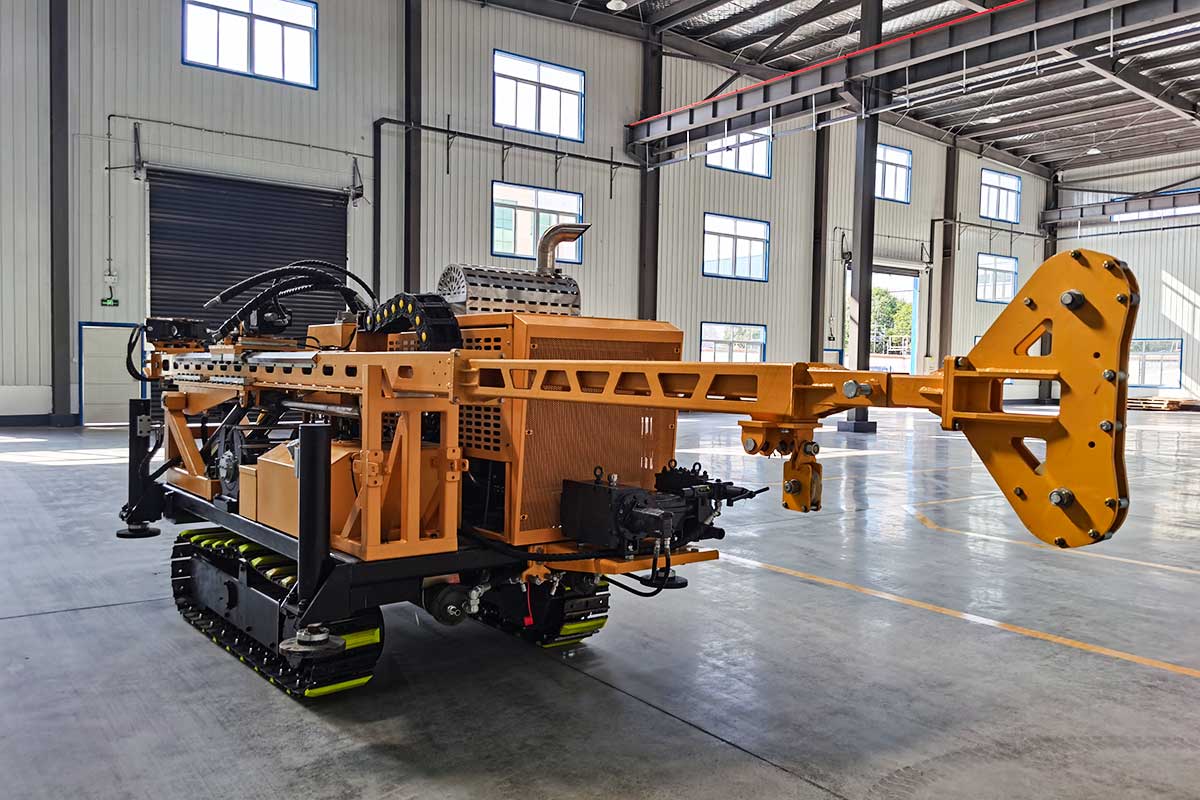

• Telescopic mast - Enables rapid transition from transport to operational mode.
• Hydraulic support cylinders - Facilitate quick rig setup and precise positioning for multi-angle drilling operations.
• Top drive power head - Compact design delivers superior mechanical transmission efficiency and operational reliability.
• Hydraulic clamp - Fast-acting with responsive operation, equipped with pressure loss protection for enhanced safety.
• Remote-controlled crawler tracks - Deliver high maneuverability, ensuring operator safety and comfortable control.
Product Introduction
The CX600 Crawler-mounted core drilling rig stands as our company’s flagship lightweight crawler-mounted core drilling rig. It features exceptional maneuverability and adaptability, making it ideal for medium-to-deep borehole drilling operations across diverse working environments. This drilling rig offers outstanding operational performance and excellent production efficiency. Engineered to comply with international high-end product standards, this core drilling rig incorporates cutting-edge integrated hydraulic control technology, together with industry-leading design philosophies and precision manufacturing techniques. Whether regarding structural aesthetics, performance reliability, or operational protocols, it embodies the exquisite craftsmanship that defines high-end manufacturing.
Product Details

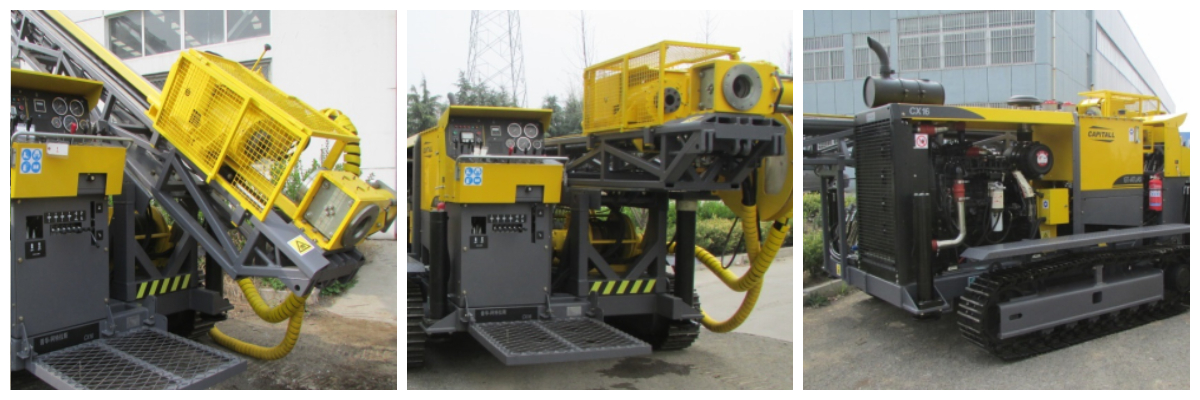

01. Undercarriage Featuring outstanding safety standards and exceptional climbing capability, it is perfect for translocation and work on soggy terrain in mountainous areas.
02. Hydraulic motor The drilling rig employs an inclined shaft plunger motor, with a compact design, strong shock resistance, and a long service lifespan—greatly boosting drilling efficiency.
03. Strong power Featuring full hydraulic drive, the system provides high pressure and powerful power delivery.
04. Convenient console Providing easy-to-operate functionality, intuitive and simplified features, this console is simple to grasp in no time.
Depth Capacity（N） | 600 m |
Diesel Engine Power | 97 KW |
Feed Stroke | 2.5 m |
Maximum Torque | 1800 Nm |
Hoisting Force | 105 KN |
Max Rod Diameter | 117 mm |
Suitable Rod Sizes | 1.5m /2 m |
Overall Weight | 6500 Kg |
Company Strength

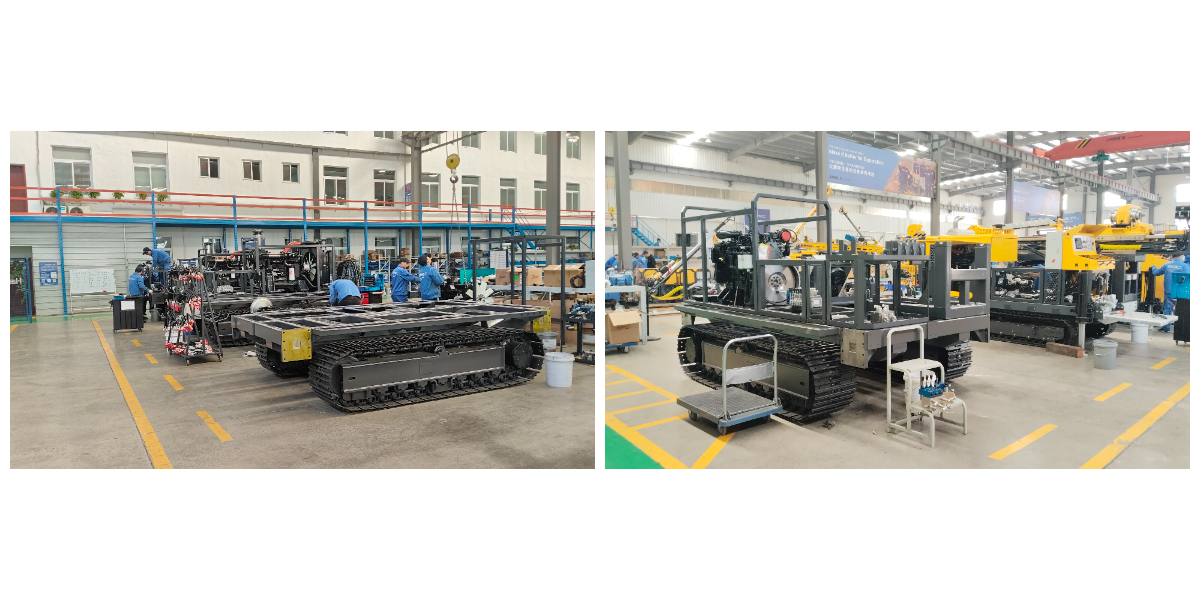

Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
