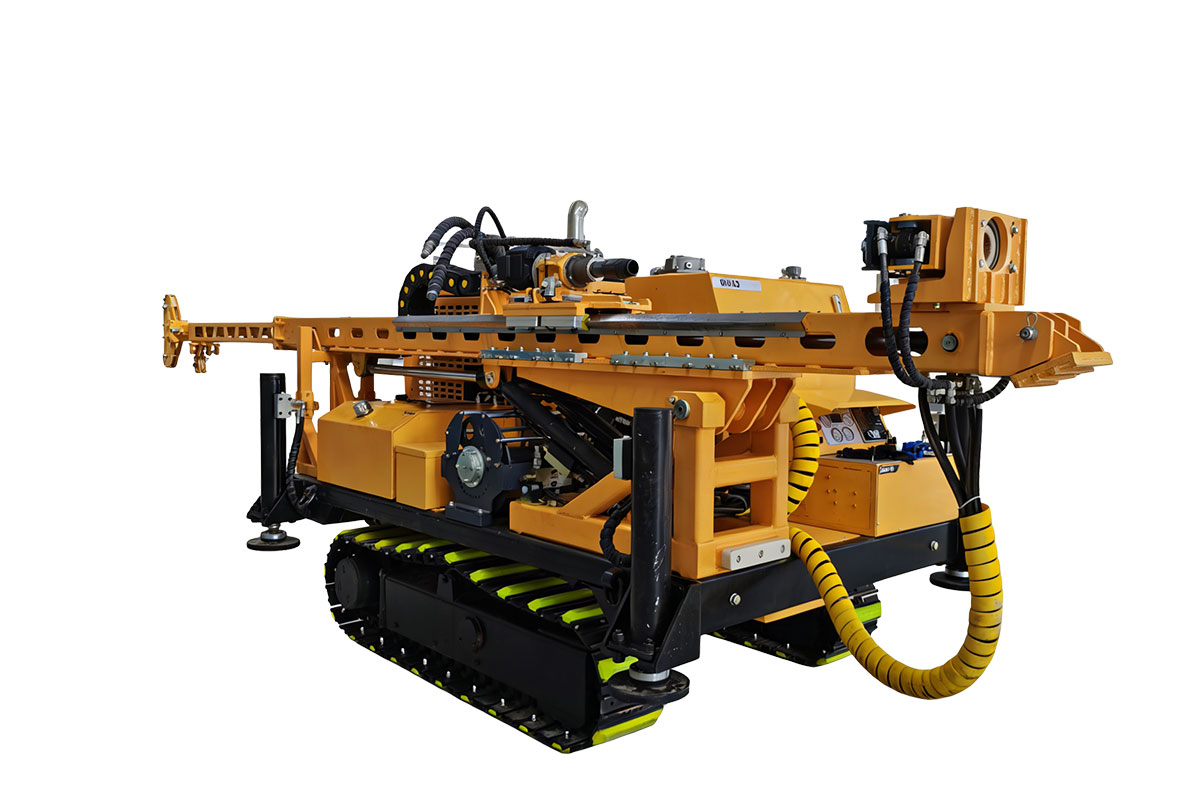

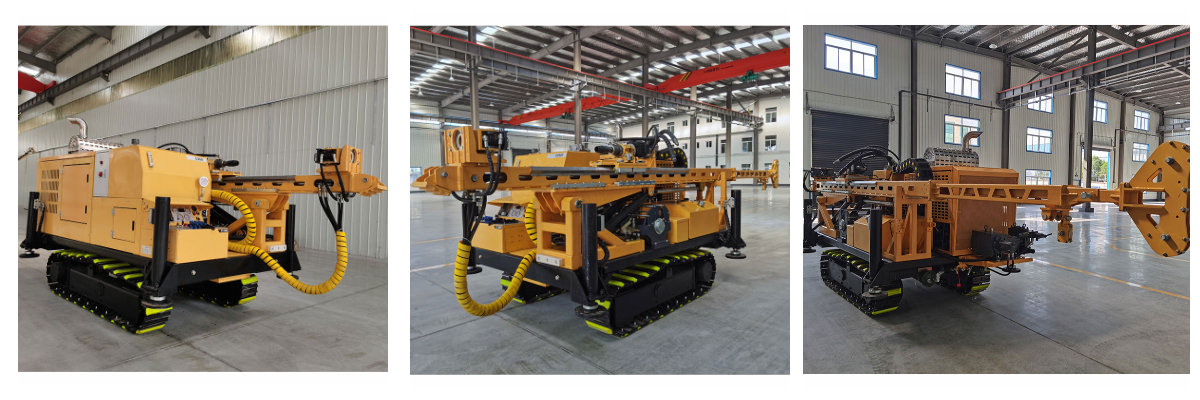

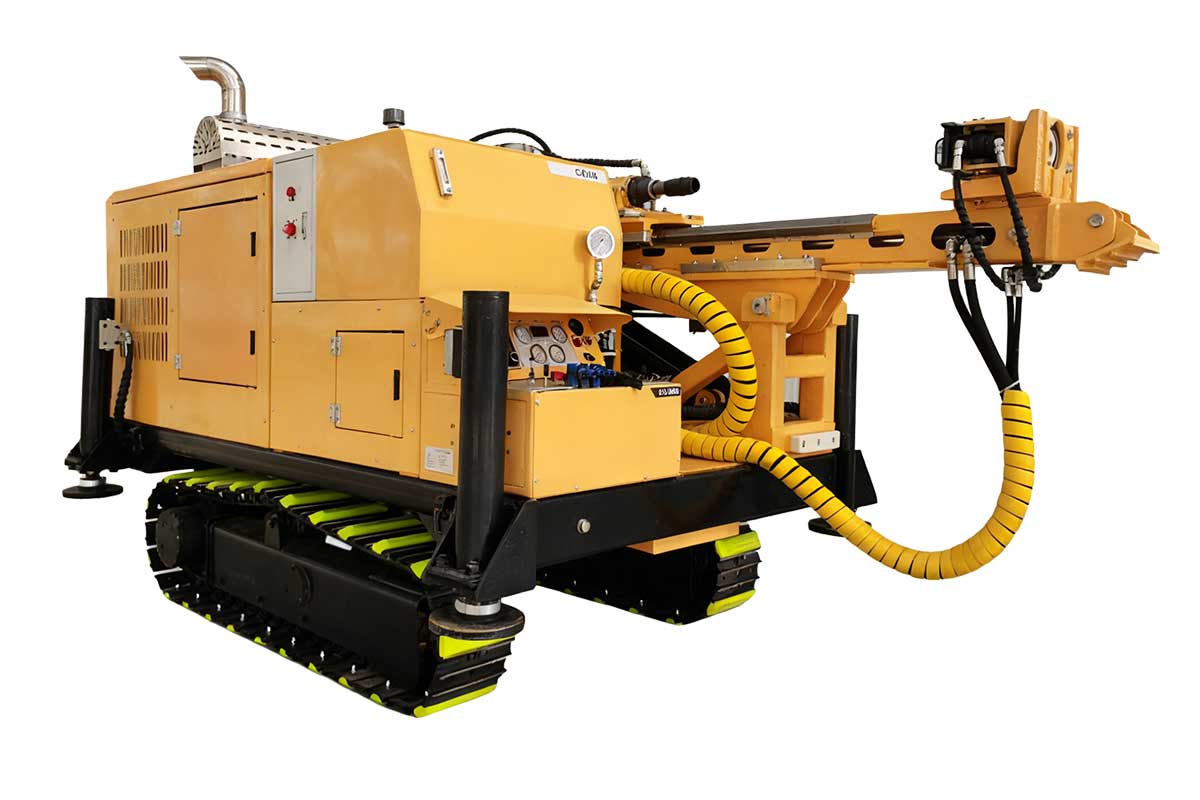

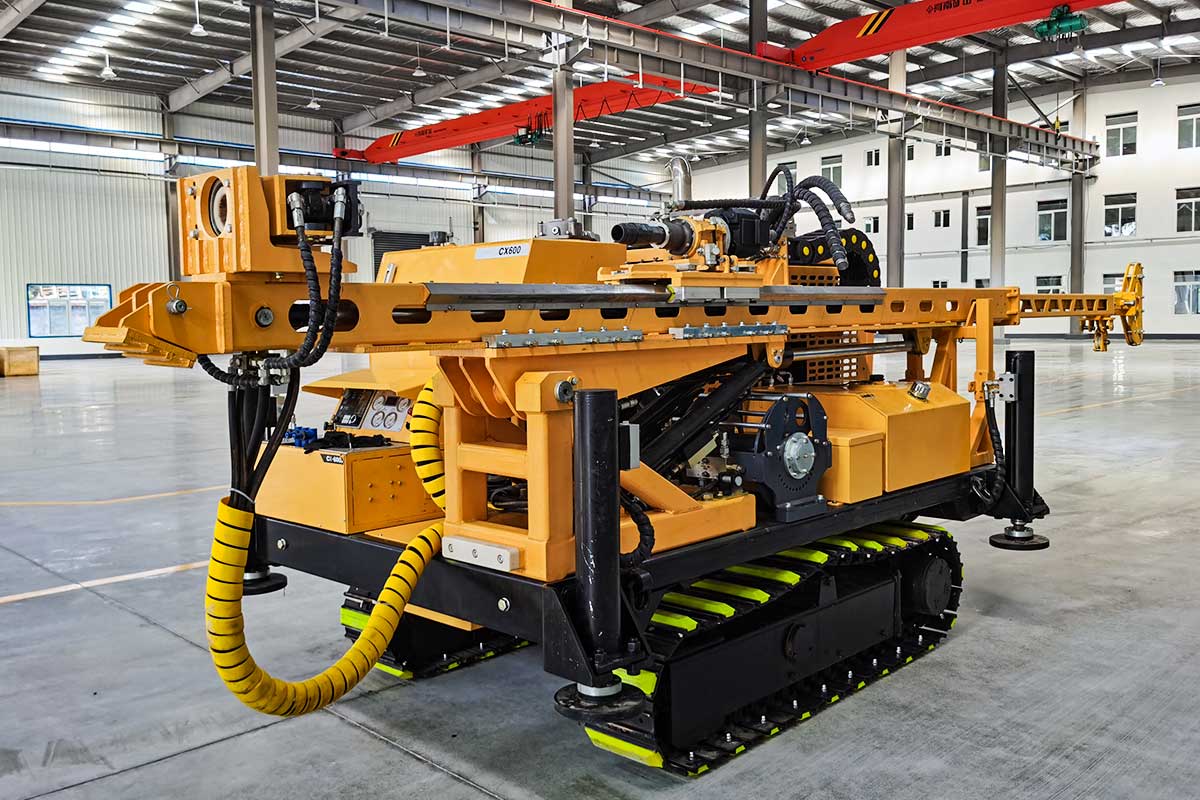

Tracked mounted core drilling rig
• Telescopic mast - Enables rapid transition from transport to operational mode.
• Hydraulic support cylinders - Facilitate quick rig setup and precise positioning for multi-angle drilling operations.
• Top drive power head - Compact design delivers superior mechanical transmission efficiency and operational reliability.
• Hydraulic clamp - Fast-acting with responsive operation, equipped with pressure loss protection for enhanced safety.
• Remote-controlled crawler tracks - Deliver high maneuverability, ensuring operator safety and comfortable control.
Product Introduction
The CX600 is our company's flagship model of lightweight tracked core drilling rigs.It offers exceptional mobility and flexibility, making it ideal for drilling operations in various conditions for medium-to-deep boreholes.This rig delivers outstanding product performance and production efficiency.
The drilling rig incorporates advanced hydraulic integrated control technology based on international high-end product standards, featuring industry-leading design concepts and sophisticated manufacturing processes. Whether in terms of its structural aesthetics, performance quality, or operational methods, it exemplifies the exceptional craftsmanship of premium manufacturing.
Product Details

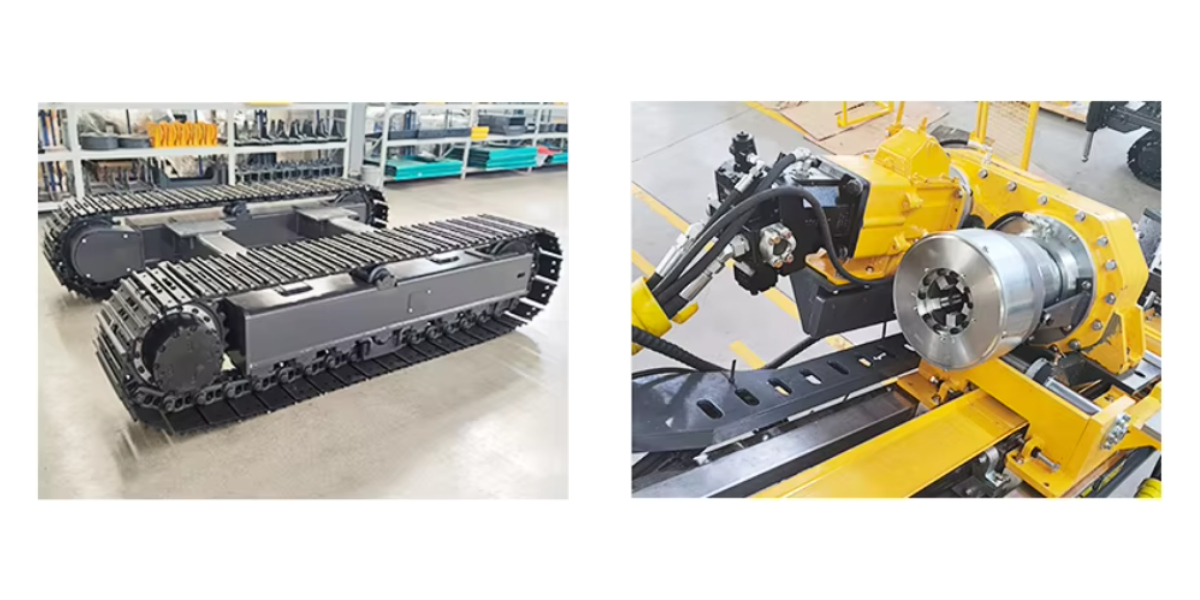

01.Undercarriage
High safety and strong climbingability,suitable for transition andoperation on muddy terrain inmountainous areas.
02.Hydraulic motor
The drilling rig adopts an inclinedshaft plunger motor, which is smallin size,impact resistant, and has along service life, greatly improvingdrilling efficiency.
03.Strong power
Fully hydraulic drive, highsystem pressure, strong poweroutput.
04.Convenient console
Simple control, intuitive andconcise functions, easy to getstarted with.
Product Specifications
| Drill Type | 600m |
| Depth Capacity(N) | 97kw |
| Feed Stroke | 2.5m |
| Maximum Torque | 1800Nm |
| Hoisting Force | 105Kn |
| Max Rod Diameter | 117mm |
| Suitable Rod Sizes | 1.5m/2m |
| Overall Weight | 6500kg |
⚫ A stable working platform with mast contact function, reducing working height

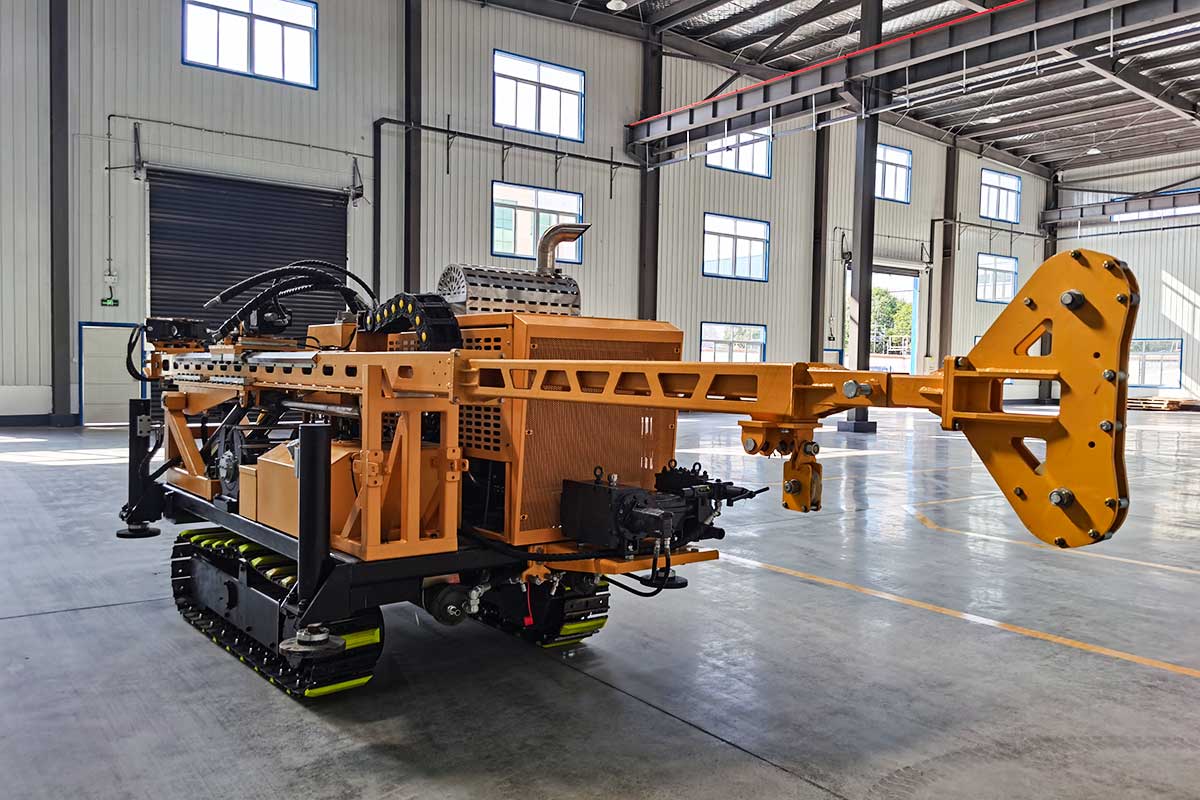

⚫ Folding/telescopic mast is easy to install and can lift 6m drill rods
⚫ Hydraulic leveling support legs and mast lifting cylinders facilitate drilling rig positioning
⚫ Strong power, feeding system, and main winch ensure efficient deep hole drilling
⚫ Christensen Cardplate Power Head Assembly from Canada - Provides Excellent Performance Reliability and production efficiency
⚫ The optional nitrogen drill pipe clamp achieves fast drill pipe clamping and improves reliability Sex reduces the need for maintenance
⚫ Track walking wireless remote control enhances maneuverability and safety
Company Strength
Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
