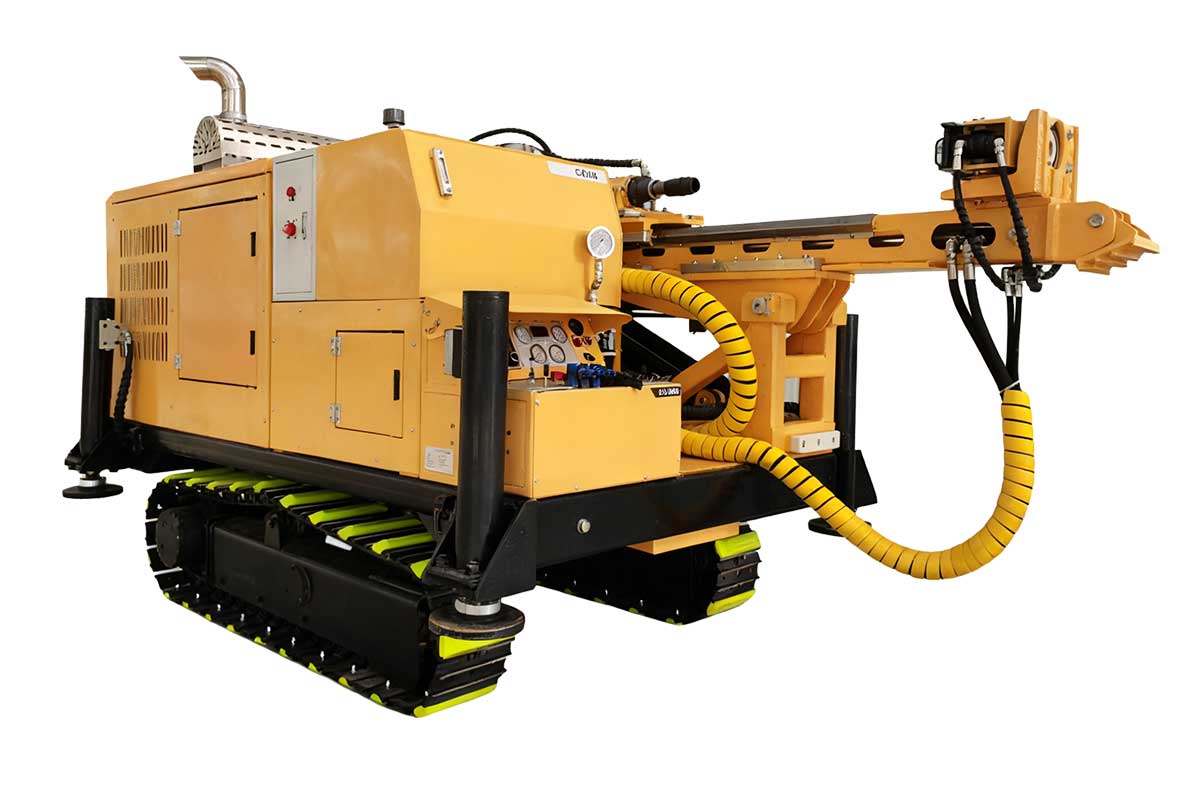

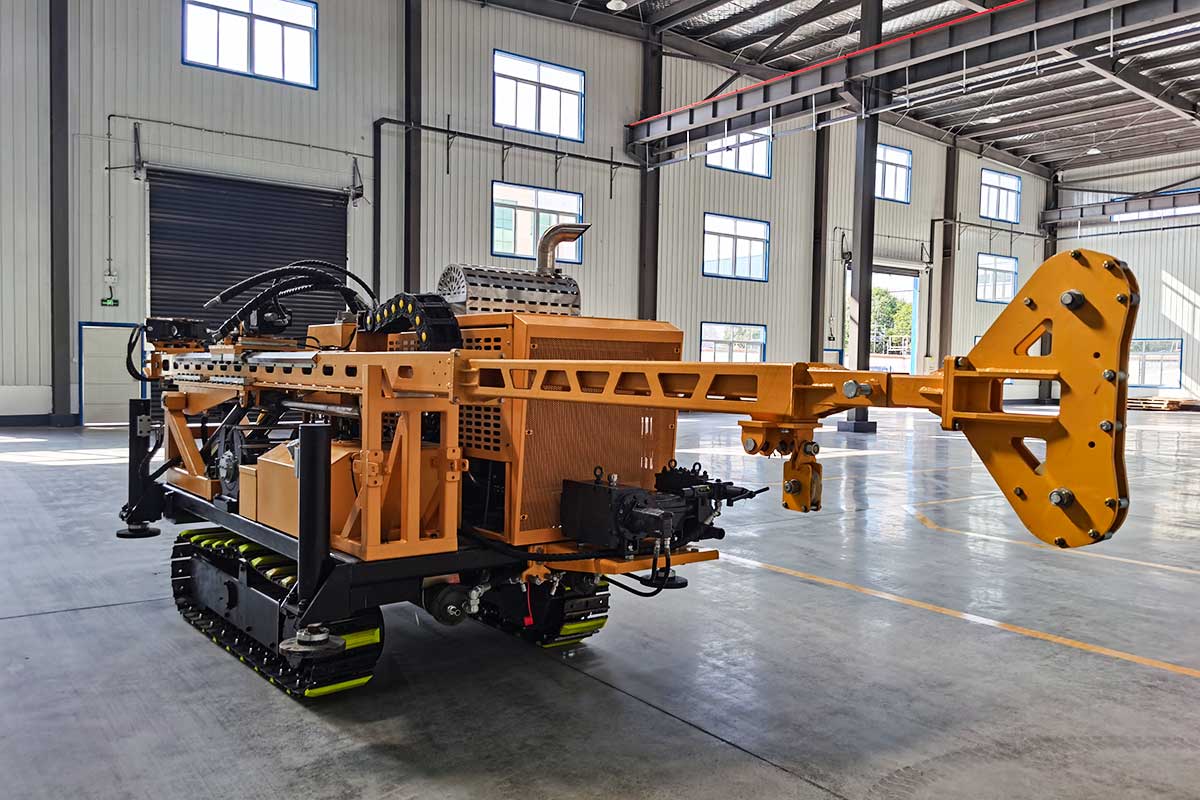

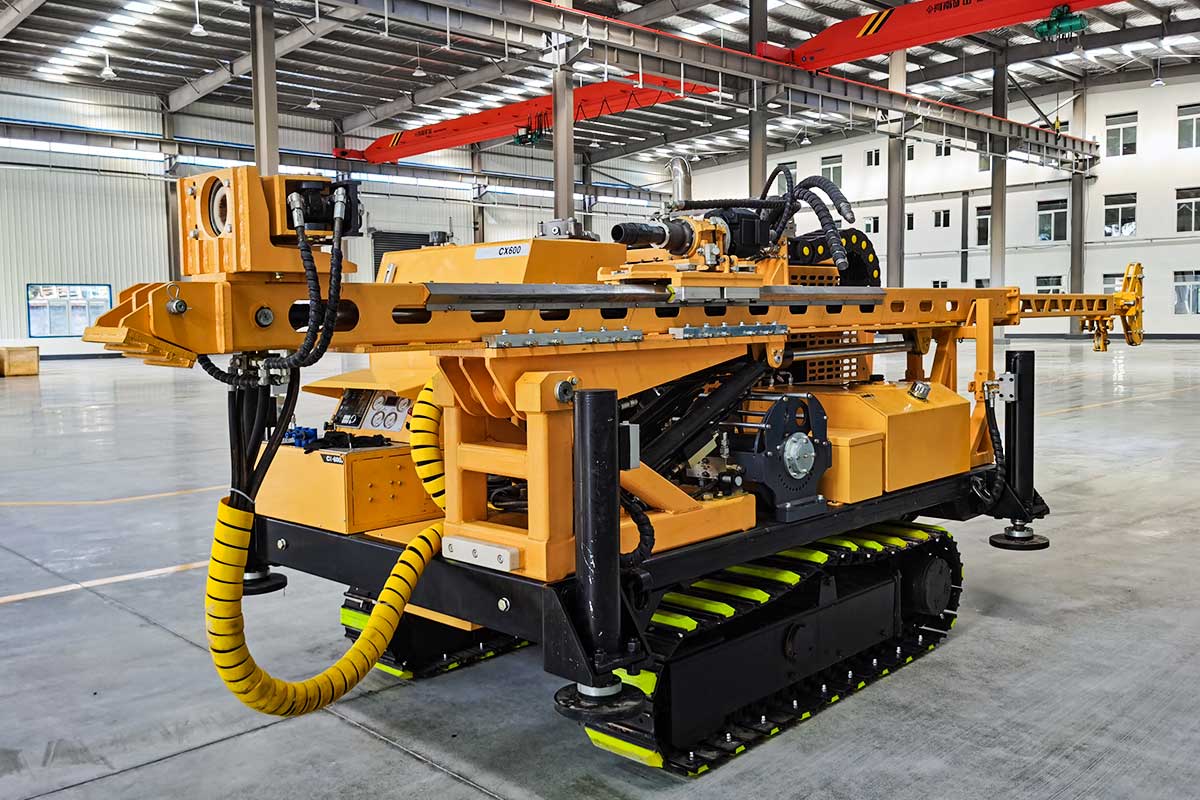

Crawler core drilling rig
• Telescopic mast - Enables rapid transition from transport to operational mode.
• Hydraulic support cylinders - Facilitate quick rig setup and precise positioning for multi-angle drilling operations.
• Top drive power head - Compact design delivers superior mechanical transmission efficiency and operational reliability.
• Hydraulic clamp - Fast-acting with responsive operation, equipped with pressure loss protection for enhanced safety.
• Remote-controlled crawler tracks - Deliver high maneuverability, ensuring operator safety and comfortable control.
Product Introduction

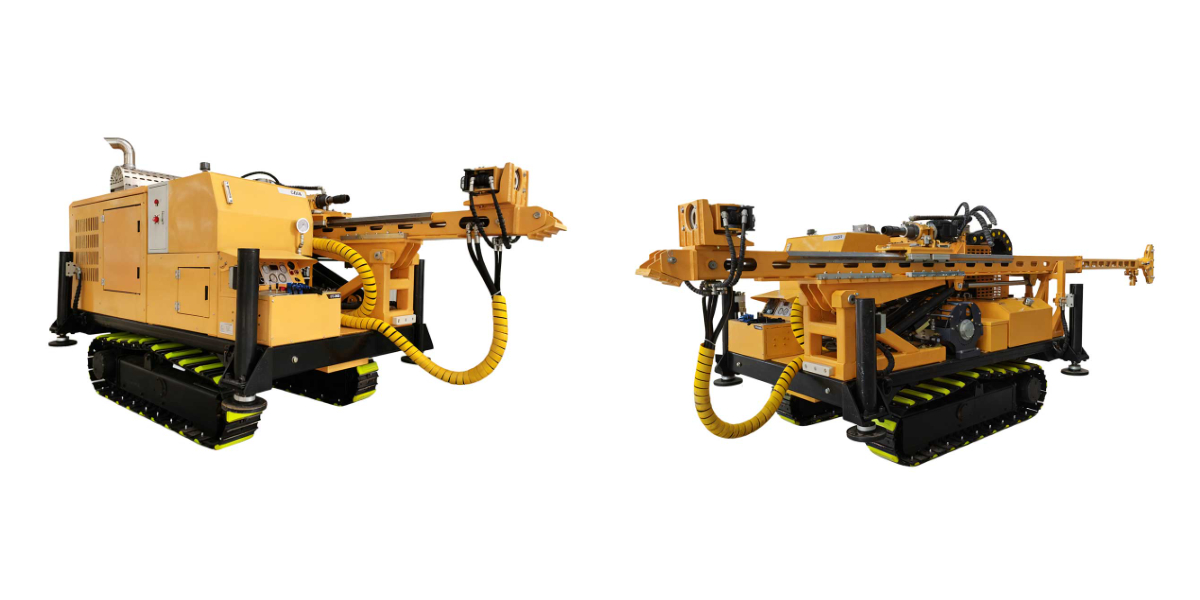

The CX600 Crawler-mounted core drilling rig serves as our firm’s flagship lightweight crawler-type core drilling rig. It boasts superb maneuverability and versatility, rendering it perfect for medium-to-deep borehole drilling tasks across a wide range of working conditions. This equipment delivers exceptional operational performance and high production efficiency.
Designed to meet international high-end product standards, this drilling rig integrates advanced integrated hydraulic control technology, along with industry-leading design concepts and precision manufacturing processes. Whether in terms of structural aesthetics, performance quality, or operational procedures, it embodies the exquisite craftsmanship characteristic of premium manufacturing.
Product Details

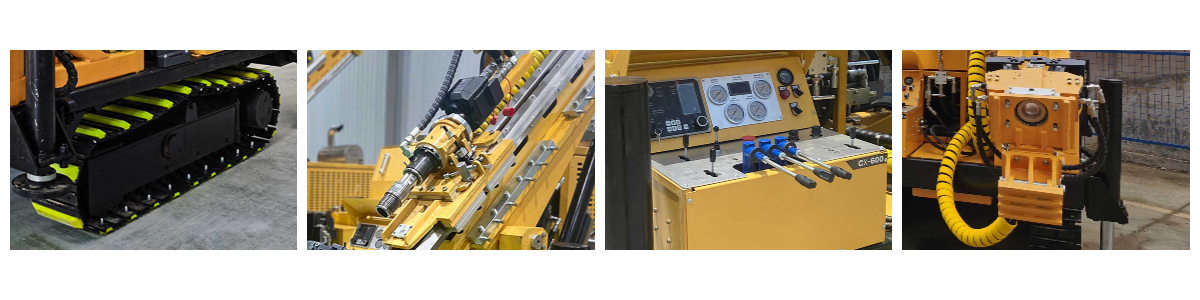

01. Undercarriage
Boasting excellent safety performance and superior climbing capacity, it is ideal for transfer and operation on muddy ground in mountainous regions.
02. Hydraulic motor
The drilling rig utilizes an inclined shaft plunger motor, featuring compact dimensions, shock-resistant properties, and an extended service life—significantly enhancing drilling efficiency.
03. Strong power
Equipped with full hydraulic drive, the system delivers high pressure and robust power output.
04. Convenient console
Offering user-friendly operation, intuitive and streamlined functions, this console is easy to master quickly.
Product Specifications
| Product Specifications | 6500 Kg |
| Drill Type | Top Drive |
| Depth Capacity（N） | 600 m |
| Diesel Engine Power | 97 KW |
| Feed Stroke | 2.5 m |
| Maximum Torque | 1800 Nm |
| Hoisting Force | 105 KN |
| Max Rod Diameter | 117 mm |
| Suitable Rod Sizes | 1.5m /2 m |
