Water And Air Drilling Rig
High efficiency- Adopt water and gas dual-use technology, suitable for different geological conditions, and improve drilling efficiency.
Stability-The structure is stable and the seismic performance is superior, which ensures the safety and stability of the drilling process.
Easy to operate- User-friendly design, simple operation and easy maintenance.
Energy-saving and environmentally friendly-Low energy consumption design to reduce environmental impact
Versatility- Water and gas dual-use, adapt to different geological conditions, strong flexibility.
Energy-efficient- Fast drilling, low energy consumption, economical and practical.
Product Introduction

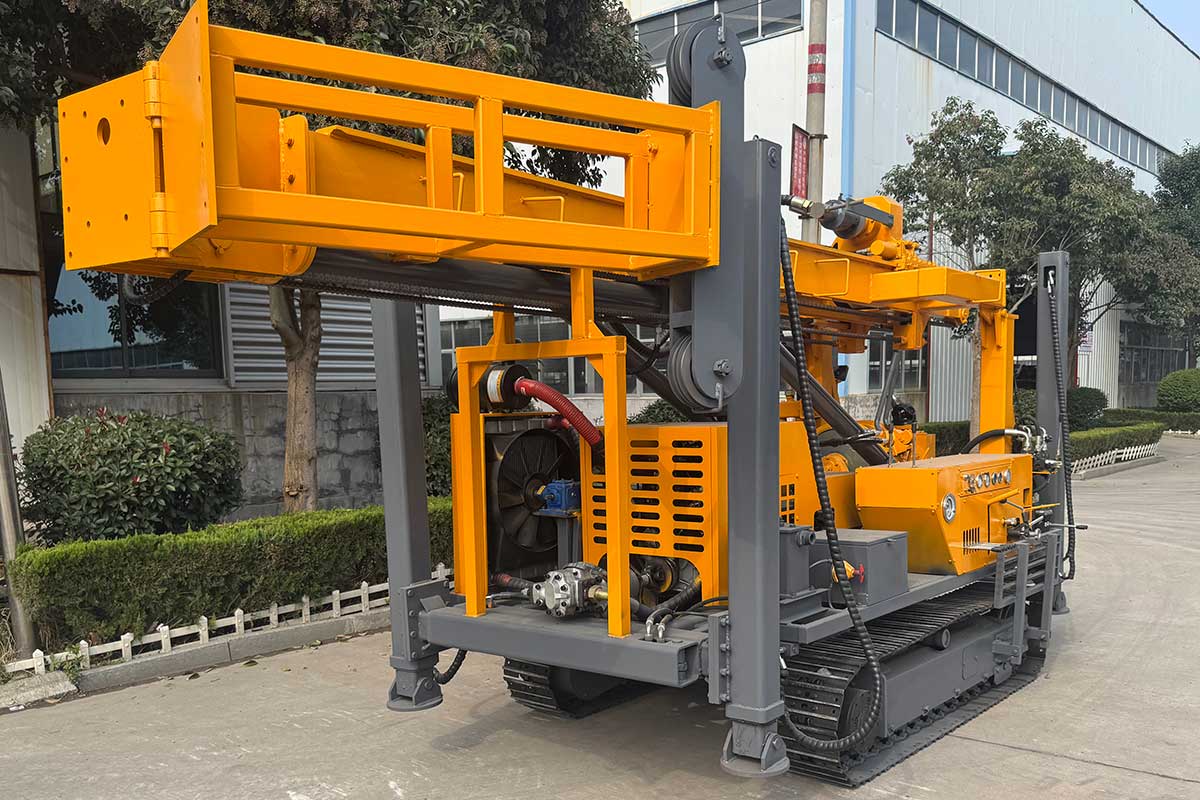

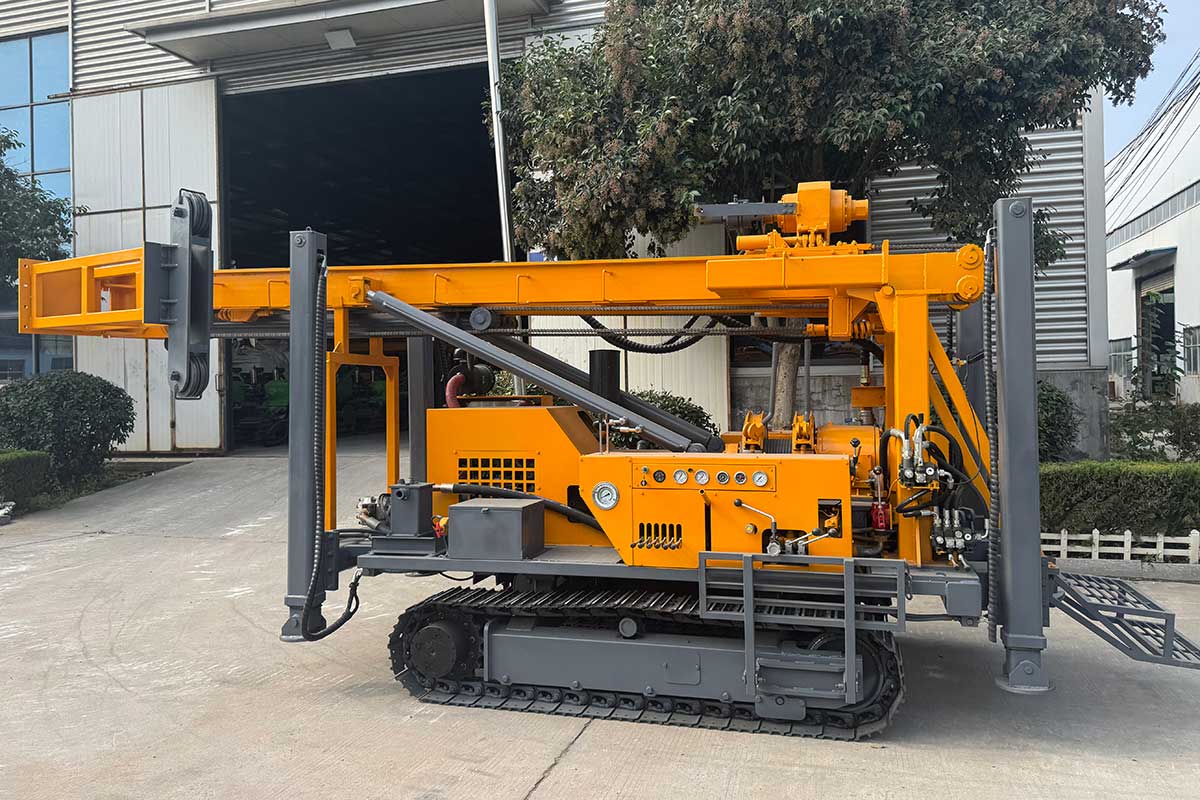

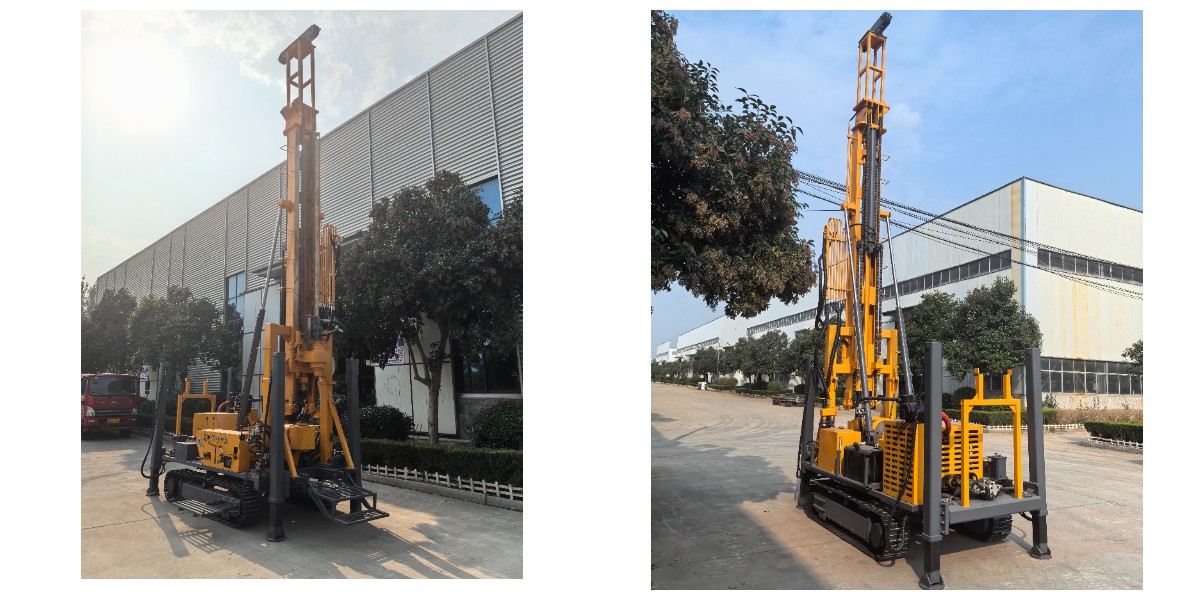

PQZ-350L mechanical top drive driling rig is a driling equipment independently developed by the company thatcan drill 90" and integrates the functions of water drill and air drill(National Invention Patent: 2L201510479602.4). it adopts5-speed manual car transmission. wide speed range, sensitive and convenient forward and reverse switching, hightransmission efficiency, greatly reduced power energy consumption, more efficient and energy-saving. lt solves the dificulty ofdriling with air down-the-hole hammers in soil lavers and the low construction efficiency of rotary driling rigs in hard rocklayers, gravel, and pebble layers.
Product Details

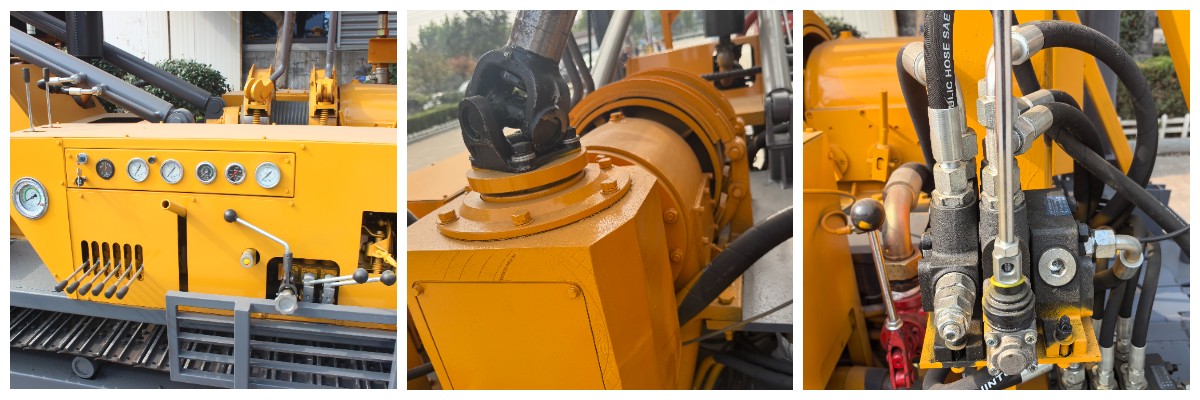

OPERATING SYSTEM
The uniquely designed operating table is compact and exquisitely made;PHC/IAM hydraulic pilot control, single handle multi-directional operation, comfortable aircraft feel, easy to control equipment movement.
POWER HEAD CHUCK
Through-hole chuck design, compact structure; HQ through-hole capacity, me-chanical clamping, hydraulic control opening, smooth, flexible and precise move-ment; unique external connection method is used to connect with the power head, which is convenient and quick to disassemble and repair.
OPERATING SYSTEM
The uniquely designed operating table is compact and exquisitely made;PHC/IAM hydraulic pilot control, single handle multi-directional operation, comfortable aircraft feel, easy to control equipment movement.
Product Specifications
Weight | 7000kg |
Dimension (transport) | 6300*2000*2600mm |
Dimension (working) | 3800*2400*7600mm |
Drilling angle | 75-90° |
Drilling depth for water well | 350m |
Wireline coring N size | 600m |
Borehole (drill bit) dia. | Φ75–220mm |
Drill head lifting force | 120kN |
Drill head feeding force | 85kN |
Rotary speed RPM | Forward: 27–901rpm / Reverse: 48–219rpm |
Max. Torque | 10500N.m |
Drill head feed stroke | 3500mm |
Drill pipe dia. | Φ60, Φ76, Φ89mm NQ/HQ/PQ |
Engine model | YN27GBZ |
Rated power/speed | 65kW/2400rpm |
Walking speed | 0–2km/h |
Climbing angle | 25–30° |
Mechanical winch capacity | 45kN |
Mud pump | BW160/BW200/BW250(Optional) |
Crawler chassis | Steel 400mm*40 Sections |
Crawler load | 8000kg |
Packaging & Shipping
Puhua Energy has a great deal of international trade business experience of the drilling machines and related spare parts. We are in good relationship with several famous shipping companies and airline companies, and can provide considerate shipping service and take care of related procedures in terms of customs, tax, insurance, and so on.
Company Strength

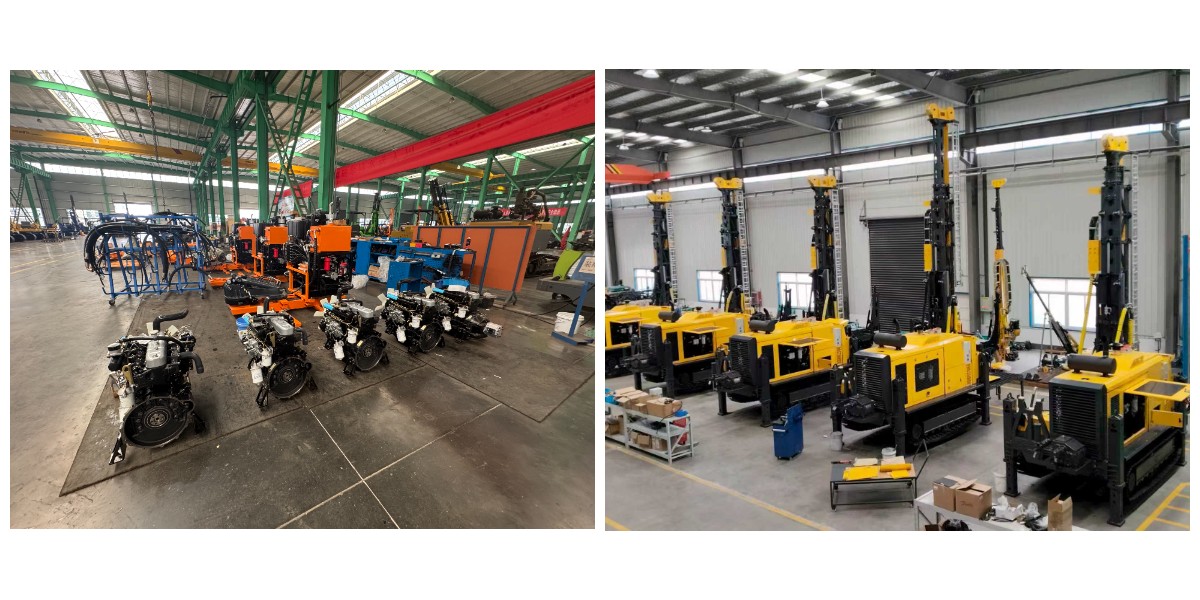

Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
The company collaborates with more than 30 major mining enterprises, including Shandong Energy, Yintai Gold, and Shandong Gold, and its products are exported to over 120 countries and regions. Certified under ISO9001 and supported by an overseas R&D center in Canada, Puhua’s equipment performs reliably across extreme environments—from high-altitude plateaus to dry desert regions. Known for its innovation, operational efficiency, and superior reliability, Puhua has earned a solid reputation as a trusted global partner in the energy and mining industries.
