Underground Core Drills Cheap Price
The UX series of drills employs intelligent and sensitive hydraulic technology, providing flexible and efficient operation with multiple industry-leading functions.
Equipped with the AMME’X™ iAM intelligent system, the drill can realise automated drilling, formation adaptation, parameter adjustment, as well as remote data monitoring and service.
· With powerful torque reserve and broad RPM range, the drill can effectively deal with various complex ground formations.
· The rig features a state-of-the-art rotation unit which is synchronized the rod holder for automated rod handling and enhanced safety.
· The drill’s positioner makes it possible to drill in any direction and the compact modularized design enables it to set up easily in limited spaces underground.
· The gas spring rod holder opens hydraulically and closes with gas pressure for increased safety.
Product Introduction

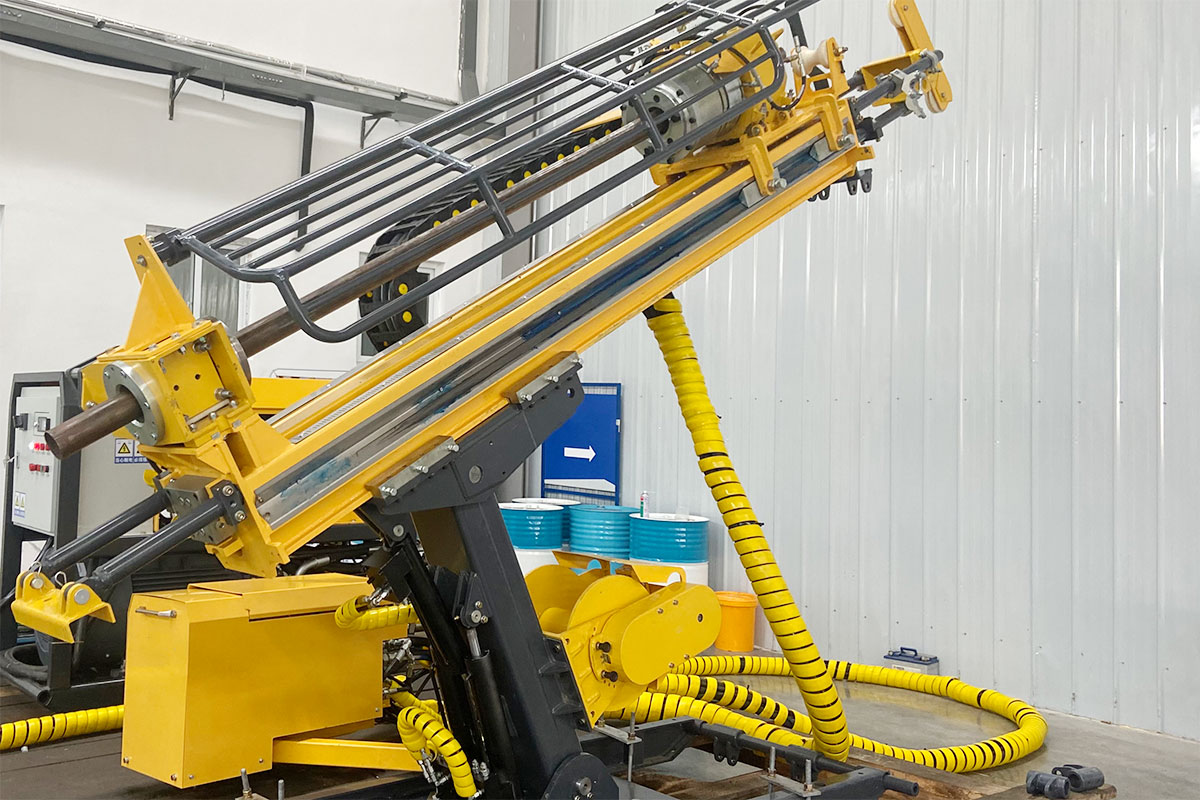

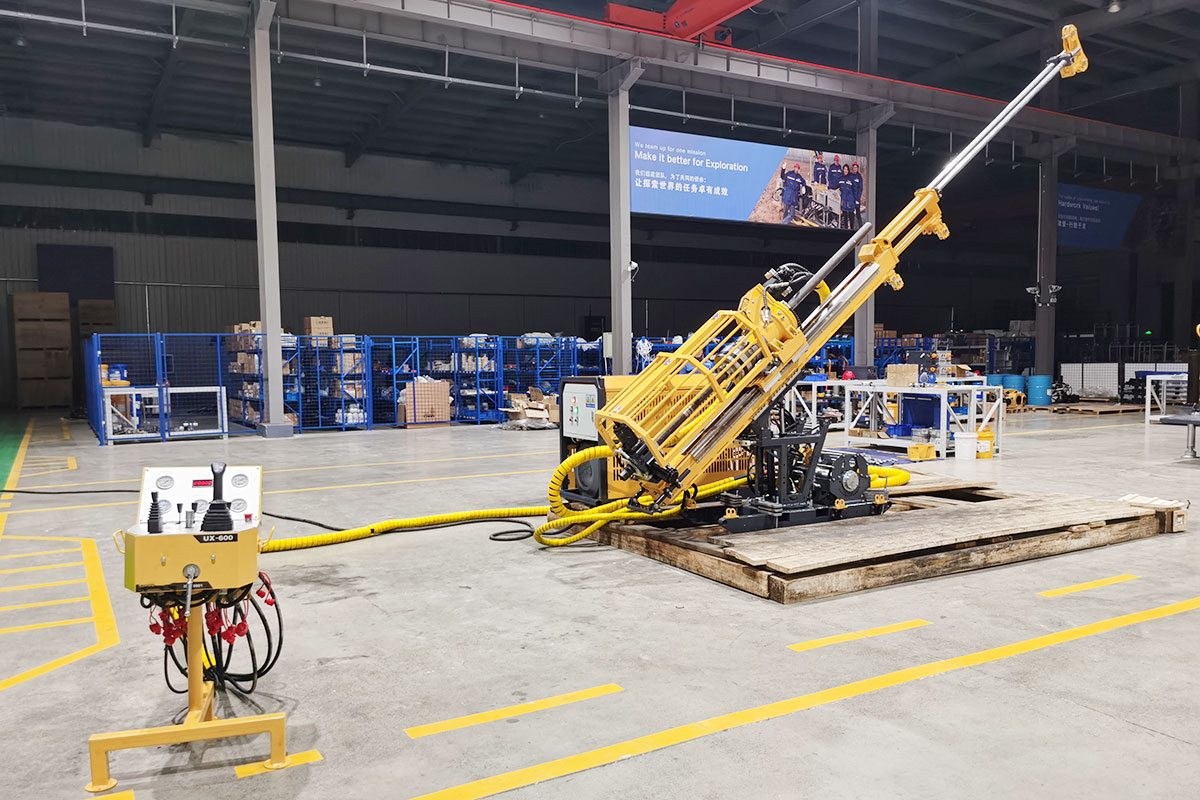

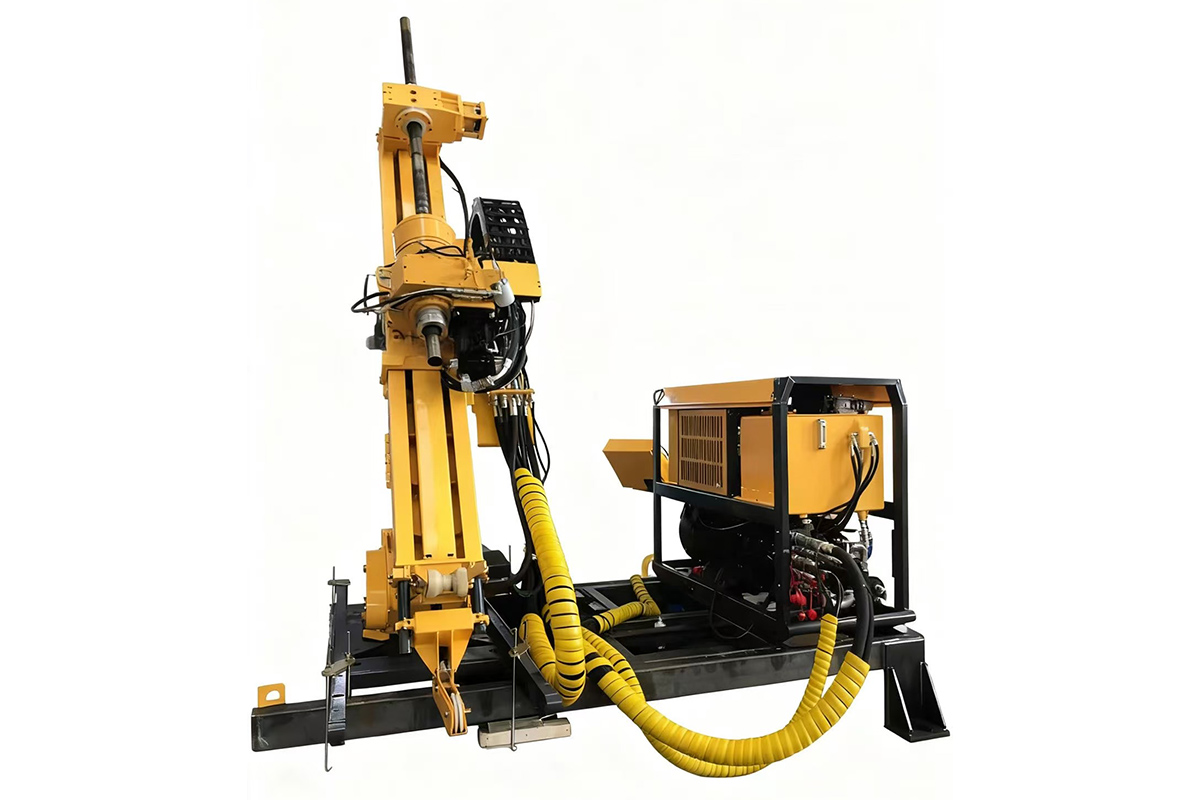

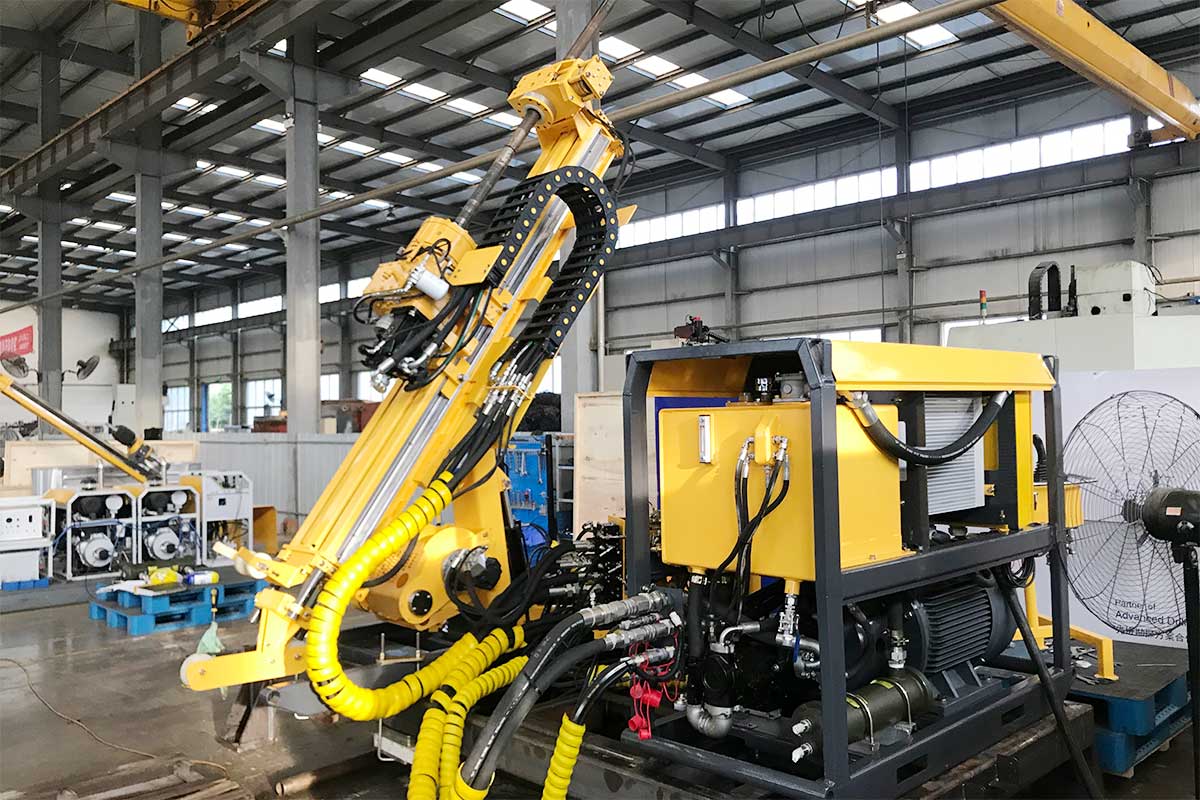

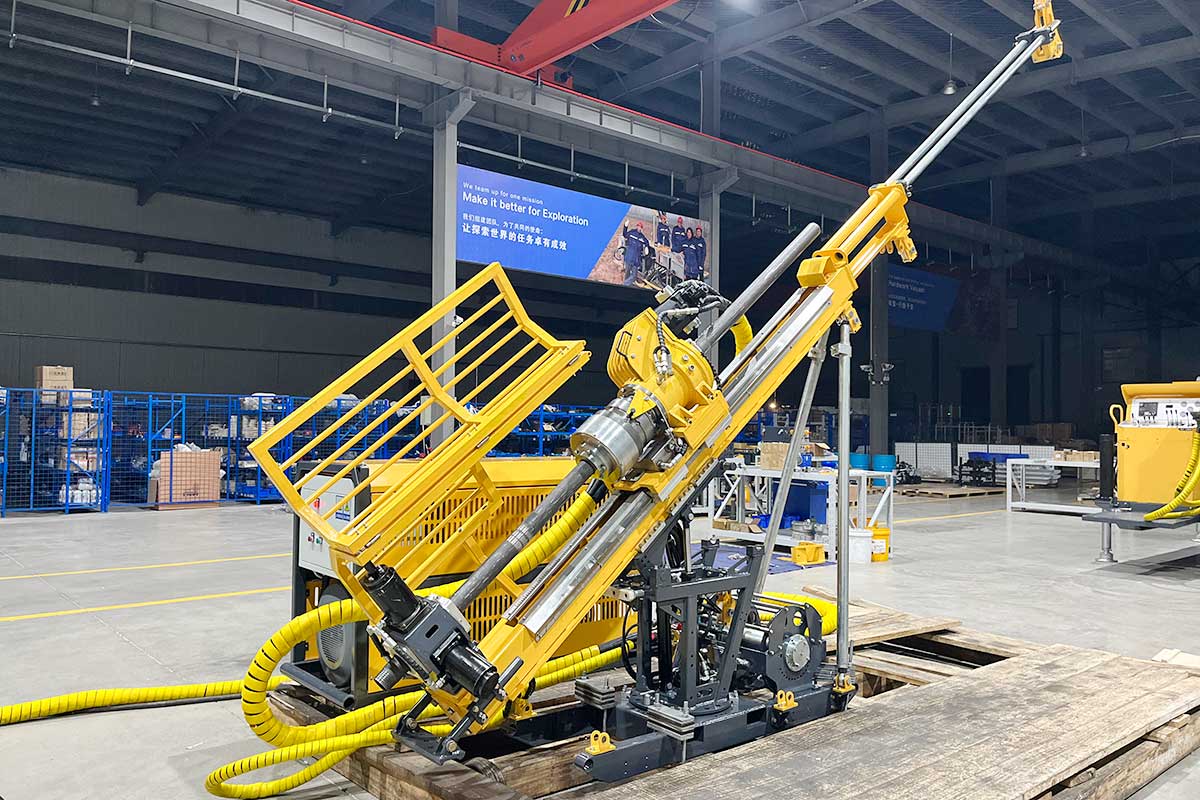

The UX1000 Series are underground type of coring drill rigs, capable of driling for both surface and underground applications.
The drillis compact and modular design with fiexible maneuverabilily for convenience to meet specific needs of operaling conditions.
With the use of a hydraulic-operated positioner and a fast calibrating turntable, the dnil is easy for set up and capable of driling holes in alangles. The unique positioning mechanism requires no moving of the wireline hoist, from vertically up to vertically down.
Equipped with a robust cyfinider-driven feed frame and a intemational brand power pack, this dnllprovides high pulback force, fast dinling fill
penetralion and quick rod- handling rate. The dnluses an electric motor (optional for diesel) to power the hydraulics on the machine.

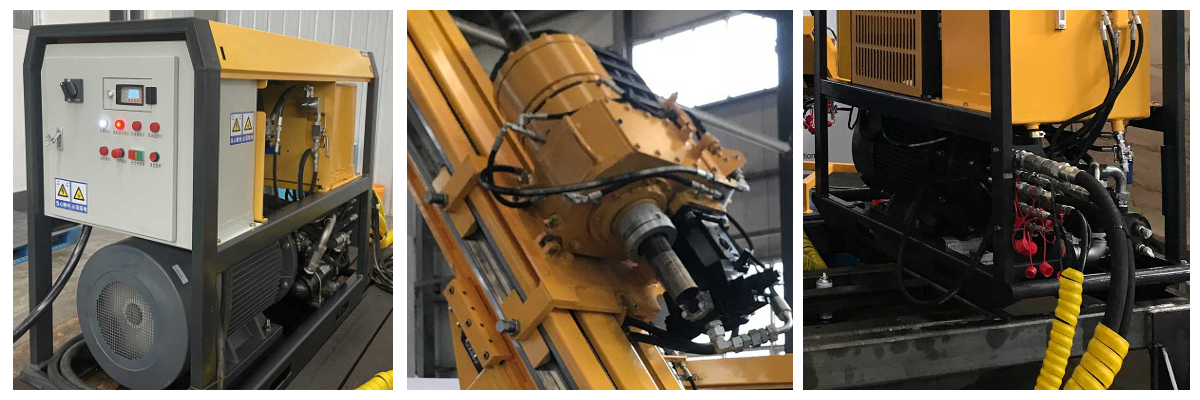

Product Details
EASY TO USE
The reasonable design of each gear's rotational speed
COMPACT STRUCTURE
The output torque of the drilling machine is large.
SYSTEM CONFIGURATION
The hydraulic system is capable of achieving adjustable feed pressure and speed.
AFTER-SALE WARRANTY
This drilling platform is small in size, light in weight and easy to disassemble.
Product Specifications
| Depth Capacity(B/N/H) | 1200/1000/620m |
| Power (Electric) | 90kw |
| Feed Stroke | 1.8m |
| Maximum Torque | 2250Nm |
| Hoisting Force | 89KN |
| Maximum Rod Diameter | 90mm |
| Suitable Rod Length | 1.5m/3m |
| Overall Weight (Reference ) | 2200kg |
| Handling Method | Handling Method |
Company Strength

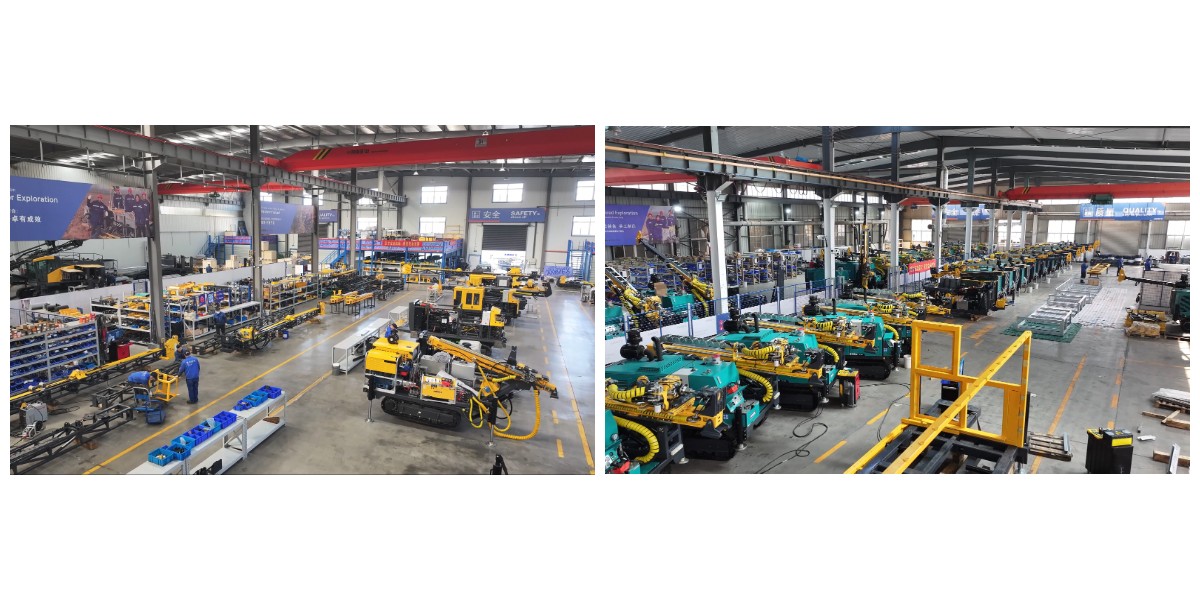

Puhua Energy Equipment Technology (Shandong) Co., Ltd., founded in 2003 in Jining, China, is a leading high-tech enterprise specializing in the research, development, and manufacturing of geological exploration equipment, intelligent mining systems, and new energy solutions. With strong R&D strength and advanced production technology, Puhua provides high-performance drilling rigs, intelligent underground transportation equipment, and customized engineering solutions for mining projects worldwide.
