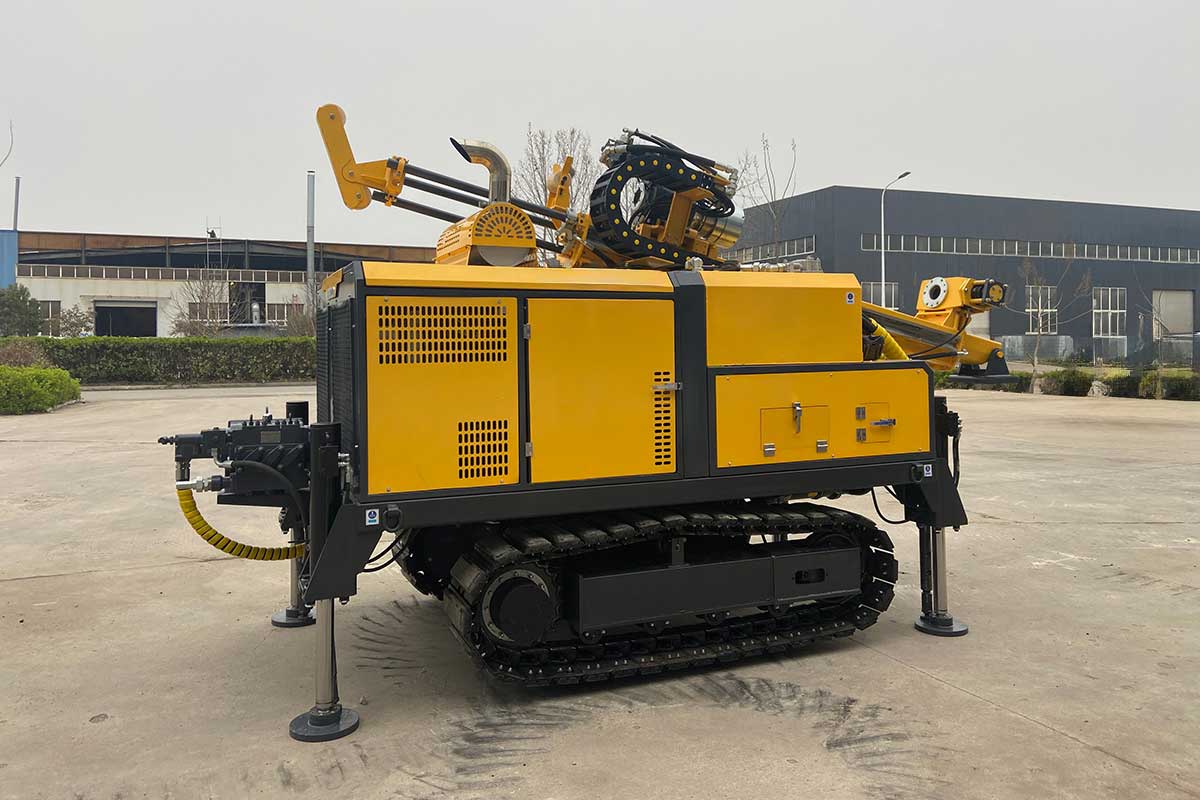

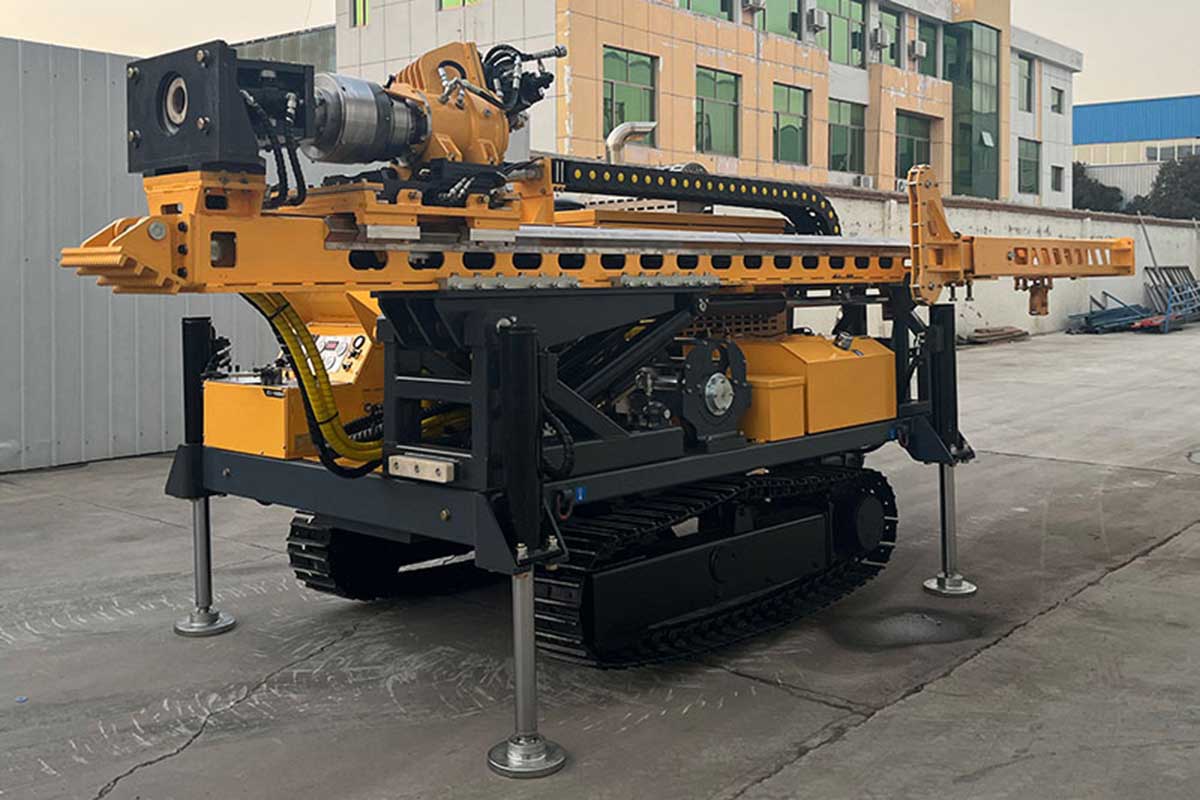

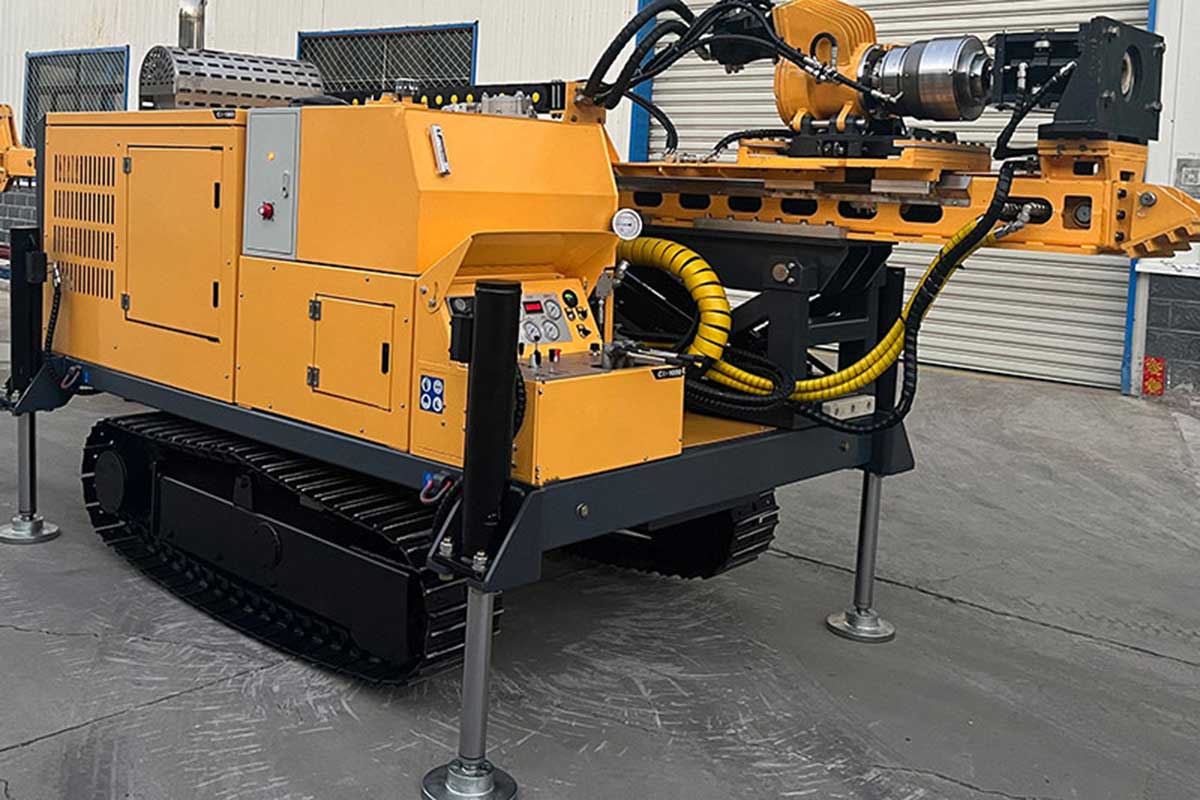

Cheapest Crawler Type Core Drilling Rig
◼ Canadian Christensen through-hole chuck power head with advanced performance, powerful torque, and convenient handling of 3m drill rods.
◼ Advanced hydraulic pilot control system (internationally advanced, industry-exclusive) enables intelligent constant-pressure drilling with precise control and flexible operation for effortless hole-making.
◼ Sliding feed beam rapidly contacts the working surface, enhancing operational stability.

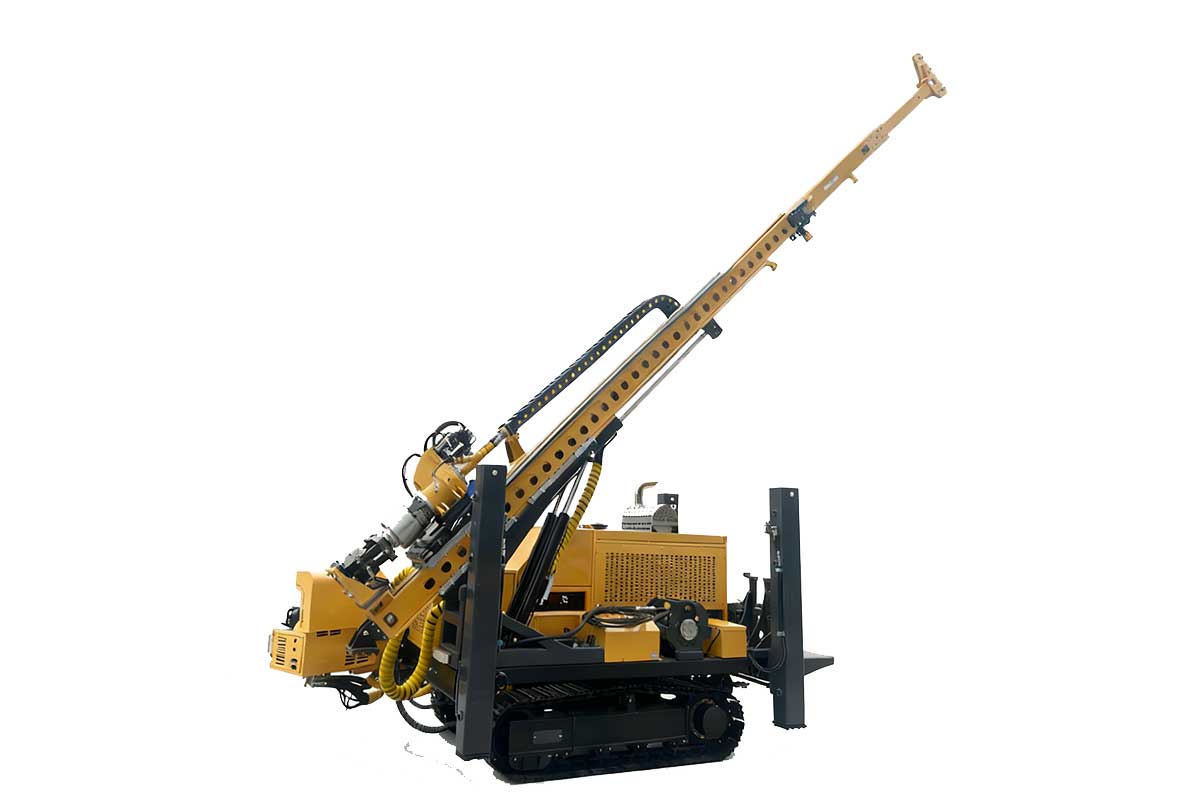

◼ Telescopic mast facilitates easy erection and flexible handling of long drill pipes and core drilling tools; hydraulic
leveling outriggers facilitate precise positioning adjustments.
◼ Nitrogen spring drill pipe clamps enable rapid pipe clamping, enhancing reliability and simplifying operations.
◼ Powerful drive system ensures high-efficiency drilling across diverse environments.
◼ Wireless remote control (optional) enhances driller mobility and flexibility.
Product Introduction
CX1000 series drilling rigs are equipped with sophisticated hydraulic control system, suitable for medium and deep hole surface core drilling, convenient and flexible operation, high productivity and wide range of applications. The medium shallow hole models are equipped with specially designed top drive power heads for flexibility and convenience. The medium and deep hole models are equipped with Christensen chuck powerheads, Funk gearboxes, and advanced technology nitrogen spring grippers for precise control and reliable operation. The models can be equipped with travelling tracks and wheeled chassis, which are suitable for relocating and transporting in different terrain conditions.
Product Details

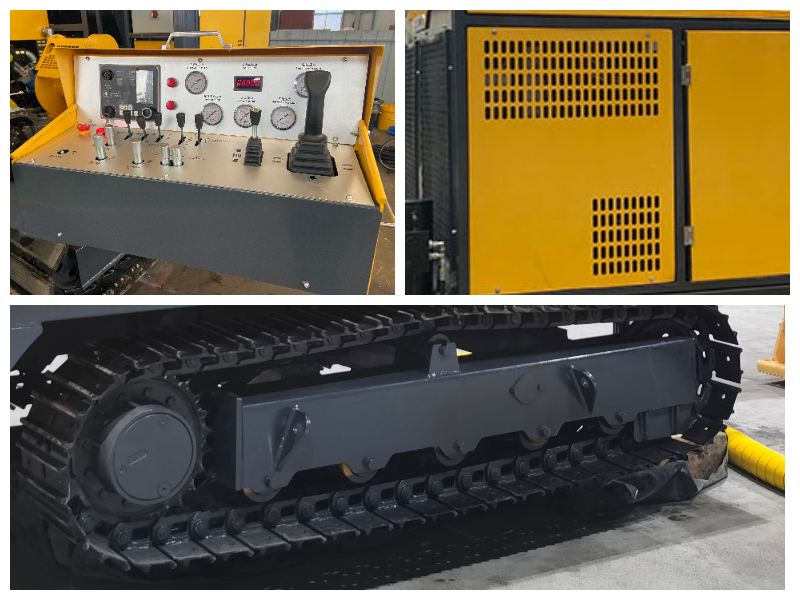

01.Centralized Console
The instrument panel, indicator lights, operating leversand buttons are integrated in the console, whichgreatly improves the operating efficiency and safety.
02.Flexible Variable Motor
The variable motor can achieve stepless adjustment ofthe output speed by changing its own displacement,and can also keep the output torque constant within acertain range, making the power of the hydraulicsystem can be easonably matched.
03.Better heat dissipation and more stable
The self-developed high-performance radiator with fin-type heat dissipation structure, by increasing theheat dissipation area and combines forced air cooling, water cooling and oil cooling to guickly dissipateheat.
Product Specifications
| Depth Capacity(N) | 1000m |
| Diesel Engine Power | 140kw |
| Feed Stroke | 2.5m |
| Maximum Torque | 2400Nm |
| Hoisting Force | 115KN |
| Max Rod Diameter | 117mm |
| Suitable Rod Sizes | 1.5m/2m |
| Overall Weight | 8500kg |
Features of core drilling rig machine
1. Utilizing Hollow Drill String Systems The core components are the core barrel and diamond core bit. The bit features a ring-shaped structure, with the preserved cylindrical rock at its center forming the core, which is then transported and stored within the core barrel.
2. Multiple Power and Drive Configurations Depending on the application, these can range from large fully hydraulic powerhead rigs (for deep-hole mineral exploration) to compact electric or hydraulic handheld drills (for construction site sampling).
3. Typically Requires Circulating Fluid During drilling, fluid (water, mud, or air) is pumped through the drill string to cool the bit, flush away rock cuttings, and facilitate core entry into the tube. This is critical for bit protection and ensuring core quality.
