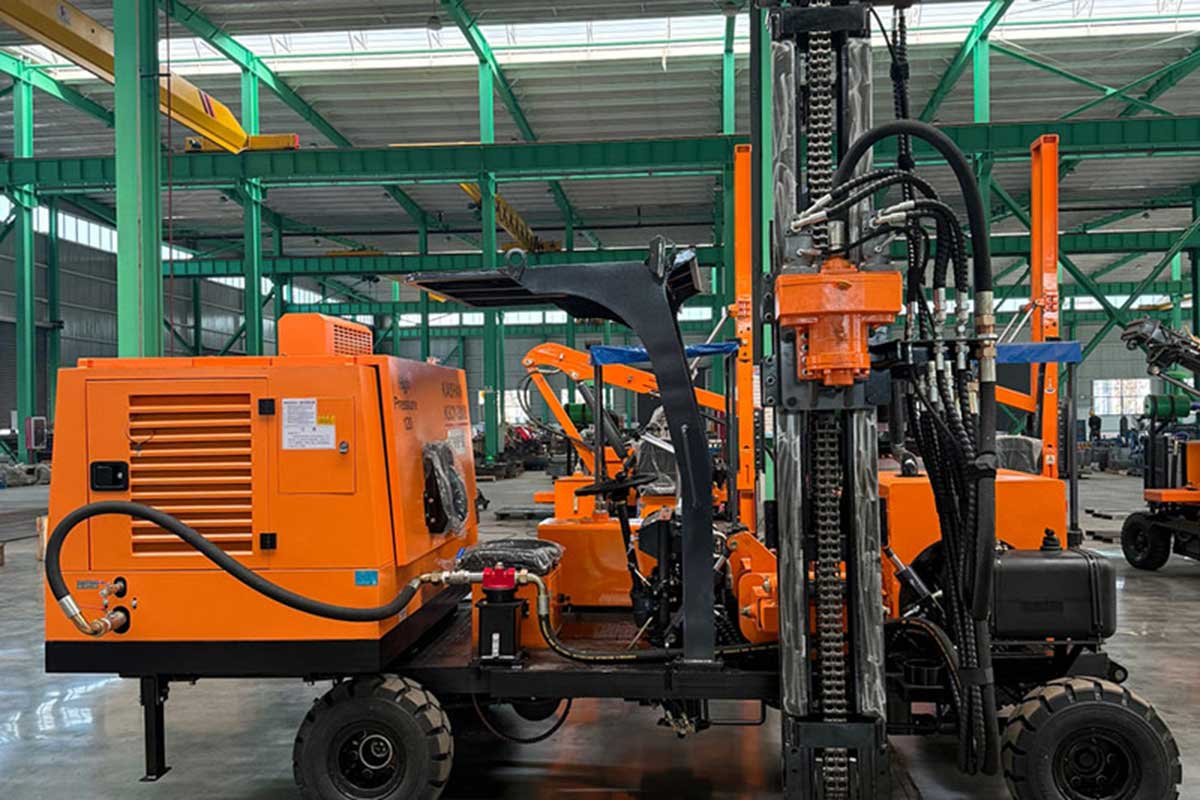

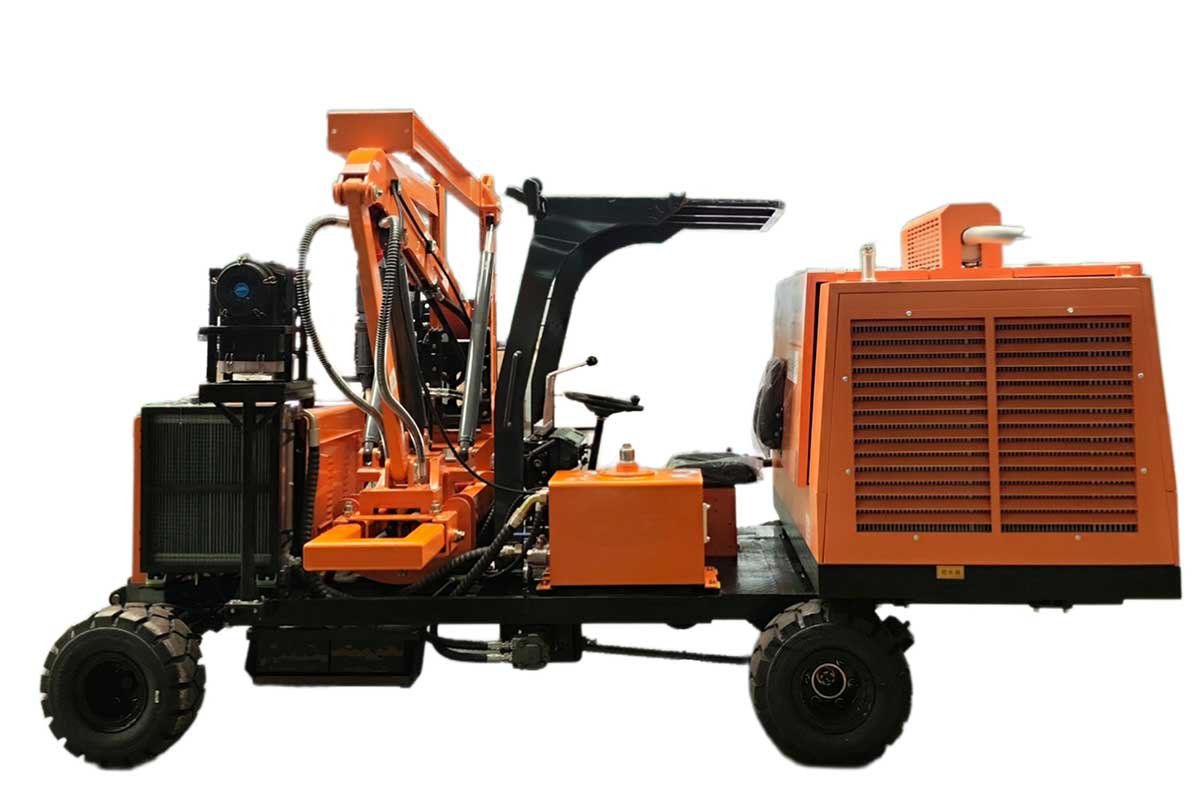

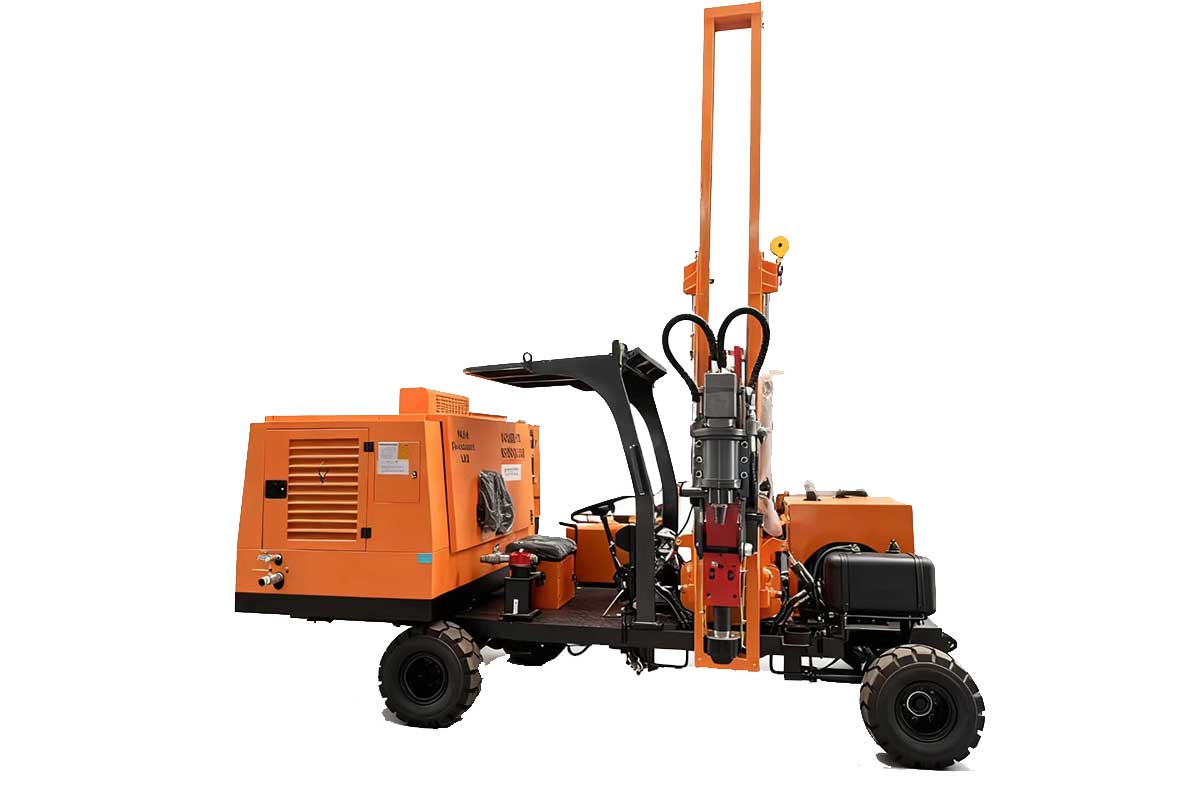

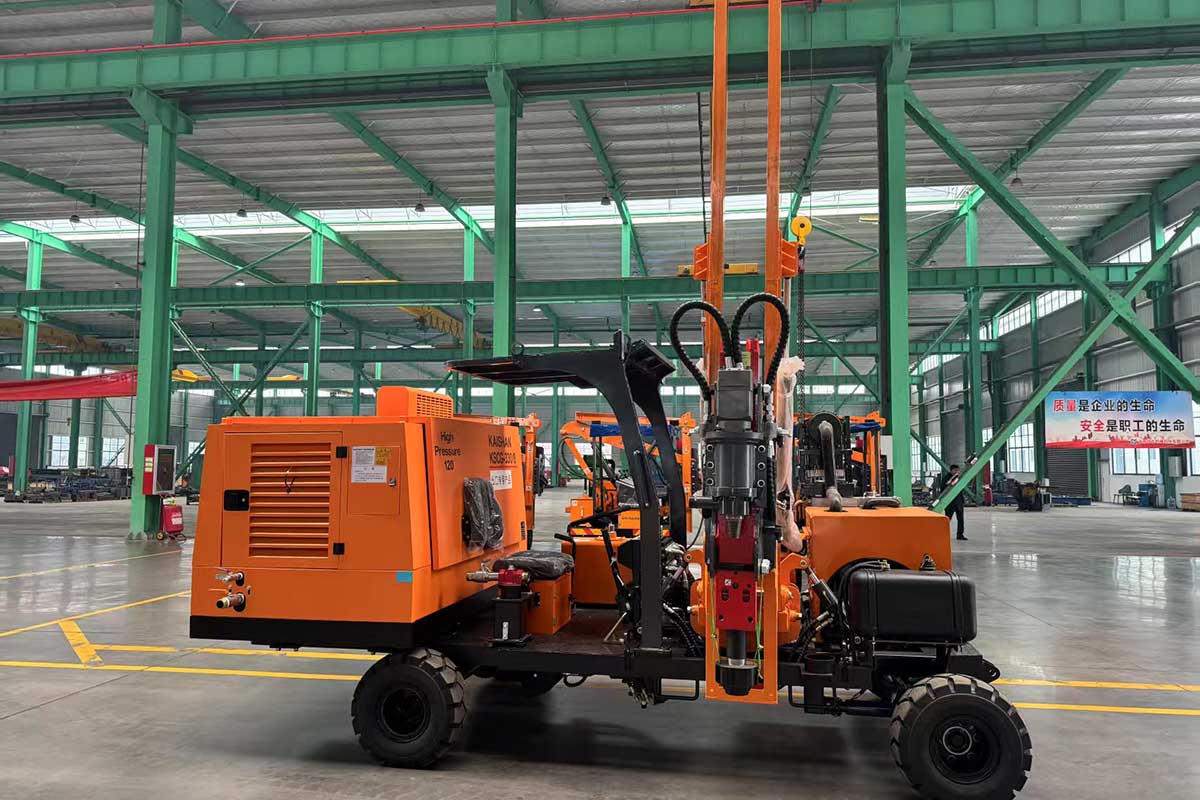

Drilling Highway Guardrail Pile Driver

The PH390T fully hydraulic highway guardrail pile driver is a new-type, highly energy-saving and eco-friendly pile driving equipment independently developed and manufactured by our company's technical R&D engineers and on-site service technicians. Based on practical experience in various working conditions, it has undergone constant R&D and upgrades. When installing highway guardrails in complex soil layers, it fully demonstrates its high quality, high efficiency, high energy conservation, and long service life. Our Quality Control Department implements strict testing procedures and standards, providing first-class quality assurance for our products. The PH series pile drivers have become one of the nationally trusted brands in China, serving as core flagship equipment in highway guardrail installation projects across the country. The PH390 hydraulic guardrail pile driver stands out with precise pile positioning, fast mobility, high accuracy, long service life, fuel economy, and environmental friendliness. It is the next-generation equipment for highway guardrail installations.

01. Inner Frame

The inner frame can support horizontal extension of 450 mm; additionally, the entire support can be angle-adjusted in all directions (front, back, left, and right) to satisfy construction requirements.

02. Mast

The vertical guide rail reaches a height of 3.95 m and can accommodate piles under 3 m. By replacing the hydraulic hammer with a rotary head, it can enable drilling to a maximum depth of 2.2 m.

03. Wheel Spacing

A 2-meter extra-wide wheel track delivers stronger stability for the machine's operation and movement; furthermore, the rear wheels come with real air brakes, which boast stable and reliable braking performance.

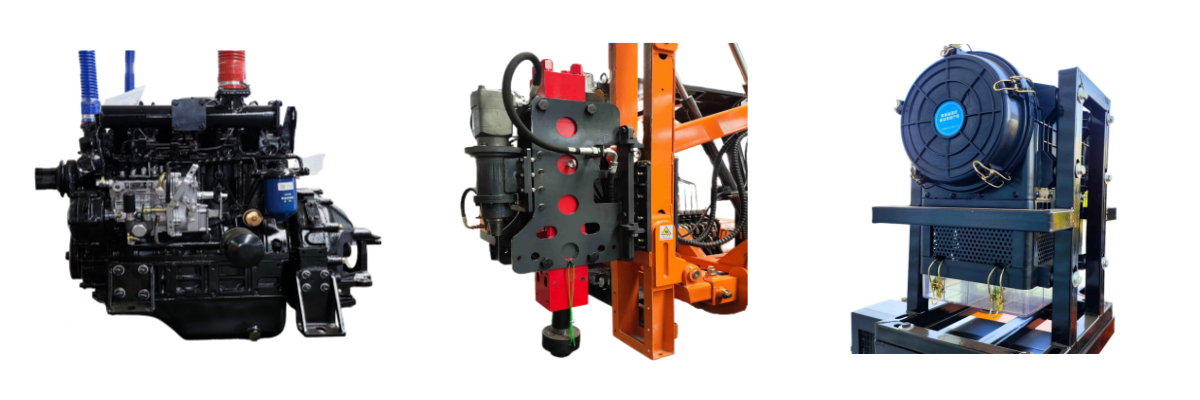

04. Engine

It comes with a Changchai 490B four-cylinder diesel engine featuring 39 KW power and 52 horsepower. The engine boasts robust power, and diesel fuel offers better economy. (The engine supports customization)

05. Working Accessory

Comes with a hydraulic hammer and a rotary head at the same time, enabling the machine to carry out tasks such as pile driving, pulling and drilling without dismounting or swapping the attachments.

06. Air Filter

Drilling work produces a large amount of dust, yet this drilling rig can operate stably for a long time. This is because, in view of its special working conditions, the equipment is specially fitted with a cyclone dust removal air filter, which can effectively tackle dust pollution and ensure a clean operating environment for the equipment.

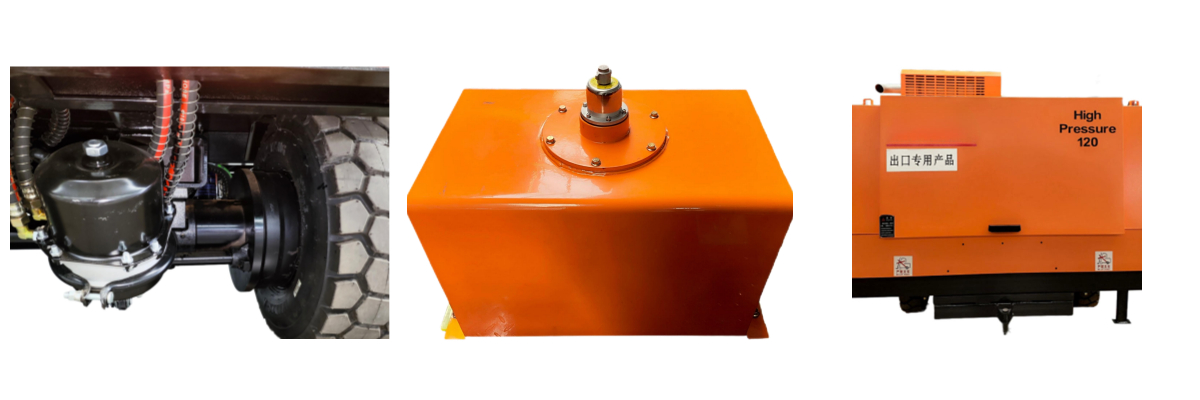

07. Air Cut Brake

The rear wheel brake uses a real air cut brake and is fitted with two air pumps; the air cut brake has strong braking force, offering higher safety performance for the entire vehicle.

08. Hydraulic Oil Tank

With a capacity of 80 L, the hydraulic oil tank adopts a breather valve, which can maintain the cleanliness of hydraulic oil and keep the internal pressure of the hydraulic oil tank stable, greatly enhancing safety.

09. Air Compressor

This integrated wheeled guardrail drilling machine comes with an 8-bar air compressor, which can tackle most drilling tasks. (The air compressor can also be customized.)

The product is packaged securely to ensure safe and reliable delivery. Each unit is carefully wrapped in moisture-proof and anti-corrosion materials, with key components reinforced and secured inside a customized steel frame or wooden crate to prevent vibration and impact during transportation. All hydraulic and electronic parts are sealed to avoid dust and water penetration.

Prior to shipment, the machine undergoes strict inspection and testing, ensuring it is fully functional upon arrival. According to customer requirements and destinations, transportation can be arranged via container, flatbed truck, or bulk cargo, with clear labeling and documentation for smooth customs clearance. This professional packaging and logistics process ensures that the loader reaches global customers in perfect condition, ready for immediate operation.
