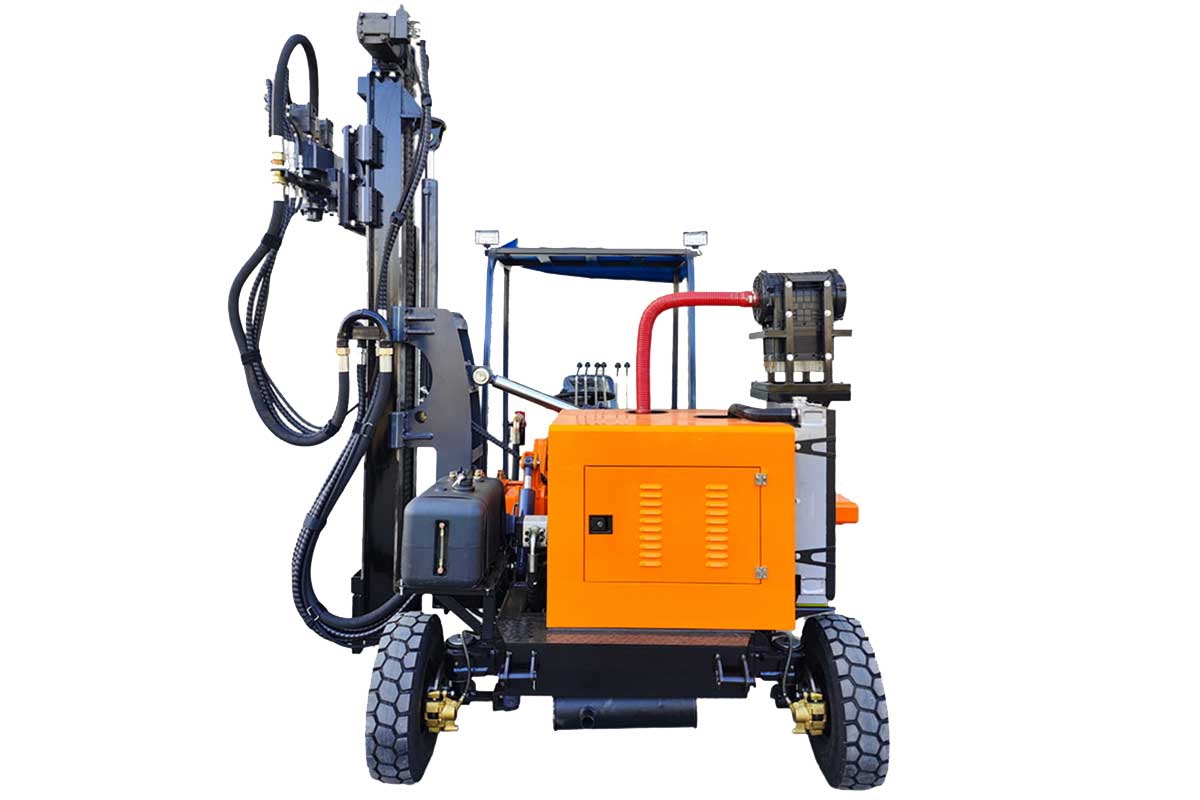

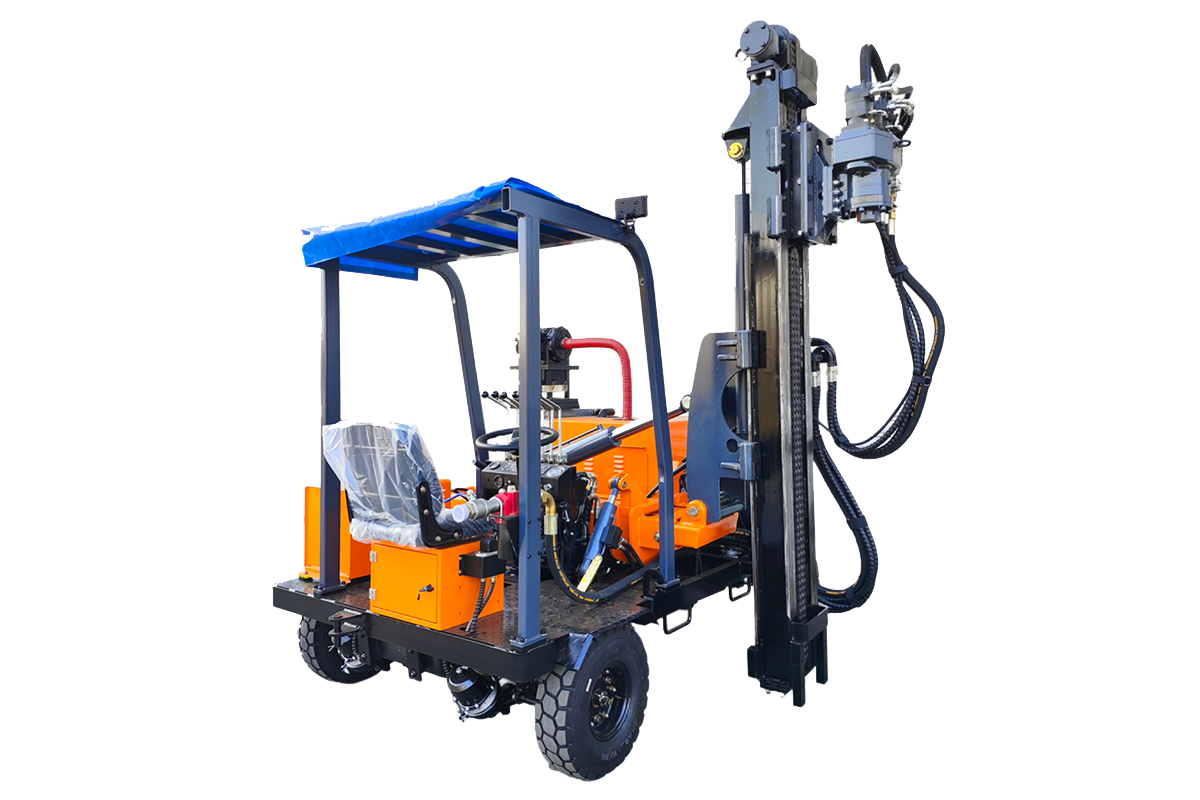

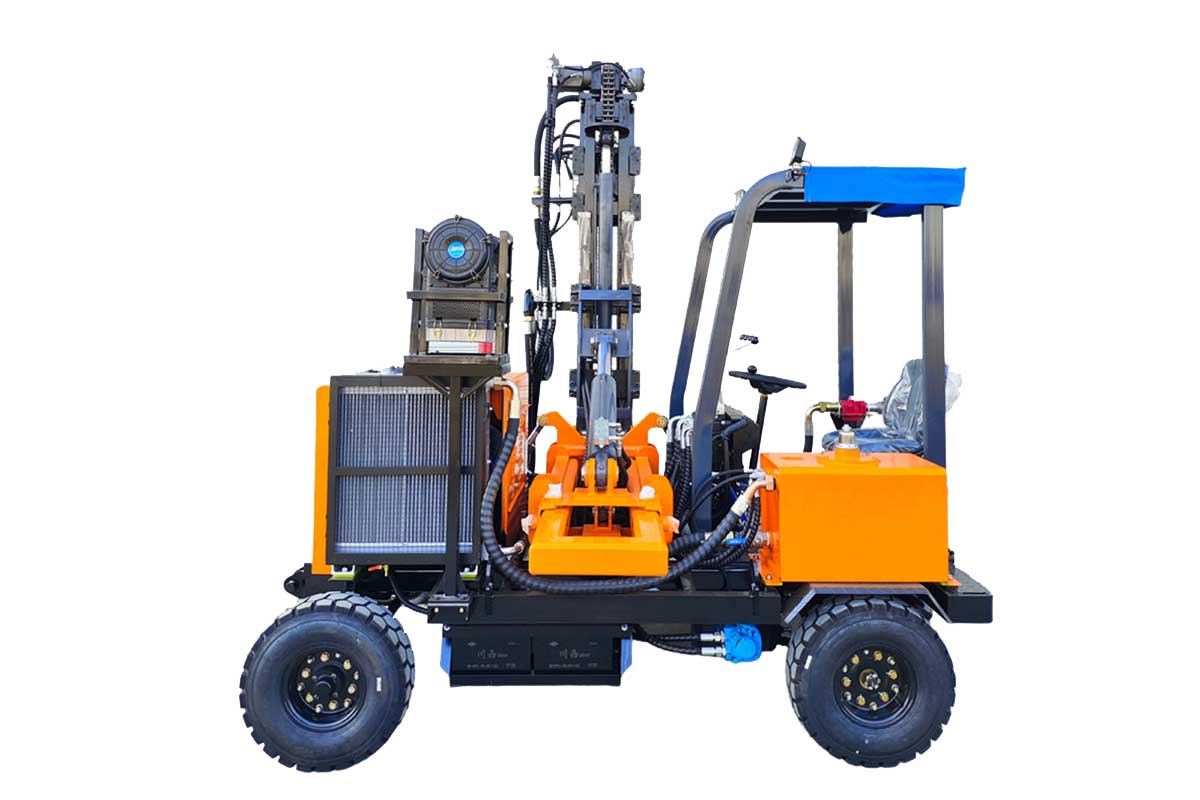

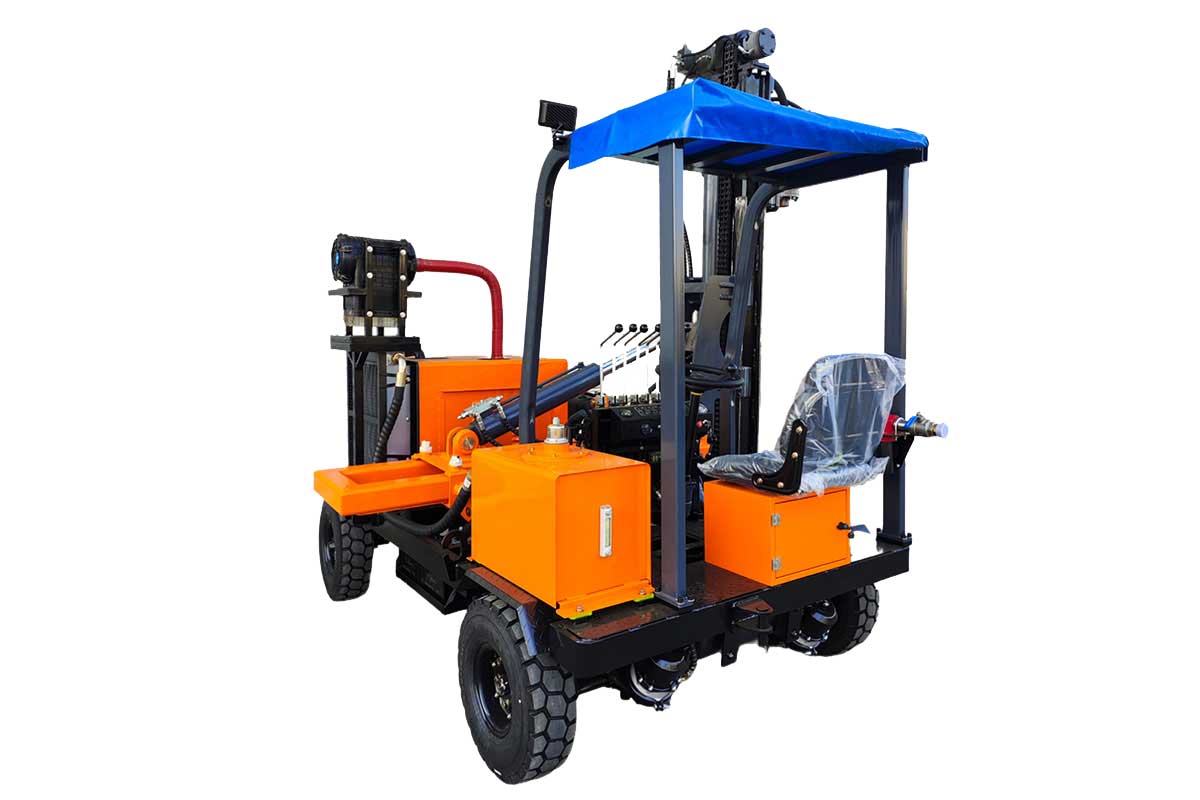

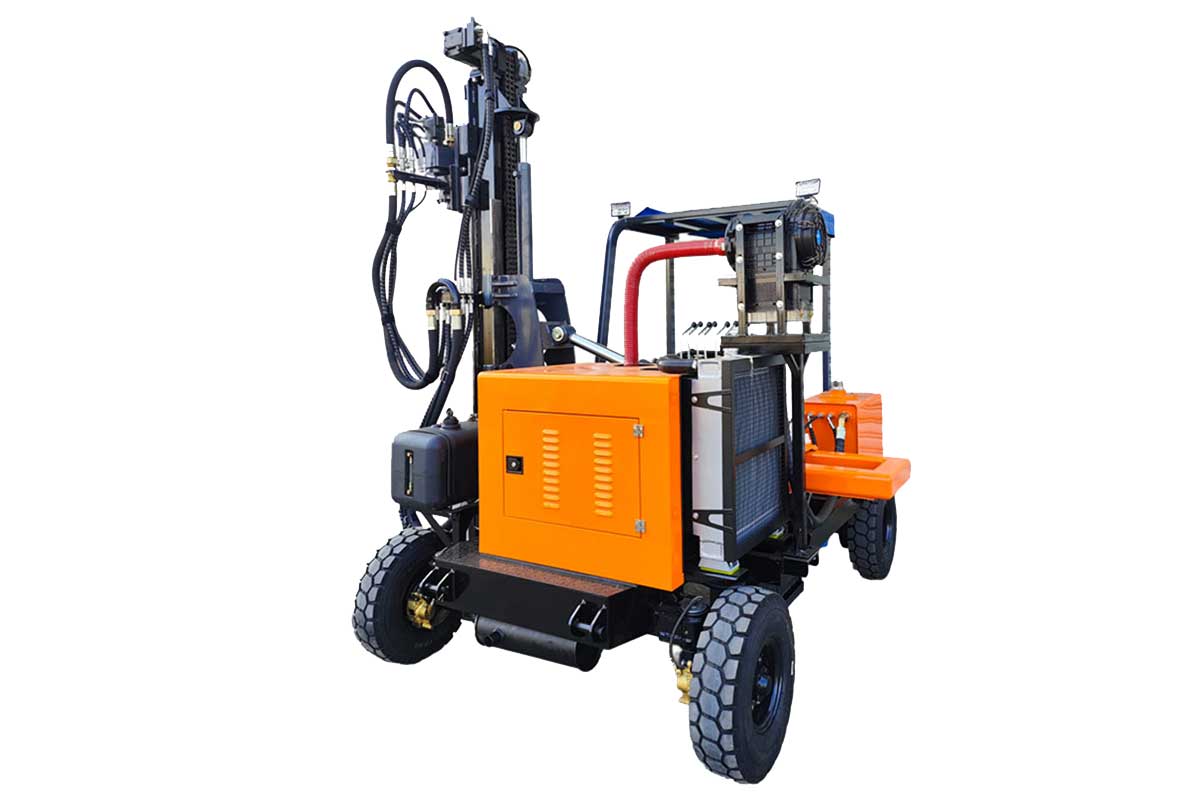

Wheeled Highway Guardrail Drilling Machine
A guardrail drilling machine with powerful drilling performance, which can drill over guardrails and efficiently complete a variety of drilling tasks.
1.It has a special structure and long service life
2.Equipped with angle digital indicator to adjust angle quickly.
3.Guard rail vertical to the ground when pilling ,can most reduce the effect of vibration on pile perpendicularity.
4.Guide rail equipped with double-row chain makes machine high safety coefficient.
5.High control accuracy of operation valve ,Easy and smooth.
Product Introduction
The PH530 fully hydraulic pile driver for highway guardrails is a new, highly energy-efficient and environmentally friendly pile driving equipment developed and produced by our company's technical R&D engineers and field service technicians. Based on practical experience in various working conditions, it has undergone continuous research, development, and updates. During the installation of highway guardrails in complex soil layers, it fully demonstrates its high quality, high efficiency, high energy savings, and long service life. Our Quality Control Department enforces rigorous testing protocols and standards, providing first-class quality assurance for our products. The PH series pile drivers have become one of China's nationally trusted brands, serving as essential flagship equipment in highway guardrail installation projects nationwide. The PH390 hydraulic guardrail pile driver excels with precise pile positioning, rapid mobility, high accuracy, extended service life, fuel efficiency, and environmental friendliness. It represents the next generation of equipment for highway guardrail installations.

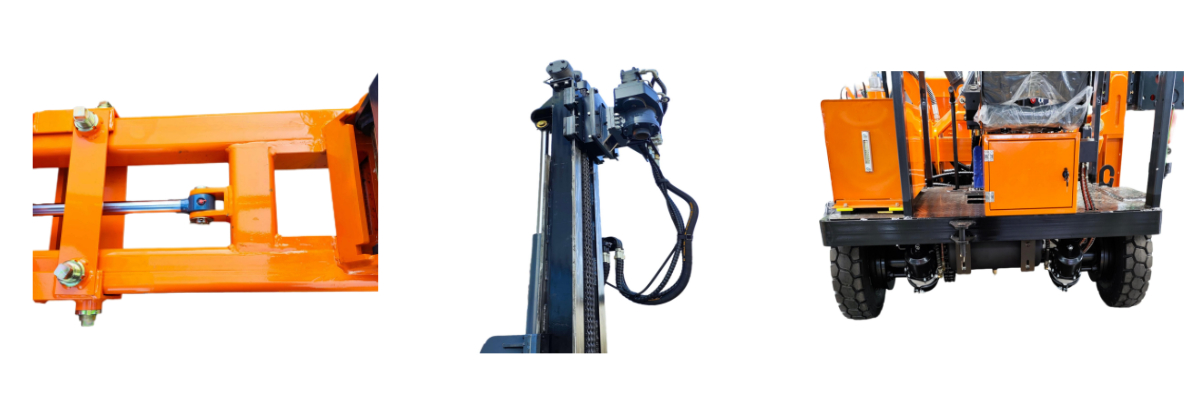

01. Inner Frame
The inner frame supports a horizontal extension of 480 mm. Additionally, the entire support can be angle-adjusted in all directions (front, back, left, and right) to satisfy construction requirements.
02. Mast
The mast reaches a height of up to 3.5 meters, with a maximum drilling depth of 2.2 meters. By elevating the oil cylinder, this drilling machine can easily cross guardrails for drilling operations.
03. Wheel Spacing
A 1.78-meter widened wheel track delivers enhanced stability for its operation and movement. Furthermore, the rear wheels come with real air brakes that offer stable and reliable braking performance.

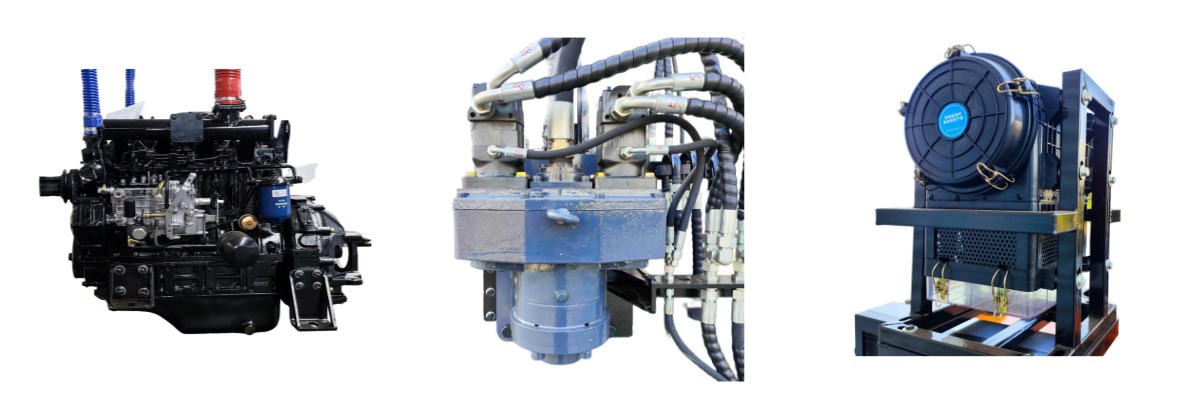

04. Engine
Comes with a Changchai 490B four-cylinder diesel engine featuring 39 KW power and 52 horsepower. The engine boasts robust power, and diesel fuel is more economical, capable of providing reliable power support for drilling operations. (The engine supports customization)
05. Rotary Head
It has a torque of 3000Nm, enabling it to handle most road drilling tasks. Besides, it can be fitted with other types of rotary heads, such as those with torques of 4000 N.m and 12000 N.m.
06. Air Filter
Drilling operations produce a large amount of dust, but this drilling rig can maintain stable operation for an extended period. This is because, considering its special working environment, the equipment is specially equipped with a cyclone dust removal air filter, which can effectively tackle dust pollution and ensure a clean operating environment for the equipment.
07. Hydraulic Oil Tank
Capacity: 80 L. A breather valve is adopted on the hydraulic oil tank, which can maintain the cleanliness of hydraulic oil and keep the internal pressure of the hydraulic oil tank stable, greatly enhancing safety. Meanwhile, it can prevent the emulsification of hydraulic oil and extend the service life of hydraulic oil.
08. Oil Atomizer
The oil atomizer can provide continuous lubrication for the impactor, ensuring the normal operation of the equipment and enhancing the service life and work efficiency of the equipment.
09. Toolbox
There is a locked toolbox under the seat, which is extremely convenient. It can hold items such as grease, grease gun, screwdriver, wrench and other necessities for the daily maintenance of the drilling machine.
Product Specifications
| Drilling depth | mm | 2200 |
| Drilling diameter | mm | Ф155，180，185，200，230+ |
| Work dimensions (L xW x H) | mm | 2950*2680*2500 |
| Transport dimensions(LxWx H） | mm | 2950*2680*3700 |
| Operating weight | kg | 2900 |
| Rated power | kw | ≥38 |
| Gear pump flow | ml/r | 40-50 |
| Hydraulic system pressure | bar | 200-250 |
| Hydraulic system flow | ml/r | 63-80 |
| Torgue of walking motor | Nm | 1185-1450 |
| Walking speed | Km/h | 5-19 |
| Traction speed | Km/h | ≤30 |
| Torgue of hydraulic motor | Nm | 530+Variable speed |
| Rotational speed of double hydraulic motors | r/min | 400/500+ |
| Hydraulic oil tank capacity | L | 80 |
| Fuel tank capacity | L | 56 |
Application field:
1. Highway guardrail drilling.
2. Drilling in various other sites (such as farms, pastures, orchards, carports, etc.)
Packaging & Shipping
The product is securely packed to ensure safe and reliable delivery. Each unit is carefully wrapped with moisture-proof and corrosion-resistant materials, with key components reinforced and fixed inside a customized steel frame or wooden crate to prevent vibration and impact during transit. All hydraulic and electronic parts are sealed to avoid dust and water ingress.
Before shipment, the machine undergoes strict inspection and testing, ensuring it is fully functional upon arrival. Depending on customer requirements and destination, transportation can be arranged by container, flatbed truck, or bulk cargo, with clear labeling and documentation for smooth customs clearance. This professional packaging and logistics process guarantees that the loader reaches global customers in perfect condition, ready for immediate operation.
